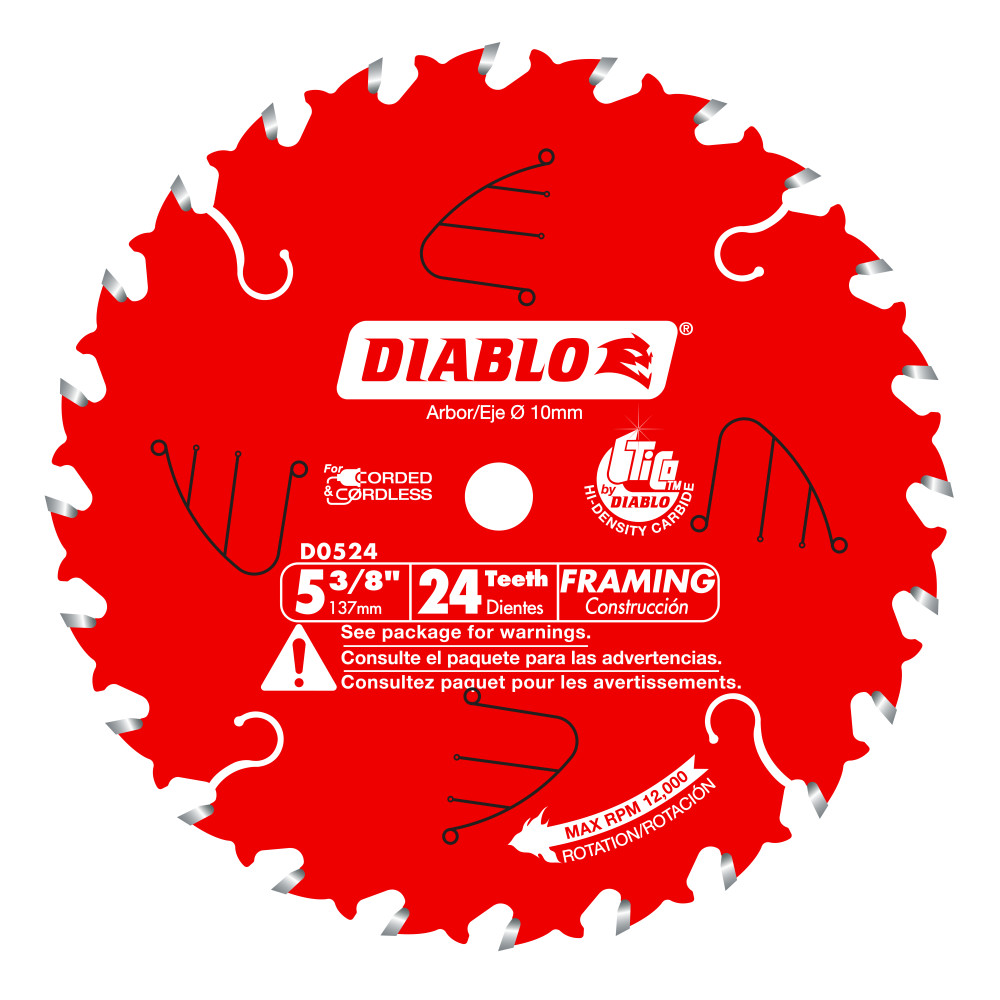

The Diablo 5-3/8" x 24-Teeth Framing Saw Blade for Wood is engineered for demanding general construction work, delivering fast and accurate ripping and crosscutting through a wide range of wood materials. Designed for use with trim saws, this Diablo circular saw blade handles rough framing lumber, finish lumber, plywood, OSB, laminated beams, pressure treated wood, and hardboard siding with equal confidence. Its thin kerf design draws less power from the saw, giving users better control on every cut - making it a reliable choice for framing crews, finish carpenters, and contractors who need consistent performance throughout a long workday.

Key Features

• TiCo Hi-Density carbide tips specifically engineered for each cutting application - delivers maximum cutting life so the blade stays sharp through extended framing work without frequent replacement
• Super thin laser-cut kerf at.049" - removes less material per pass, reducing resistance and allowing faster, cleaner cuts with less strain on the saw motor
• Laser-cut stabilizer vents trap noise and vibration, keeping the blade cool during continuous use and reducing the risk of blade warp that can cause inaccurate cuts
• Non-stick Perma-Shield Coating on the blade plate - resists gumming from resin-heavy lumber, as well as rusting and corrosion, extending the useful life of the blade in outdoor and humid job site conditions
• Laser-cut arbor for precise blade rotation - minimizes vibration during cutting and reduces premature wear on both the blade and the saw's arbor shaft
• 18 deg. hook angle with 24 ATB tooth geometry - optimized for aggressive material removal during framing while maintaining a smooth, controlled cut through hardwoods and engineered wood products
• Extra-tough steel plate at.039" thickness - provides the rigidity needed for straight, consistent cuts through thick lumber and laminated beams without flex or deflection
• Maximum 12,000 RPM rating - compatible with high-speed trim saws for fast production framing on the job site

Why This Product

• The thin kerf design (.049") requires less cutting power from the saw, reducing user fatigue during full days of framing - a meaningful advantage when cutting 2X lumber and pressure treated material repeatedly throughout a project
• The Perma-Shield Coating and TiCo Hi-Density carbide work together to extend blade life beyond standard framing blades, reducing how often you need to swap blades mid-job when cutting resinous or treated lumber
• Laser-cut stabilizer vents actively reduce heat buildup and vibration during extended cuts through OSB, laminated beams, and hardwood framing materials - keeping cuts straight and the blade performing consistently throughout the day
• With a 10mm arbor and 5-3/8" diameter, this blade is sized specifically for compact trim saws, making it the right fit for contractors who need a high-performance wood framing blade in a lightweight, maneuverable tool

Specifications

• Brand: Diablo
• Model Number: D0524X
• Diameter: 5-3/8"
• Teeth: 24 ATB
• Arbor: 10mm
• Kerf:.049"
• Hook Angle: 18 deg.
• Plate:.039"
• Maximum RPM: 12000
• Compatible Tools: Trim Saw
• Compatible Materials: Hardwoods; 2X Lumber; Pressure Treated; OSB; Laminated Beams
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Cutting Wood Framing

Frequently Asked Questions

What types of wood can this Diablo framing blade cut?

This blade is designed to cut hardwoods, 2X lumber, pressure treated lumber, OSB, and laminated beams. It is also suited for rough framing lumber, high quality finish lumber, plywood, and hardboard siding.

What saw is this 5-3/8" Diablo blade compatible with?

This blade is designed for use with trim saws. It has a 10mm arbor and a 5-3/8" diameter, and is rated for a maximum of 12,000 RPM. Always confirm your saw's arbor size and maximum blade diameter before installing.

What does the thin kerf design mean for cutting performance?

The.049" thin kerf removes less material per pass, which requires less cutting power from both the user and the saw. This results in faster cuts, better control over the blade, and reduced fatigue during extended framing work.

How does the Perma-Shield Coating benefit this blade on the job site?

The non-stick Perma-Shield Coating reduces gumming from resinous lumber, and resists rusting and corrosion. This helps the blade perform consistently in outdoor and humid conditions common on construction job sites, and extends the overall working life of the blade.
