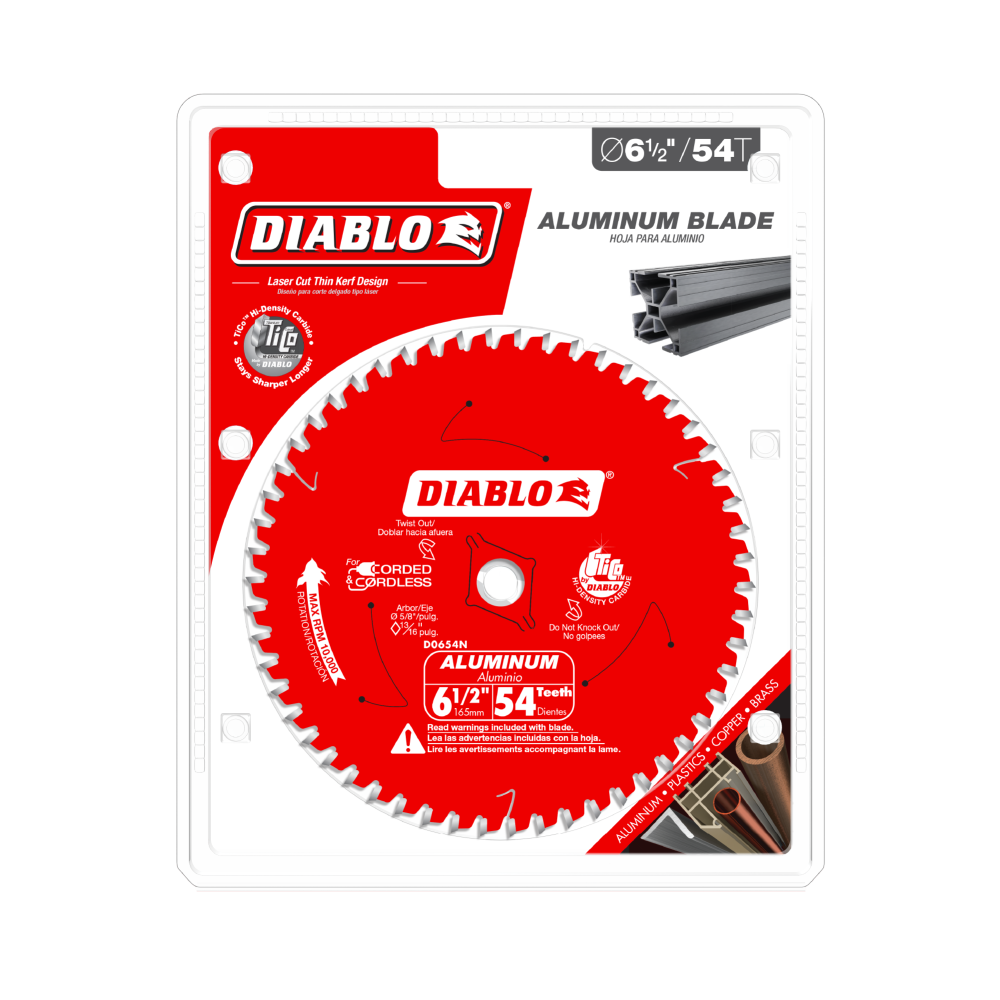

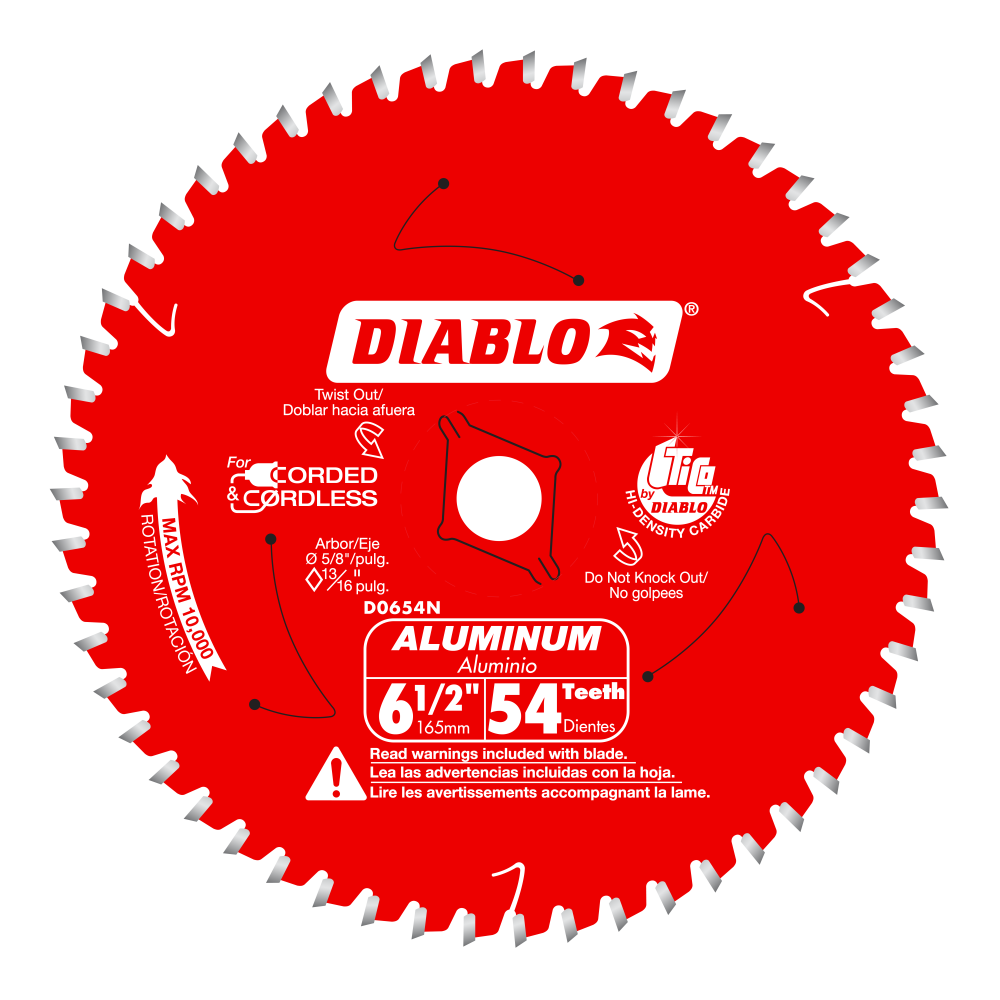

The Diablo 6-1/2 in. x 54-Teeth Saw Blade for Aluminum delivers next-generation cutting performance for non-ferrous metals and related materials. Engineered with Diablo's specially formulated TiCo Super-Density Micro-Grain Carbide, this 6-1/2 in. blade is optimized for cutting thin (up to 1/8 in.), medium (3/32 in.-1/4 in.), and thick (3/16 in.-7/16 in.) aluminum - plus copper, brass, plastic, and fiberglass - while providing clog-free results and extended cutting life. With a 54-tooth count and 0 deg. hook angle, this blade is built for clean, burr-free finishes on cordless circular saws in demanding jobsite conditions.

Key Features

• TiCo Super-Density Micro-Grain Carbide - specially formulated to withstand impact, reduce wear, and deliver clog-free cuts that outlast standard carbide in metal cutting applications
• Triple Chip Grind (TCG) Tooth Geometry - produces clean, burr-free finishes on aluminum extrusions, copper pipe, brass plate, and more, virtually eliminating rework
• Tri-Metal Shock Resistant Brazing - bonds carbide teeth to the plate with extreme impact resistance, maximizing blade durability during heavy-duty non-ferrous metal cutting
• Laser-Cut Stabilizer Vents - trap noise and reduce vibration for improved cutting accuracy and longer blade life during extended use
• Perma-SHIELD Non-Stick Coating - protects the blade against heat buildup, gumming, and corrosion, keeping the plate clean and the blade performing longer
• 5/8 in. arbor and 10,000 maximum RPM rating - compatible with most cordless circular saws and engineered to run safely at high speeds without performance compromise
• 0 deg. hook angle - controls material feed rate during aluminum and non-ferrous metal cutting, reducing the risk of blade grab or kickback

Why This Product

• Cuts across a wide range of aluminum thicknesses - from thin sheet stock up to 7/16 in. thick - making it a versatile choice for contractors working with aluminum extrusions, copper pipe, brass plate, and fiberglass on the same job
• The TCG tooth design and TiCo carbide work together to deliver burr-free cuts that reduce or eliminate finishing rework, saving time on aluminum fabrication and framing tasks
• Designed specifically for cordless circular saws with a 10,000 maximum RPM rating, making it the right fit for today's high-torque battery-powered tools used in the field
• Perma-SHIELD coating and Tri-Metal Shock Resistant Brazing extend blade service life compared to standard carbide blades, reducing replacement frequency and downtime during metal cutting operations

Specifications

• Brand: Diablo
• Manufacturer Part Number: D0654N
• Diameter: 6-1/2 in.
• Teeth: 54
• Arbor: 5/8 in.
• Kerf:.083 in.
• Hook Angle: 0 deg.
• Plate:.063 in.
• Maximum RPM: 10000
• Compatible Tools: Cordless Circular Saw
• Materials: Medium Aluminum, Plastic, Copper, Brass, Fiberglass
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Medium Aluminum Cutting
• Cutting aluminum extrusions, copper pipe, brass plate, plastic, and fiberglass with a cordless circular saw

Frequently Asked Questions

What materials can this Diablo saw blade cut?

This blade is designed to cut aluminum (thin up to 1/8 in., medium 3/32 in.-1/4 in., and thick 3/16 in.-7/16 in.), as well as copper, brass, plastic, and fiberglass. It is optimized for non-ferrous metals such as aluminum extrusions, copper pipe, and brass plate.

What is the arbor size and what circular saws is it compatible with?

This blade has a 5/8 in. arbor and is compatible with cordless circular saws. It has a maximum rating of 10,000 RPM, making it suitable for most modern cordless circular saw platforms used in the field.

What is TiCo Super-Density Micro-Grain Carbide and why does it matter for metal cutting?

TiCo Super-Density Micro-Grain Carbide is a specially formulated carbide used in Diablo's metal cutting blades. It is engineered to withstand impact, reduce wear, and provide clog-free cuts while lasting longer than standard carbide in metal cutting applications - meaning fewer blade changes and less downtime on the job.

Will this blade leave burrs or rough edges on aluminum cuts?

No. The Triple Chip Grind (TCG) Tooth Geometry is specifically designed to produce clean, burr-free finishes on non-ferrous metals, virtually eliminating the need for rework after cutting aluminum, copper, brass, or similar materials.
