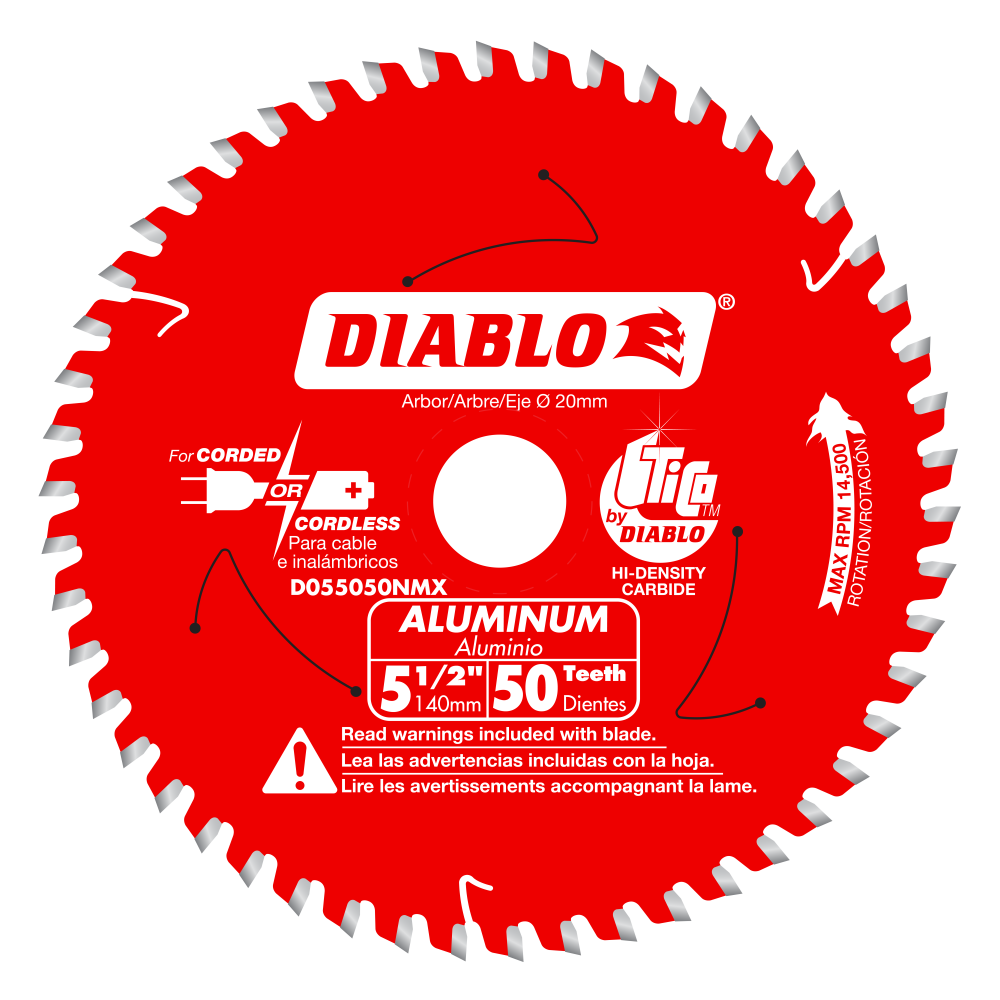

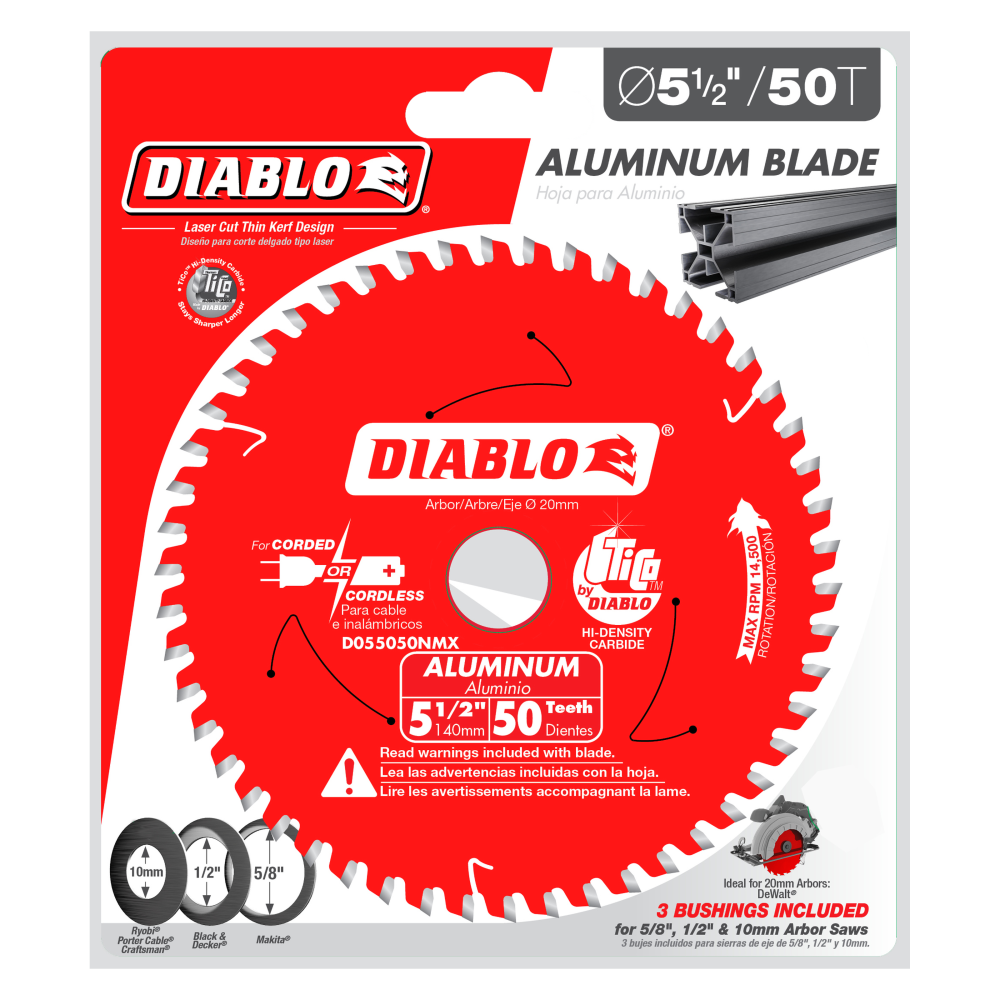

The Diablo 5-1/2" x 50-Tooth Aluminum Cutting Saw Blade is purpose-built for fast, accurate cuts through aluminum and other non-ferrous metals using cordless trim saws. Featuring a 20mm arbor with three included bushings for compatibility with 1/2", 5/8", and 10mm arbor saws, this blade delivers the versatility professionals need across multiple tool platforms. Diablo's proprietary TiCo Hi-Density Carbide construction and Triple Chip Grind tooth geometry produce clean, burr-free results in medium aluminum, copper, brass, plastic, and fiberglass - making it the right choice when rework is not an option and battery runtime matters.

Key Features

• TiCo Hi-Density Carbide teeth engineered specifically for aluminum cutting - delivers extreme cutting life and clog-free performance in non-ferrous metal applications
• Triple Chip Grind (TCG) tooth design with 50 teeth - produces clean, burr-free finishes in aluminum and non-ferrous materials, virtually eliminating rework
• Tri-Metal Shock Resistant Brazing bonds carbide tips to the blade body - withstands extreme impact forces encountered in metal cutting for maximum long-term durability
• Advanced laser-cut thin kerf body at.061" - minimizes material removal and reduces cutting power demand, extending cordless saw battery life per charge
• Laser-cut stabilizer vents trap noise and vibration - keep the blade running cooler and reduce blade warp for more accurate, consistent cuts
• Non-stick Perma-SHIELD coating on the blade body - resists gumming from aluminum buildup, rusting, and corrosion for longer service life
• Includes three arbor bushings (1/2", 5/8", and 10mm) in addition to the native 20mm arbor - compatible with DeWalt, Makita, Black and Decker, Ryobi, Porter Cable, and Craftsman cordless saws
• -5 deg. hook angle optimized for non-ferrous metal cutting - controls chip load and reduces grabbing for safer, smoother cuts through aluminum stock
• Maximum rated speed of 14,500 RPM - suited for high-speed cordless trim saw operation without compromising blade integrity
• Rated for medium aluminum from 3/32" to 1/4" thickness, plus copper, brass, plastic, and fiberglass - covers a wide range of non-ferrous and composite materials in one blade

Why This Product

• Multi-arbor compatibility out of the box - the 20mm native arbor plus three included bushings (1/2", 5/8", 10mm) mean one blade works across DeWalt, Makita, Ryobi, Porter Cable, Craftsman, and Black and Decker cordless trim saws without purchasing additional adapters.
• Designed to protect cordless battery runtime - the thin.061" kerf removes less material per pass, requiring less motor effort, which translates directly to more cuts per battery charge on cordless saws.
• Burr-free cuts reduce finishing labor - the 50-tooth TCG geometry leaves clean edges in aluminum (3/32" to 1/4"), copper, brass, and plastic, so parts are ready to use without secondary grinding or filing.
• Italy-sourced construction with premium Diablo carbide - TiCo Hi-Density Carbide with Tri-Metal Shock Resistant Brazing provides durability in demanding metal-cutting environments where standard wood blades would fail quickly.

Specifications

• Brand: Diablo
• Model Number: D055050NMX
• Diameter: 5-1/2"
• Teeth: 50 TCG
• Arbor: 20mm
• Kerf:.061"
• Plate:.039"
• Hook Angle: -5 deg.
• Maximum RPM: 14500
• Compatible Tools: Trim Saw
• Compatible Materials: Medium Aluminum; Aluminum 3/32" to 1/4"; Plastic; Copper; Brass; Fiberglass
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Medium Aluminum Cutting

Frequently Asked Questions

Which cordless saw brands is this blade compatible with?

This blade includes four arbor sizes via the native 20mm arbor and three additional bushings: 1/2", 5/8", and 10mm. That covers DeWalt (20mm arbor), Makita (5/8" arbor), Black and Decker (1/2" arbor), Ryobi (10mm arbor), Porter Cable (10mm arbor), and Craftsman (10mm arbor) cordless trim saws.

What materials can this blade cut?

This 50-tooth TCG blade is designed to cut medium aluminum from 3/32" to 1/4" thick, as well as copper, brass, plastic, and fiberglass. It is not intended for ferrous metals such as steel or iron.

Why does this blade use a Triple Chip Grind (TCG) tooth design instead of a standard ATB grind?

The Triple Chip Grind tooth geometry is specifically engineered for non-ferrous metals and hard materials. It alternates between a flat-topped raker tooth and a chamfered tooth to shear material cleanly and reduce burr formation, which is critical when cutting aluminum, brass, copper, and similar materials where a standard Alternate Top Bevel grind would chip or load up.

What is the maximum cutting speed for this blade?

This blade is rated to a maximum of 14,500 RPM. Always confirm your saw's operating speed does not exceed this rating before use to ensure safe operation.
