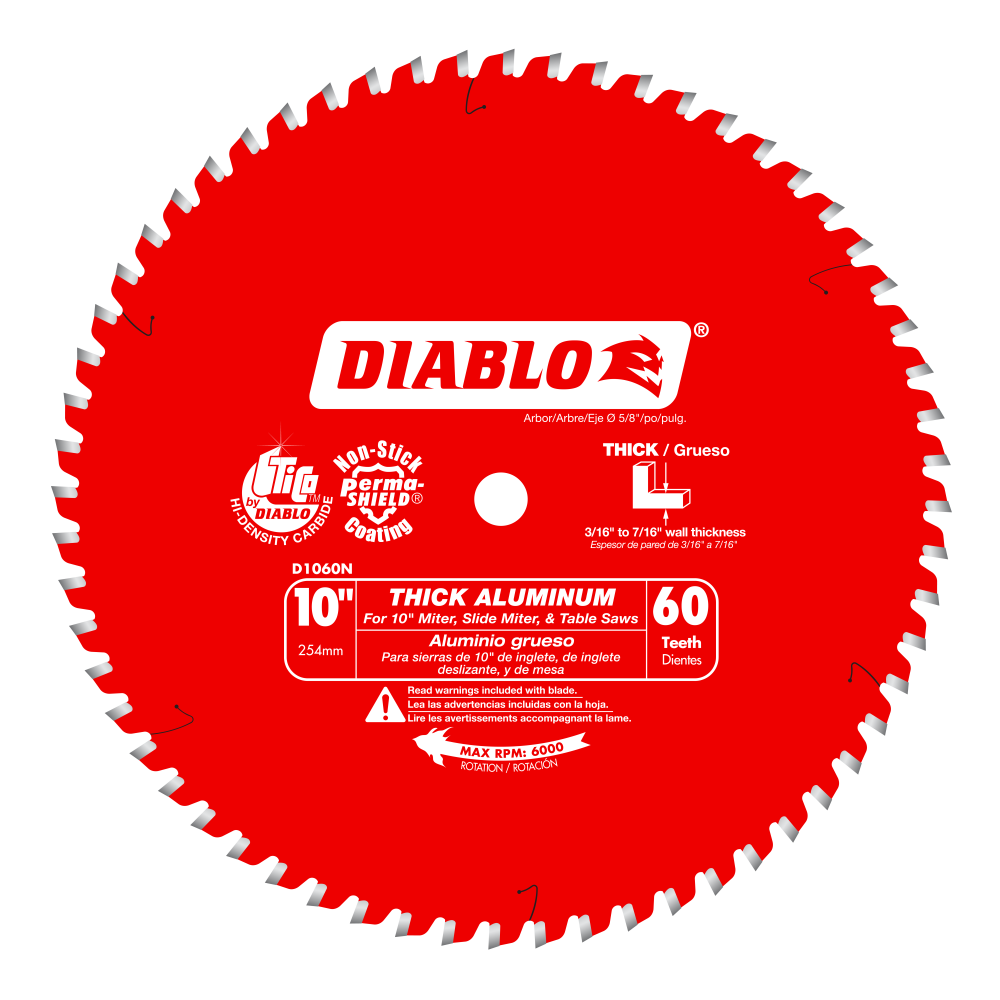

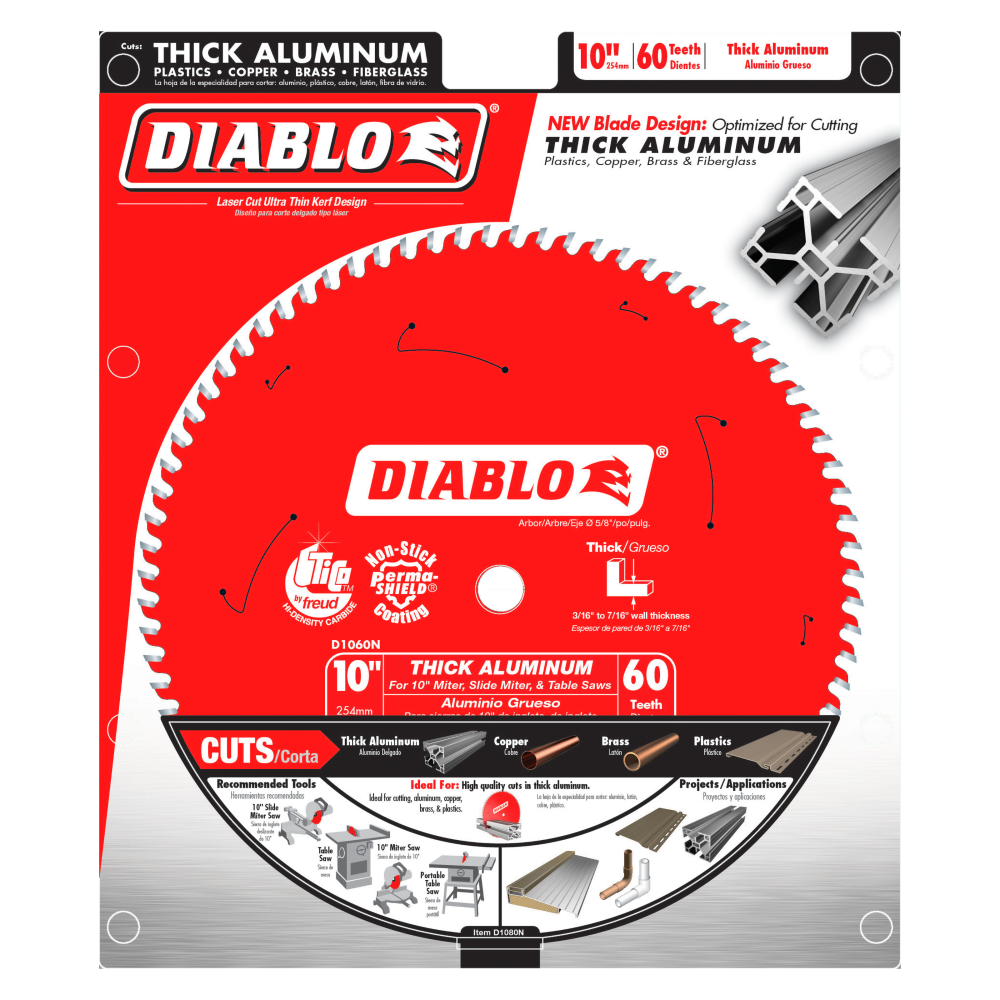

The Diablo 10" x 60-Teeth Saw Blade for Thick Aluminum is a next-generation carbide-tipped circular saw blade engineered for professional-grade cutting of thick aluminum and other non-ferrous metals. Designed to handle thin (up to 1/8"), medium (3/32"-1/4"), and thick (3/16"-7/16") aluminum stock, this blade delivers clean, burr-free results on aluminum extrusions, copper pipe, brass plate, fiberglass, and plastics. Whether you are using a miter saw, slide miter saw, stationary table saw, or portable table saw - corded or cordless - this Diablo aluminum cutting blade is built to perform on the job site and in the shop with consistently smooth, rework-free cuts.

Key Features

• TiCo Super-Density Micro-Grain Carbide - specially formulated carbide that withstands impact, reduces wear, and provides clog-free cuts, lasting longer than standard carbide in metal cutting applications
• Tri-Metal Shock Resistant Brazing - bonds the carbide teeth with extreme impact resistance for maximum durability when slicing through aluminum, copper, brass, and other non-ferrous materials
• Triple Chip Grind (TCG) Tooth Geometry - delivers maximum cutting life, speed, and durability while producing clean, burr-free finishes that virtually eliminate rework
• Laser-Cut Stabilizer Vents - trap noise and reduce vibration during the cut, improving accuracy and extending blade life over extended use
• Perma-SHIELD Non-Stick Coating - protects the blade body against heat buildup, gumming from aluminum chips, and corrosion, helping maintain peak performance cut after cut
• -5 deg. hook angle - a negative hook angle designed specifically for non-ferrous metals, reducing grab and providing controlled, safe feeding through aluminum and other soft metals
• 60-tooth configuration - high tooth count produces finer, smoother cuts in aluminum profiles, copper pipe, brass plate, and plastic sheet without the need for secondary finishing

Why This Product

• If you regularly cut thick aluminum extrusions or structural aluminum profiles in the 3/16"-7/16" range, the TCG tooth geometry and TiCo carbide formulation are specifically engineered for that material thickness - reducing burrs and eliminating the hand-finishing step that standard blades require.
• The Perma-SHIELD non-stick coating and clog-free TiCo carbide work together to prevent aluminum chip buildup on the blade body, a common source of heat and blade degradation when cutting soft metals at production volume.
• Compatibility with both corded and cordless miter saws, slide miter saws, stationary table saws, and portable table saws makes this a single blade solution across multiple tool platforms - reducing the need to swap blades between machines on multi-tool job sites.
• Beyond aluminum, this blade is rated for cutting copper, brass, plastic, and fiberglass - making it a versatile non-ferrous and composite cutting blade for contractors, fabricators, and shop workers who process a variety of materials.

Specifications

• Brand: Diablo
• Manufacturer Part Number: D1060N
• Diameter: 10"
• Teeth: 60
• Arbor: 5/8"
• Kerf:.11"
• Hook Angle: -5 deg.
• Plate:.087"
• Maximum RPM: 6000
• Pack Quantity: 1
• Tools: Miter Saw; Slide Miter Saw; Stationary Table Saw; Portable Table Saw
• Materials: Thick Aluminum; Aluminum 3/16" to 7/16"; Plastic; Copper; Brass; Fiberglass
• Usage: Cutting aluminum, copper, plastics, brass, and fiberglass
• Country of Origin: Italy

Approved Applications

• Thick Aluminum Cutting

Frequently Asked Questions

What thickness of aluminum can this blade cut?

This blade is optimized for thin (up to 1/8"), medium (3/32"-1/4"), and thick (3/16"-7/16") aluminum. It is specifically designed for thick aluminum cutting applications in that upper range where standard blades tend to struggle with burrs and clogging.

Can this blade be used on materials other than aluminum?

Yes. In addition to aluminum, this blade is rated for cutting copper, brass, plastic, and fiberglass. It is ideal for non-ferrous metals such as aluminum extrusions, copper pipe, and brass plate, as well as plastic sheet and fiberglass composite materials.

What saws is this blade compatible with?

This 10" blade is compatible with miter saws, slide miter saws, stationary table saws, and portable table saws. It works with both corded and cordless saw platforms. The arbor size is 5/8" and the maximum rated speed is 6000 RPM.

Why does this blade use a negative hook angle?

The -5 deg. hook angle is specifically formulated for cutting non-ferrous metals like aluminum, copper, and brass. A negative hook angle reduces the tendency of the blade to grab or self-feed aggressively into soft metals, providing a safer, more controlled cut and a cleaner finish compared to blades with a positive hook angle.
