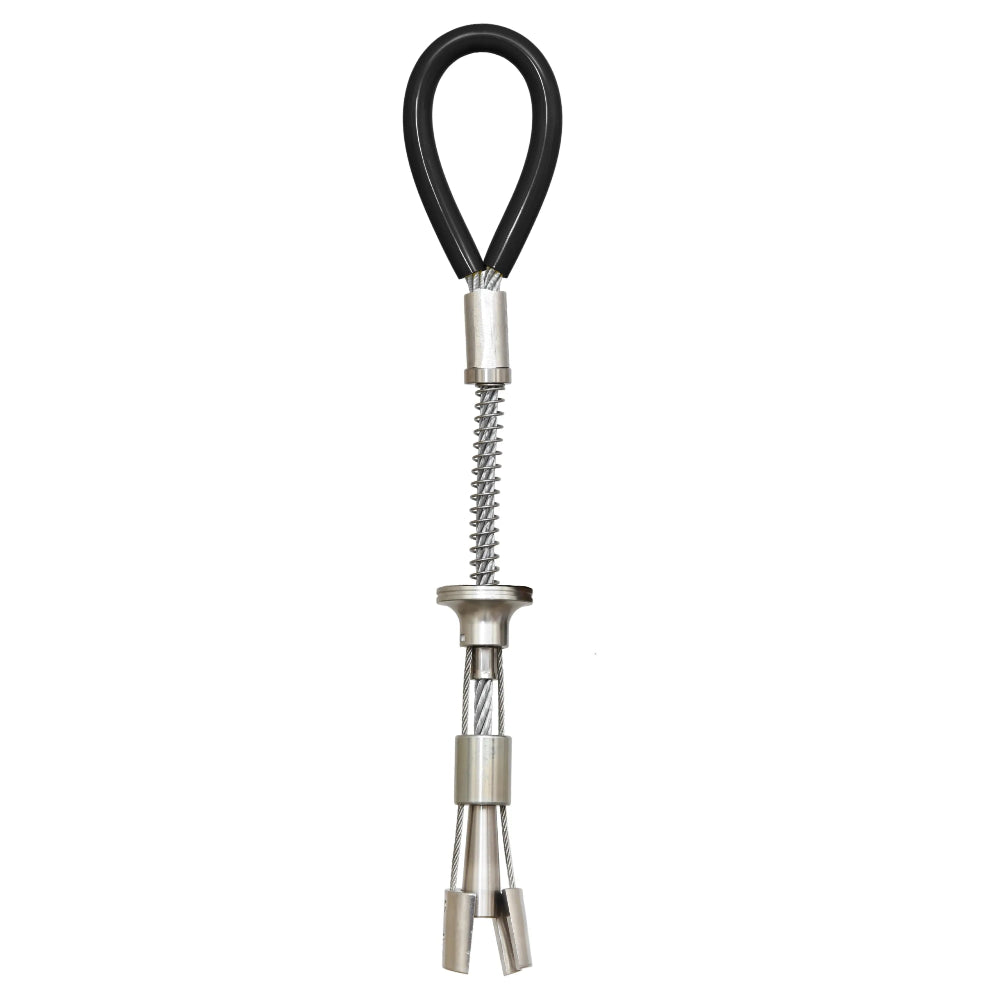

The DEWALT Reusable Concrete Single Point Anchor is built for fall protection crews who need a reliable, repositionable anchor point across horizontal, vertical, or overhead concrete applications. Constructed from galvanized steel and aluminum for superior corrosion resistance, it delivers a 10,000 lbs. (45kN) anchor point that exceeds both OSHA and ANSI requirements - giving safety managers a meaningful margin above minimum compliance thresholds. A spring-tensioned trigger and retractor cables enable one-hand release with no tools required, so workers can remove and relocate the anchor immediately without losing momentum on the job.

Key Features

• 10,000 lbs. (45kN) anchor point that exceeds OSHA and ANSI standards - delivers a substantial safety margin above the regulatory minimum, giving workers and safety managers verifiable confidence on every installation.
• Spring-tensioned trigger and retractor cables enable one-hand release - no tools needed to remove and relocate the anchor to another hole, cutting downtime and keeping multi-point jobsite workflows moving efficiently.
• Expanding end locks into a 3/4 inch (19.05 mm) concrete mounting hole - creates a firm, secure connection without permanent hardware, protecting the concrete surface for repeated future use at the same location.
• Galvanized steel and aluminum construction - provides exceptional corrosion and rust resistance so the anchor holds up in demanding outdoor or high-moisture concrete environments over an extended service life.
• Rated for horizontal, vertical, or overhead concrete applications - a single anchor covers multiple orientations, eliminating the need to source and stock separate specialized products for different job configurations.
• Minimum Breaking Strength of 3,300 lbs. (14.7kN) with a rated capacity of 310 lbs. (140 kg) - clearly defined load ratings give safety planners the specific numbers needed for accurate compliance documentation and load calculations.
• Compliant with ANSI Z359.18-2017, OSHA 1926.502, and OSHA 1910.140 - meets the fall protection anchor standards required for both construction and general industry safety programs, simplifying compliance verification.
• Reusable design backed by a 2-year warranty - lowers the per-use cost compared to disposable anchors and provides documented coverage, making this a practical long-term investment for active fall protection programs.

Why This Product

• Engineered for jobsites where anchor points change frequently - the one-hand spring-tensioned release and retractor cable system let workers remove and reposition the anchor without tools, solving the productivity problem that comes with fixed or bolt-dependent concrete anchors.
• One anchor, three orientations - horizontal, vertical, and overhead concrete applications are all covered by a single unit, reducing equipment overhead and simplifying inventory for safety managers overseeing varied work environments.
• Strength ratings built above the compliance floor - with a 10,000 lbs. (45kN) anchor point exceeding both OSHA 1926.502 and ANSI Z359.18-2017 requirements, this anchor gives safety teams documented performance above the regulatory minimum rather than just at it.
• Galvanized steel and aluminum construction extends useful life - corrosion and rust resistance mean the anchor maintains integrity in outdoor and high-exposure concrete environments, protecting the value of a reusable tool that is meant to serve across many jobs and years of use.

Specifications

• Brand: DEWALT
• MPN: DXFP845101
• Size: 10.96" (278.4mm) long
• Weight: .372 lbs. (168.7gm)
• Minimum Breaking Strength: 3,300 lbs. (14.7kN)
• Capacity: 310 lbs. (140 kg)
• Anchor Point Strength: 10,000 lbs. (45kN)
• Mounting Hole Size: 3/4 inch (19.05 mm)
• Material: galvanized steel and aluminum
• Color: Black
• Standards: ANSI Z359.18-2017; OSHA 1926.502 and 1910.140
• Warranty: 2 years
• Unit of Measure: 1

Frequently Asked Questions

What size hole does the DEWALT DXFP845101 Reusable Concrete Anchor require?

The anchor requires a 3/4 inch (19.05 mm) mounting hole in concrete. The anchor's end expands inside the hole to create a secure connection, and the hole is left intact after removal, allowing it to be reused.

What is the weight capacity of this concrete fall protection anchor?

The DXFP845101 has a working capacity of 310 lbs. (140 kg) and a minimum breaking strength of 3,300 lbs. (14.7kN). The anchor point is rated at 10,000 lbs. (45kN), exceeding OSHA and ANSI requirements.

Can this anchor be used on vertical or overhead concrete surfaces, not just horizontal?

Yes. The DEWALT Reusable Concrete Anchor is designed for use on horizontal, vertical, or overhead concrete applications, making it a versatile solution for varied fall protection scenarios on a single jobsite.

What safety standards does the DXFP845101 comply with?

This anchor meets ANSI Z359.18-2017 for anchorage connectors, as well as OSHA 1926.502 (construction fall protection) and OSHA 1910.140 (general industry personal fall protection), supporting compliance for both construction and general industry applications.
