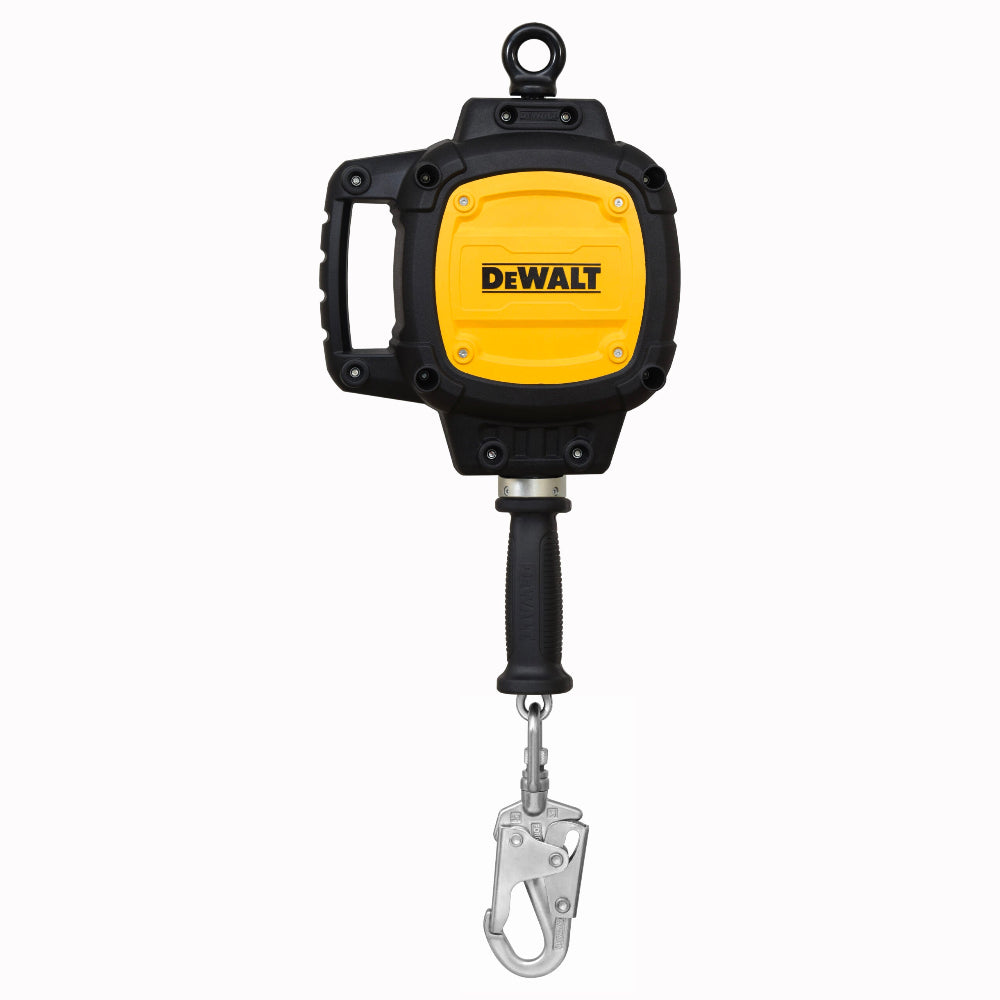

The DEWALT D100 30-Foot Self Retracting Lifeline with Galvanized Cable is an anchor-mounted fall protection connector built for workers who need compliant, freedom-of-motion safety across construction, maintenance, and industrial applications. Engineered with a 3/16" galvanized steel cable lifeline and a rugged high-impact strength polymer housing, this SRL meets ANSI Z359.14-2021 Class 1, OSHA 1926.502, and OSHA 1910.66 standards - giving safety managers and workers a dependable, dual-rated fall arrest solution that holds up under demanding, repetitive jobsite use.

Key Features

• ANSI and OSHA Dual-Rated Capacity - Rated to ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg), this self retracting lifeline reduces free fall distance and arrest forces on the body - meaning workers stay protected and the unit meets compliance requirements across both general industry and construction site regulations.
• 3/16" (4.8 mm) Galvanized Steel Cable Lifeline - The galvanized steel construction resists corrosion and abrasion in outdoor and industrial environments, so the lifeline holds up through demanding, repetitive use without compromising the integrity of the connection between anchor and harness.
• High Impact Strength Polymer Housing with Recessed Labels - The rugged housing absorbs jobsite impacts that would crack or degrade lesser enclosures, while recessed labels resist wear and remain legible throughout the service life of the unit - keeping inspections accurate and reducing early replacement costs.
• Impact Indicating Snap Hook at Harness End - The 3,600 lb. (16kN) gate steel snap hook at the harness connector features built-in impact indication, giving workers and safety supervisors a clear visual signal if the device has been involved in a fall event - enabling fast, confident post-incident assessment without guesswork.
• Steel Carabiner Anchor Connector - 3,600 lb. (16kN) Gate - The galvanized alloy steel carabiner at the anchor end delivers a corrosion-resistant, high-strength connection that attaches and removes quickly at anchor locations, supporting versatile repositioning across a wide variety of work environments.
• 30' (9.14 m) Working Length - The full 30-foot range of motion lets workers move freely around their work area without detaching and re-anchoring at every position change, supporting both productivity and uninterrupted fall protection coverage throughout the task.
• Compact and Lightweight at 12.3 lbs. (5.58 kg) - At just 12.3 lbs. (5.58 kg), the D100 reduces fatigue during extended wear and stays out of the way during physical tasks, giving users more freedom of motion over the course of a full workday compared to heavier SRL alternatives.
• Trip-Free Connector Design - The trip-free connector design allows ease of movement without the risk of accidental disconnection, so workers can stay focused on the task at hand rather than managing equipment interference or workflow interruptions.
• Tagline Included - A tagline is included with the unit, providing a convenient retrieval method that is ready to use out of the box - eliminating the need to source this accessory separately before putting the lifeline into service.
• 2-Year Warranty - Backed by a DEWALT 2-year warranty, this self retracting lifeline gives safety managers and workers long-term confidence in their fall arrest investment, with manufacturer support covering the unit for extended service.

Why This Product

• Meets both ANSI and OSHA standards in a single unit - For job sites that must satisfy ANSI Z359.14-2021 Class 1 alongside OSHA 1926.502 and 1910.66 requirements, the D100 SRL covers both frameworks with a single purchase - simplifying compliance management for safety coordinators overseeing mixed-regulation environments.
• Built to withstand tough jobsite conditions without sacrificing mobility - The combination of a galvanized steel cable lifeline, high-impact polymer housing, and a 30-foot working length means workers are not choosing between durability and freedom of movement - they get both in one anchor-mounted connector that travels with them across the work area.
• Impact indication removes post-fall uncertainty - Because the harness-end snap hook visually signals whether the device has experienced a fall event, safety supervisors can make faster, more accurate decisions about whether the SRL needs to be removed from service - reducing the risk of returning compromised equipment to use.
• Ready to deploy with tagline and anchorage adapter included - The D100 ships with both a tagline and an anchorage adapter, so crews can put the lifeline into service immediately without tracking down additional components - reducing setup time and out-of-pocket accessory costs at the point of use.

Specifications

• MPN: DXFP210111-030
• Brand: DEWALT
• Product Category: Fall Protection
• Working Length: 30' (9.14 M)
• Max Capacity (ANSI): 310 lbs. (141 kg)
• Max Capacity (OSHA): 420 lbs. (191 kg)
• Lifeline Material: 3/16" (4.8 mm) Galvanized Steel Cable
• Housing: High Impact Strength Polymer
• Anchor End Connector: 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Carabiner
• Harness Connector: Impact Indicating 3,600 lb. (16kN) gate Steel (galvanized alloy steel with golden yellow/silver passivation) Snap Hook
• Tagline: Included
• Standards: ANSI Z359.14-2021 Class 1, OSHA 1926.502 and 1910.66
• Color: Blk/Gold
• Warranty: 2 years
• Unit of Measure: 1

Frequently Asked Questions

What standards does the DEWALT D100 30' SRL comply with?

This self retracting lifeline is compliant with ANSI Z359.14-2021 Class 1, OSHA 1926.502, and OSHA 1910.66, covering both general construction and industrial fall protection regulatory requirements.

What is the maximum weight capacity of this self retracting lifeline?

The DEWALT D100 SRL is rated to a maximum capacity of 310 lbs. (141 kg) under ANSI standards and 420 lbs. (191 kg) under OSHA standards.

How does the impact indicating snap hook work and why does it matter?

The impact indicating snap hook at the harness connector is designed to provide a visible signal when the device has been subjected to a fall arrest load. This allows safety supervisors and workers to quickly identify whether the SRL has experienced a fall event and needs to be removed from service and inspected - supporting proper post-incident safety protocols.

What connector type is used at the anchor end of this SRL?

The anchor end uses a 3,600 lb. (16kN) gate Steel carabiner made from galvanized alloy steel with golden yellow/silver passivation, providing a strong and corrosion-resistant connection to anchor points across a variety of fall protection applications.
