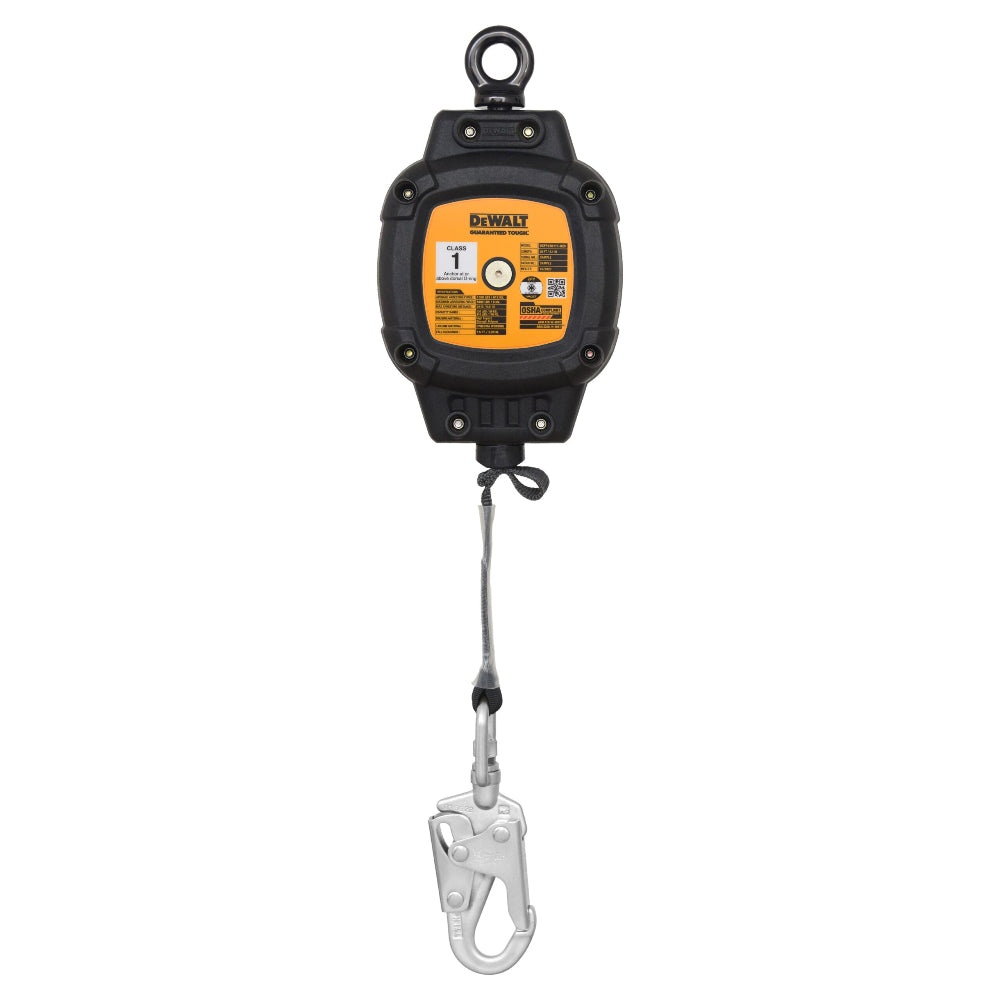

The DeWALT 20 Feet Self Retracting Lifeline Web DXFP230111-020 is an anchor-mounted fall protection SRL engineered for work-at-height professionals who require dependable, compliance-ready performance across construction and general industry environments. Built around a 1 in. (25.4 mm) polyester web lifeline that retracts smoothly to continuously minimize slack and limit free fall distance, this self retracting lifeline features a trip-free harness snap hook combined with an impact indicating design that delivers immediate visual confirmation whenever a fall-arrest event has occurred. Rated to ANSI 310 lbs. (141 kg) and OSHA 420 lbs. (191 kg) and weighing just 6.41 lbs. (2.90 kg), this rugged, lightweight SRL gives workers the strength, regulatory compliance, and freedom of movement needed to perform confidently at elevation.

Key Features

• 20 ft. (6.10 m) Working Length with 1 in. Polyester Web Lifeline - gives workers generous reach across a work area while the smooth-retracting webbing continuously limits slack, reducing free fall distance and the arrest forces transmitted to the body during a fall event.
• Impact Indicating Snap Hook at Harness End - provides immediate, visible evidence that a fall-arrest event has occurred, so supervisors and workers can quickly identify a unit that requires inspection or replacement rather than returning a compromised device back to service.
• Trip-Free Snap Hook Design - reduces the risk of accidental gate opening caused by contact with structural elements or equipment, helping maintain a secure connection throughout the workday without the need for constant manual re-checking.
• ANSI Rating of 310 lbs. (141 kg) and OSHA Rating of 420 lbs. (191 kg) - meets two of the most commonly referenced fall protection compliance standards simultaneously, simplifying jobsite safety planning and eliminating the need to cross-reference multiple rated products for different regulatory requirements.
• Lightweight at 6.41 lbs. (2.90 kg) - minimizes fatigue during extended work-at-height shifts, making this fall protection SRL easier to carry, deploy, and re-use across multiple work positions throughout the day without adding unnecessary load to the worker.
• Anchor-Mounted Connector Configuration - attaches directly to a fixed anchor point, keeping the unit stable overhead and allowing the lifeline to extend and retract freely as the worker moves, which is well suited to roofing, steel erection, and other construction applications where mobility is essential.

Why This Product

• Dual compliance with both ANSI (310 lbs. / 141 kg) and OSHA (420 lbs. / 191 kg) standards means this self retracting lifeline is ready for a wide range of regulated jobsite environments without requiring separate documentation or workarounds to satisfy inspectors.
• The impact indicating snap hook removes guesswork after an incident - a visible indicator tells workers and safety managers immediately whether the device has been activated, supporting faster inspection decisions and reducing the chance of a compromised SRL being returned to active duty.
• At 6.41 lbs. (2.90 kg), this fall arrest device is built to balance structural strength with wearability, making it a practical daily-use solution for construction crews and general industry workers who need protection at height without bulk slowing them down.
• The 20 ft. (6.10 m) polyester web lifeline provides the working length needed for a variety of elevated tasks while the automatic retraction mechanism keeps excess webbing off the work surface, reducing trip hazards and keeping the work zone cleaner and safer.

Specifications

• Brand: DeWALT
• Model Number: DXFP230111-020
• Working Length: 20 ft. (6.10 m)
• Lifeline Material: 1 in. (25.4 mm) Polyester Web
• ANSI Weight Rating: 310 lbs. (141 kg)
• OSHA Weight Rating: 420 lbs. (191 kg)
• Weight: 6.41 lbs. (2.90 kg)
• Connector Type: Anchor-Mounted
• Harness Connection: Trip-Free Snap Hook
• Impact Indicator: Yes

Frequently Asked Questions

What compliance standards does this self retracting lifeline meet?

This DeWALT SRL is rated to ANSI at 310 lbs. (141 kg) and to OSHA at 420 lbs. (191 kg), making it compliant with two widely referenced fall protection standards used across construction and general industry jobsites.

How does the impact indicating snap hook work?

The impact indicating snap hook at the harness end of the lifeline provides a visible indicator when a fall-arrest event has occurred. This allows workers and safety supervisors to immediately identify whether the device has been activated and needs to be taken out of service for inspection or replacement.

What type of anchor connection does the DXFP230111-020 use?

This unit uses an anchor-mounted connector configuration, meaning it attaches at a fixed overhead anchor point and allows the 20 ft. (6.10 m) polyester web lifeline to extend and retract as the worker moves, which is typical for construction and elevated work applications.

Is the trip-free snap hook important for fall protection safety?

Yes - the trip-free design on the harness-end snap hook reduces the risk of the gate accidentally opening when it makes contact with structural elements, equipment, or other surfaces during normal work movement. This helps maintain a secure, reliable connection to the worker's harness throughout the shift without requiring manual monitoring of the hook gate.
