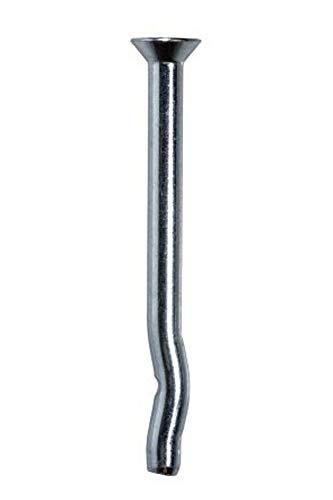

Simpson Strong-Tie CD18400C Crimp Drive 3/16 in. x 4 in. Zinc-Plated Countersunk Head Anchor is an easy-to-install expansion anchor engineered by Simpson Strong-Tie for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure, speeding up installation and reducing overall labor effort. The countersunk head style delivers a zero-profile solution ideal for applications where a flush finish is required.

Key Features

• Unique curved shaft design that provides secure placement
• Speeds up anchor installation by eliminating need for additional tightening
• Countersunk head provides a zero-profile solution
• Zinc-plated carbon-steel anchor
• Size: 3/16 in. x 4 in.

Specifications

• MPN: CD18400C
• Brand: Simpson Strong-Tie
• Size: 3/16 in. x 4 in.
• Head Type: Countersunk Head
• Material: Carbon Steel
• Coating: Zinc Plated
• Finish: Zinc Plated
• Packaging: Packs of 100 and Cartons of 500
• Country of Origin: Taiwan

Approved Applications

• Fastening wood to concrete and grout-filled block
• Fastening light-gauge steel to concrete and grout-filled block
• Attaching concrete formwork
• Hanging overhead support for sprinkler pipes
• Supporting suspended ceiling panels

Frequently Asked Questions

What base materials is the Simpson Strong-Tie Crimp Drive anchor designed for?

The Crimp Drive anchor is designed for use in concrete and grout-filled block, making it suitable for a wide range of structural and mechanical fastening tasks in masonry construction.

Why does the Crimp Drive anchor not require a secondary tightening procedure?

The anchor features a preformed curvature along its shaft that acts as a built-in expansion mechanism. When driven into the hole, this curved shaft expands against the base material, securing the anchor firmly in place without any additional tightening steps.

What is the advantage of the countersunk head style on the CD18400C?

The countersunk head provides a zero-profile solution, meaning the head sits flush with or below the surface of the fixture material once installed. This is ideal for applications where a smooth, unobstructed surface finish is required.

What material and protective coating does the CD18400C anchor use?

The CD18400C is constructed from carbon steel and features a zinc-plated finish, which provides a layer of corrosion resistance for general-purpose interior anchoring applications in concrete and grout-filled block.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
