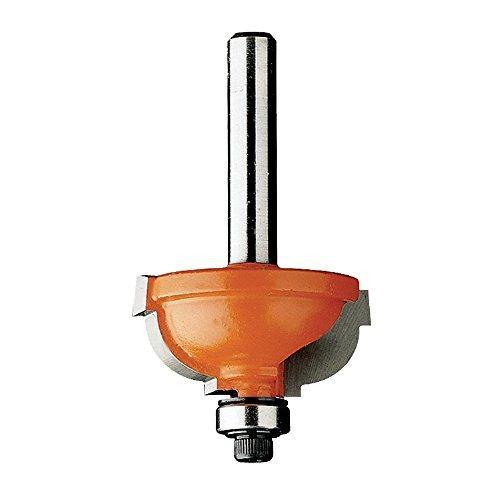

CMT Cavetto Edge Mould Bit by CMT delivers a graceful, traditional concave profile that elevates furniture edges, cabinet faces, and decorative moulding work. With a 3/16" radius and a full 1" cutting diameter, this router bit produces the classic cavetto cove shape that has defined fine woodworking for centuries - while also allowing you to engage just a portion of the cutting profile for a simpler, cleaner cove edge on lighter workpieces. Fitted with a 1/2" shank for stable chuck engagement and rigid, chatter-free performance in both handheld routers and router table setups, this 2-blade hardwood-carbide bit is a go-to choice for craftsmen who need consistent, repeatable concave profiles on solid hardwood, softwood, and engineered wood materials.

Key Features

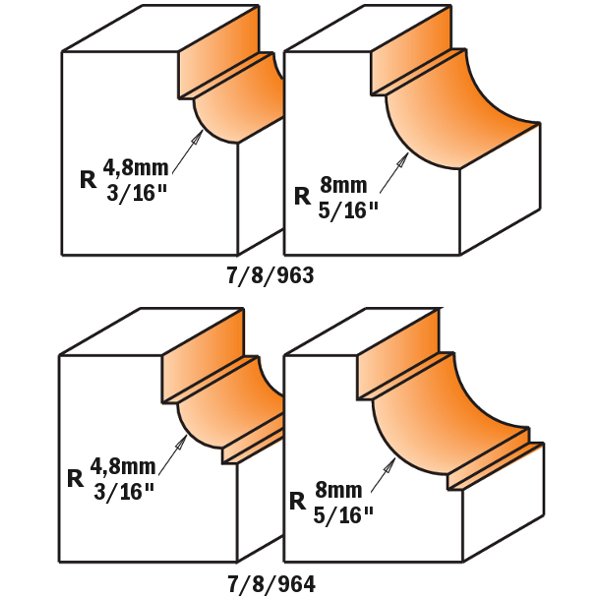

• Cavetto cove profile with 3/16" radius - cuts the traditional quarter-round concave shape prized in furniture, cabinet moulding, and architectural millwork, giving finished edges a refined, classical appearance.
• Partial-profile versatility - using only a portion of the bit's 15/32" cutting height lets you create a simpler, cleaner cove edge without a dedicated secondary bit, reducing tooling costs and setup time.
• 1" cutting diameter - provides a full, sweeping concave arc in a single pass, minimizing the need for multiple light passes and speeding up production on repetitive moulding runs.
• 1/2" shank - the larger shank diameter reduces vibration and deflection compared to smaller shanks, resulting in smoother cuts, improved surface finish, and extended bit life.
• 2-flute hardwood carbide (HW) construction - dual cutting edges balance chip load evenly, keeping heat buildup low and surface quality high on dense hardwoods, softwoods, plywood, and MDF.
• Right-hand (RH) rotation - matches the standard direction of virtually all routers on the market, making this bit a plug-and-play choice with no special setup or adapter required.
• 15/32" cutting height - sufficient depth to profile standard furniture and cabinet stock in a controlled, single-pass cut on a router table or with multiple light passes in freehand routing.

Why This Product

• The 3/16" radius cavetto profile is one of the most historically recognized concave moulding shapes - this bit reproduces it accurately in a single pass, making it ideal for restoration work, traditional furniture builds, and period-style cabinetry.
• The ability to use only part of the profile means one bit can serve multiple design needs - from a full classical cavetto to a subtle cove accent - eliminating the need to purchase separate bits for lighter edge treatments.
• The 1/2" shank and 2-flute hardwood carbide construction work together to maintain cut quality over long production runs, making this bit a reliable choice for shops that need consistent results across multiple workpieces.
• With a 2 21/64" overall length and right-hand rotation, this bit is compatible with standard handheld routers and router tables, offering flexibility to switch between freehand and table-mounted operation depending on the workpiece size.

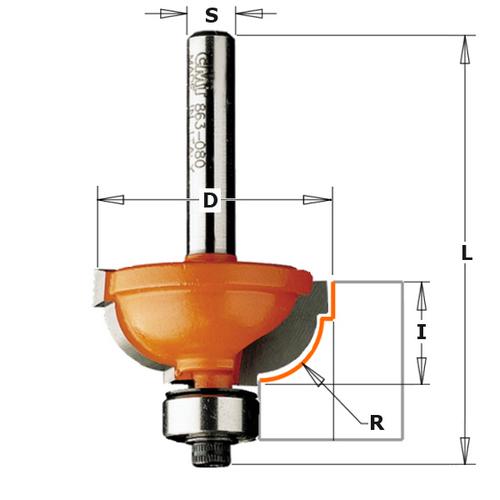

Specifications

• Manufacturer Part Number: 864.548.11
• Brand: CMT Orange Tools
• Diameter: 1"
• Cutting Height: 15/32"
• Total Length: 2 21/64"
• Radius: 3/16"
• Shank: 1/2"
• Number of Teeth: 2
• Material: HW
• Rotation: Right-hand (RH)

Approved Applications

• Cavetto cove profile on furniture edges and cabinet faces
• Traditional and period-style moulding profiles
• Partial cove edge treatments for simpler, cleaner decorative edges
• Architectural millwork and decorative trim routing
