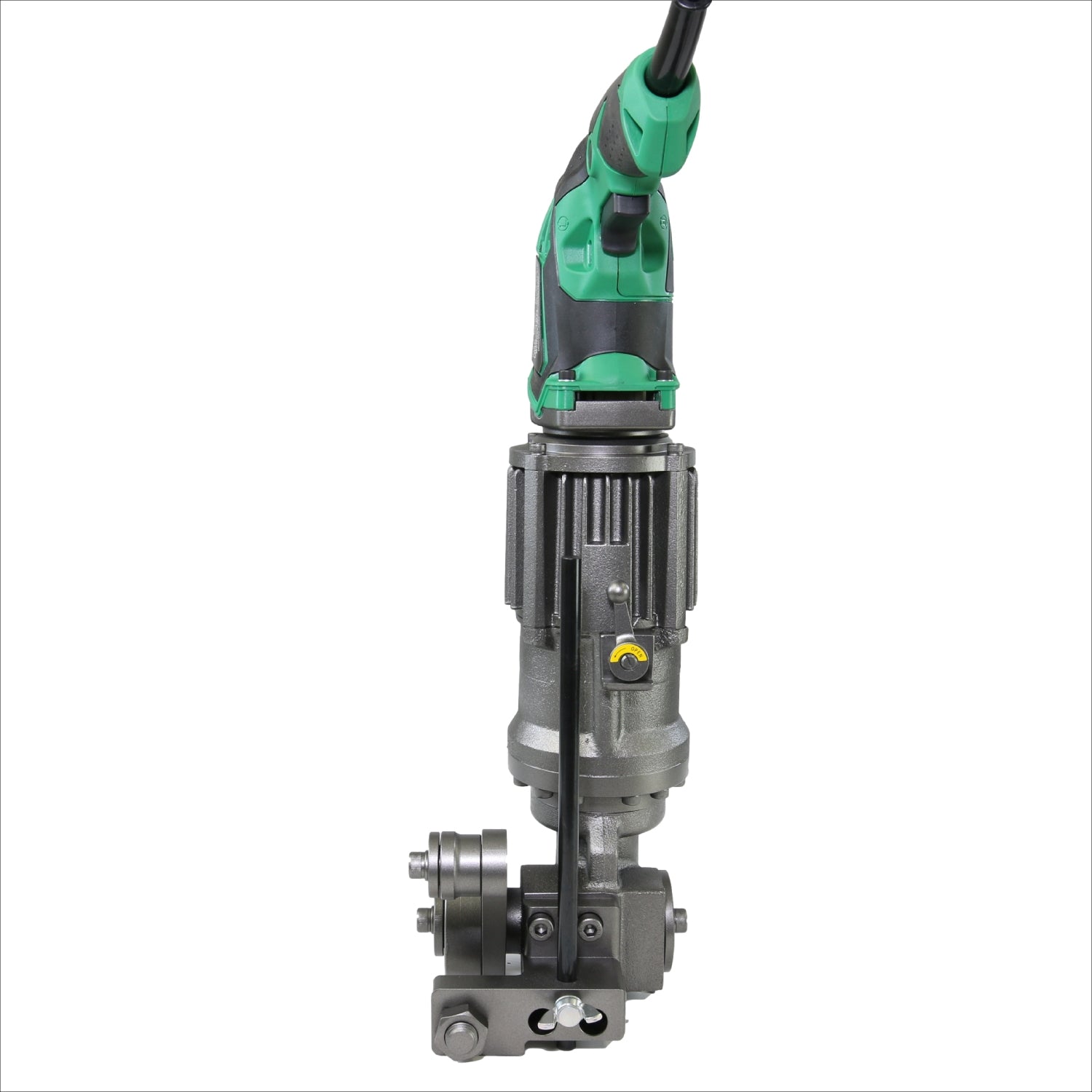

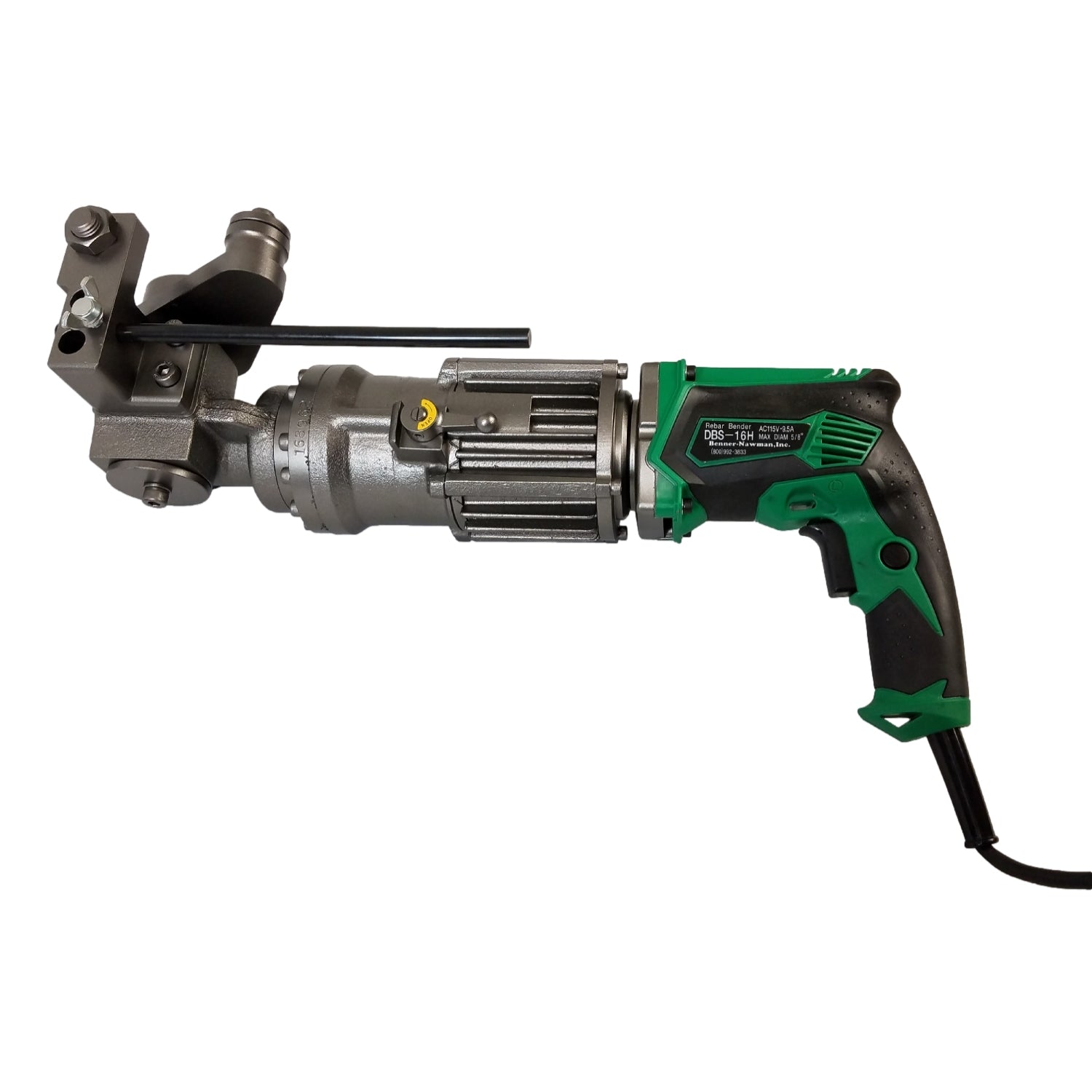

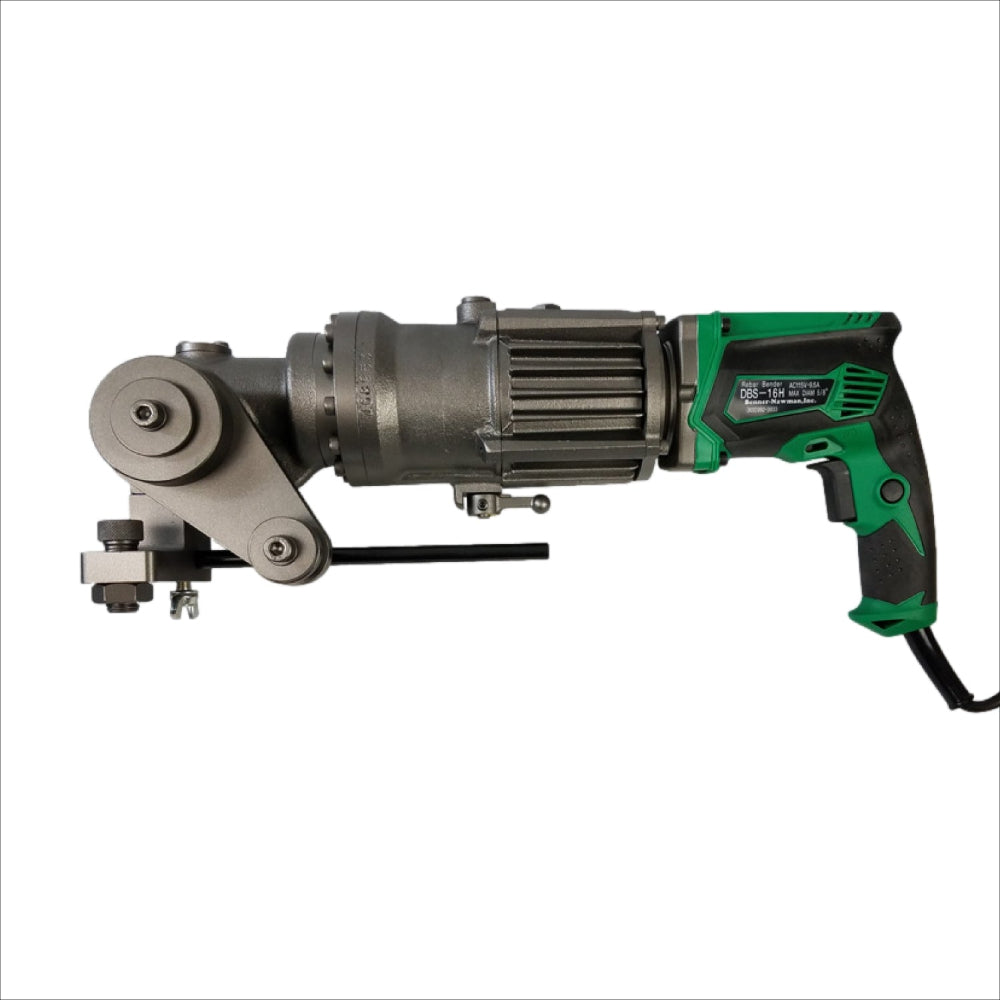

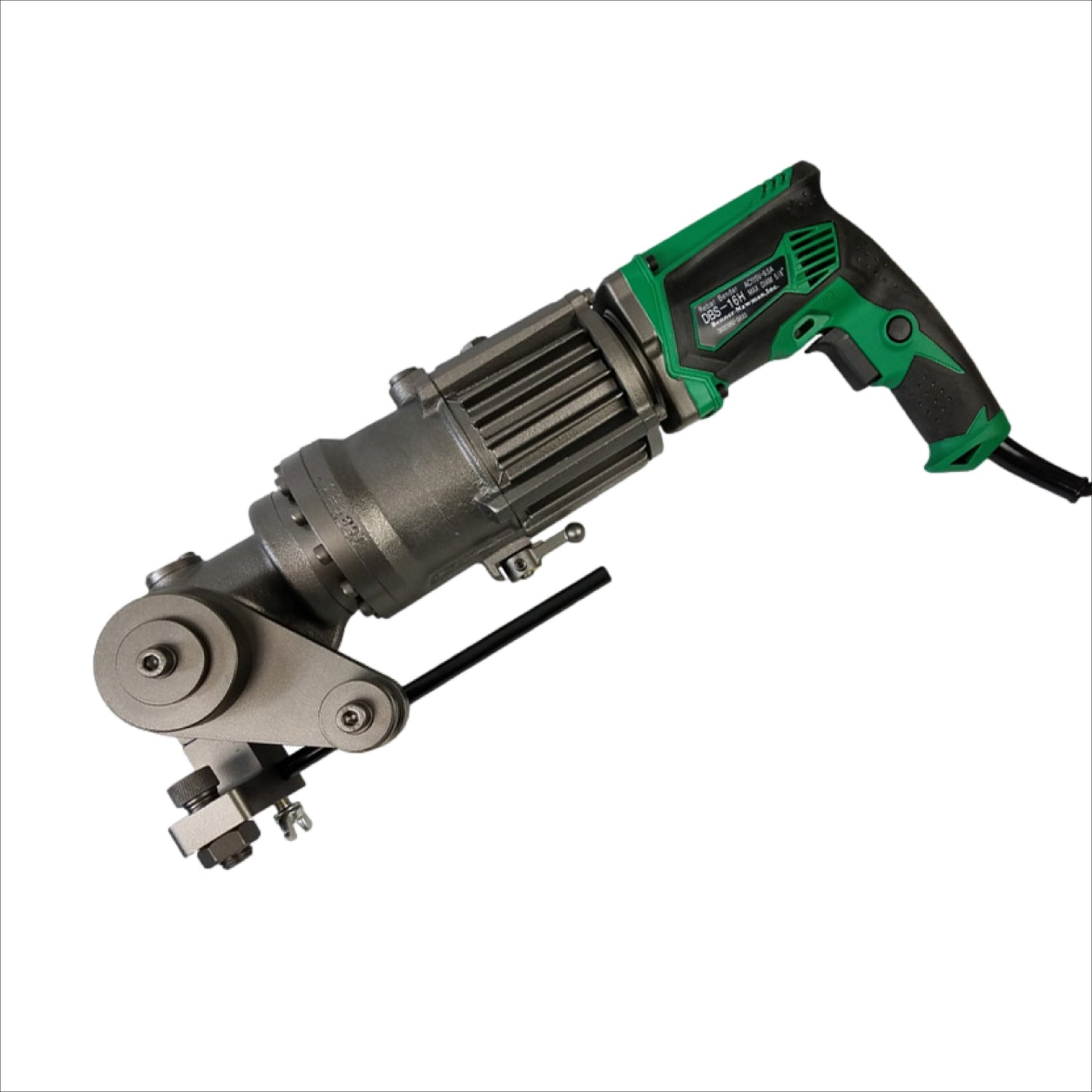

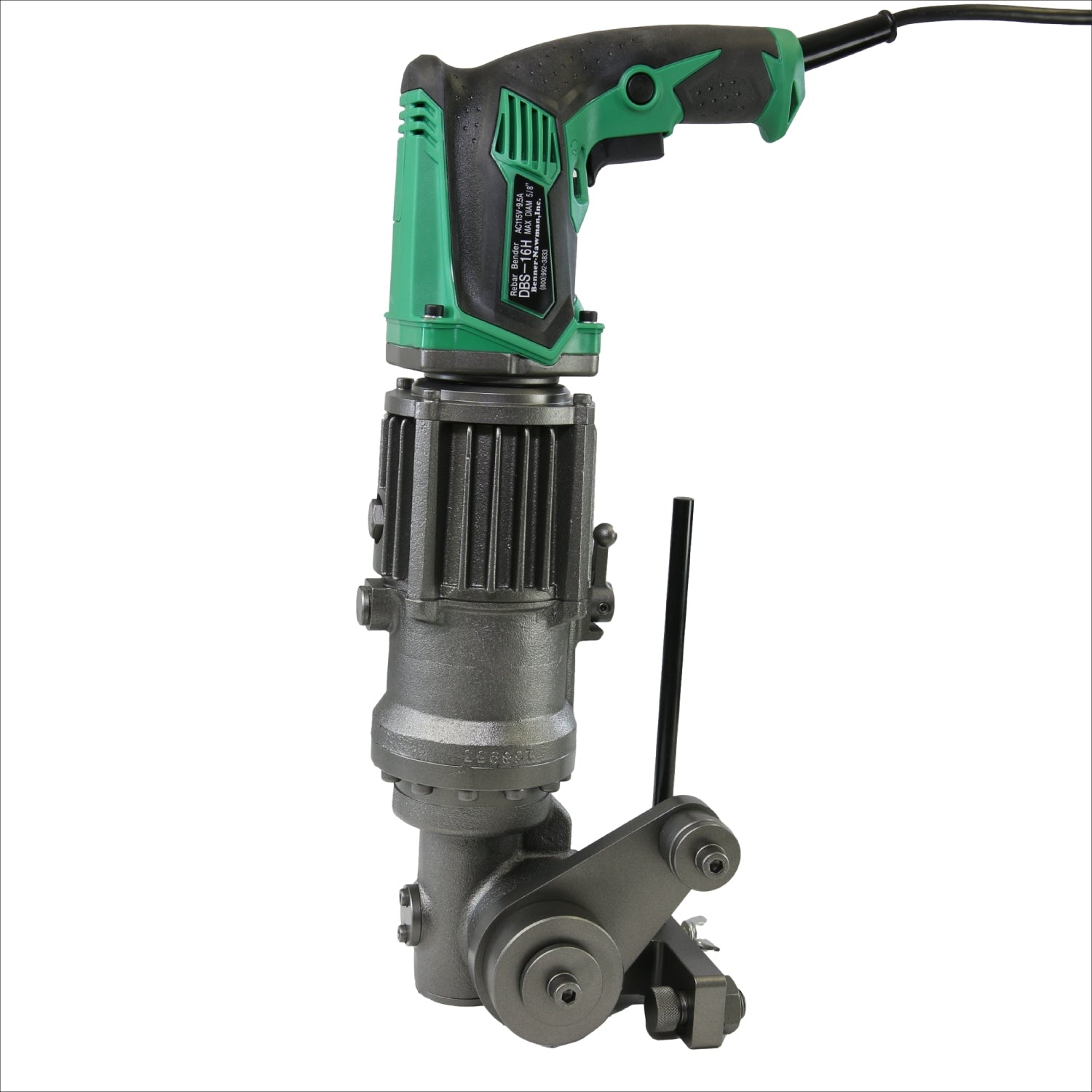

The DBS-16H #5 In-Place Rebar Bender from BN Products-USA, LLC is an electric/hydraulic hand-held tool engineered for bending rebar directly on the job site - where pre-pour bending simply cannot be performed. Designed for demanding applications like block wall construction and bridge construction, this corded rebar bending tool delivers a full 1-90 deg. bend in under four seconds, handling rebar up to #5 (5/8 in.) grade 60. Combining serious bending power with a lightweight, portable design, it gives crews the ability to reach difficult bending locations without sacrificing speed or capacity.

Key Features

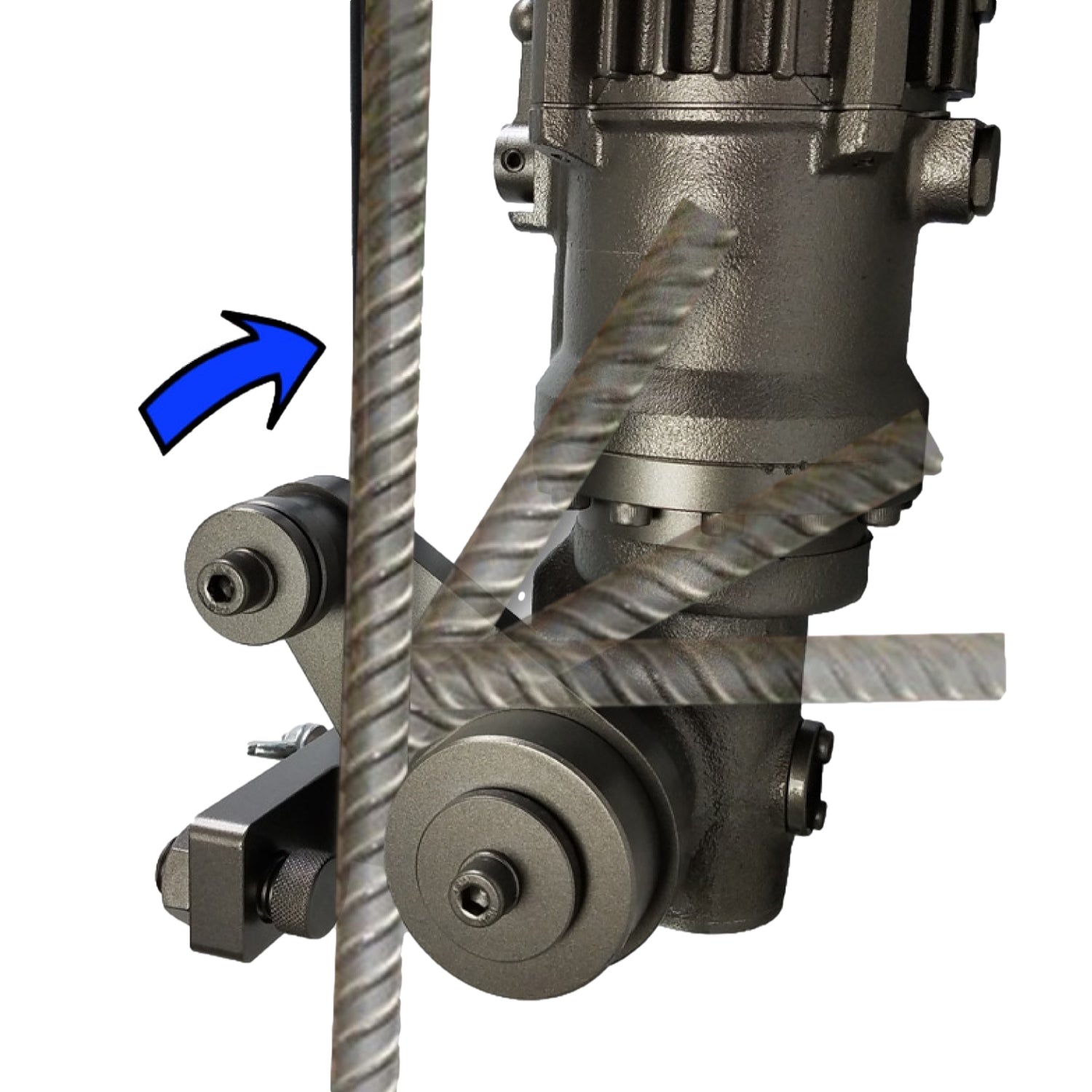

• Bends rebar up to 90 deg. in only 4 seconds - keeps the job moving fast without delays at difficult bending points
• Handles rebar up to #5 (5/8 in.) grade 60 - covers the most common rebar sizes used in block wall and bridge construction
• In-place bending capability - solves the problem of bending tails and post-pour rebar where pre-pour bending is not an option
• Lightweight and portable at 26.5 lbs. - allows access to confined, elevated, or hard-to-reach bending applications on the job site
• Powered by a standard 120V corded power source - no special electrical setup required, plugs into standard job site power
• Bending radius rated for 1.25 in. (R31) - provides consistent, code-compatible bends on every use
• Electric/hydraulic drive system - delivers smooth, controlled bending force without the bulk of a full hydraulic power unit

Why This Product

• Built for in-place rebar bending where pre-pour bending cannot be performed - eliminates the need to cut and replace incorrectly positioned rebar, saving both time and material cost on block wall and bridge projects
• At only 26.5 lbs., this tool reaches difficult-to-access bending locations that larger, stationary benders cannot - giving crews flexibility across the full job site
• A full 1-90 deg. bend in under four seconds means faster cycle times and higher productivity compared to manual bending methods
• Plugs into a standard 120V outlet - no dedicated power circuits or generator upgrades needed, making setup simple on any job site

Specifications

• Manufacturer: BN Products-USA, LLC
• Model Number: DBS-16H
• Bending Capacity: #5 (5/8 in.) grade 60 rebar
• Bending Range: 1-90 deg.
• Bending Speed: Less than 4 seconds
• Bending Radius: 1.25 in. (R31)
• Power Source: 120V corded electric/hydraulic
• Weight: 26.5 lbs.
• Product Type: Hand-held, corded electric/hydraulic rebar bending tool

What's Included

• BN DBS-16H #5 In-Place Rebar Bender
• Cutting blocks
• Hydraulic oil
• Toolkit

Frequently Asked Questions

What is the maximum rebar size this tool can bend?

The DBS-16H is rated to bend rebar up to #5 (5/8 in.) grade 60. It is not intended for rebar larger than #5.

What type of power source does the DBS-16H require?

The DBS-16H operates on a standard 120V corded power source, making it compatible with typical job site electrical outlets without any special wiring or dedicated circuits.

What applications is this rebar bender best suited for?

The DBS-16H is specifically designed for in-place rebar bending tasks - particularly bending tails in block wall construction and bridge construction - where pre-pour bending cannot be performed. Its lightweight and portable design also makes it well suited for confined or hard-to-reach bending locations.

How quickly does the DBS-16H complete a full bend?

The DBS-16H completes a full 1-90 deg. bend in less than four seconds, supporting fast cycle times and efficient workflow on the job site.
