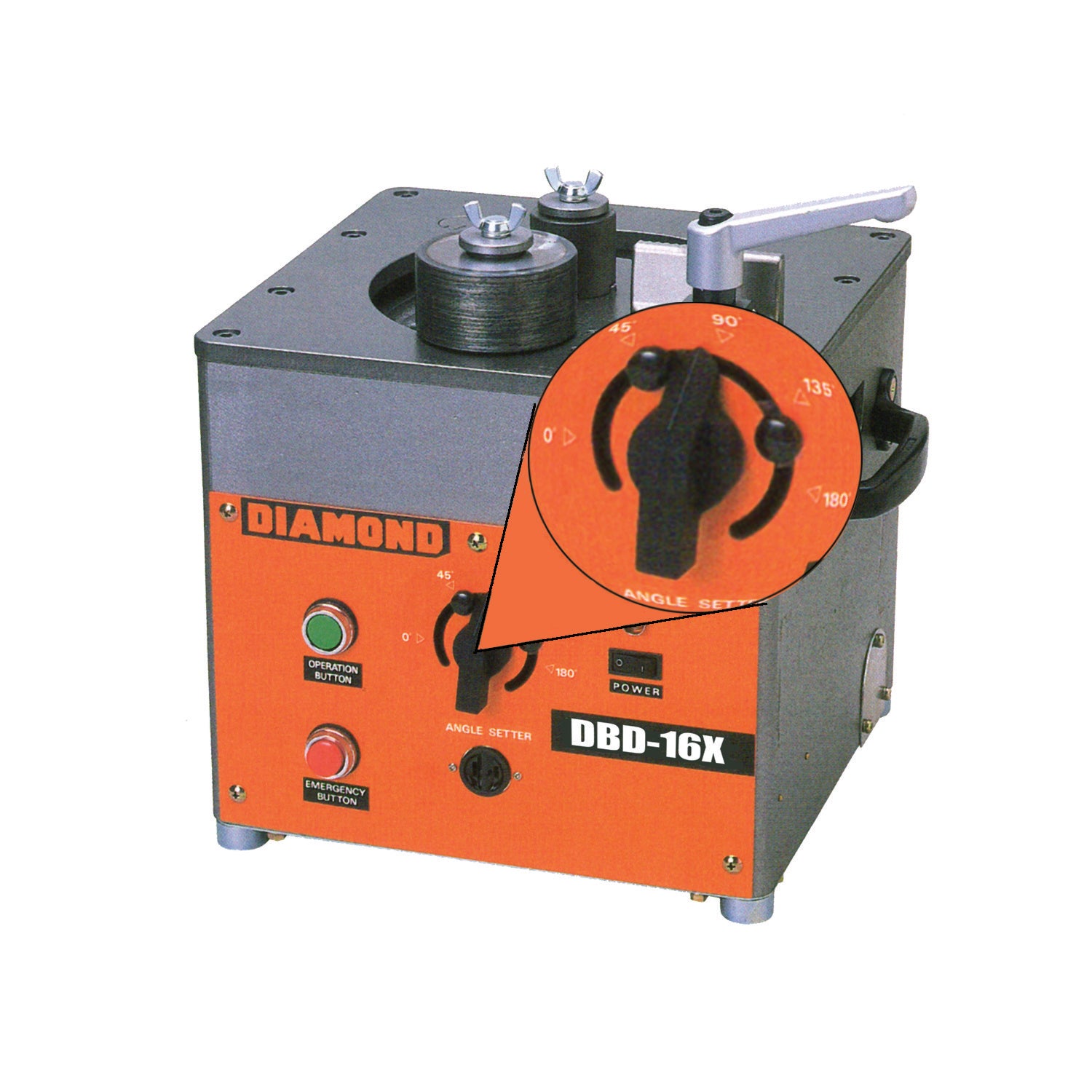

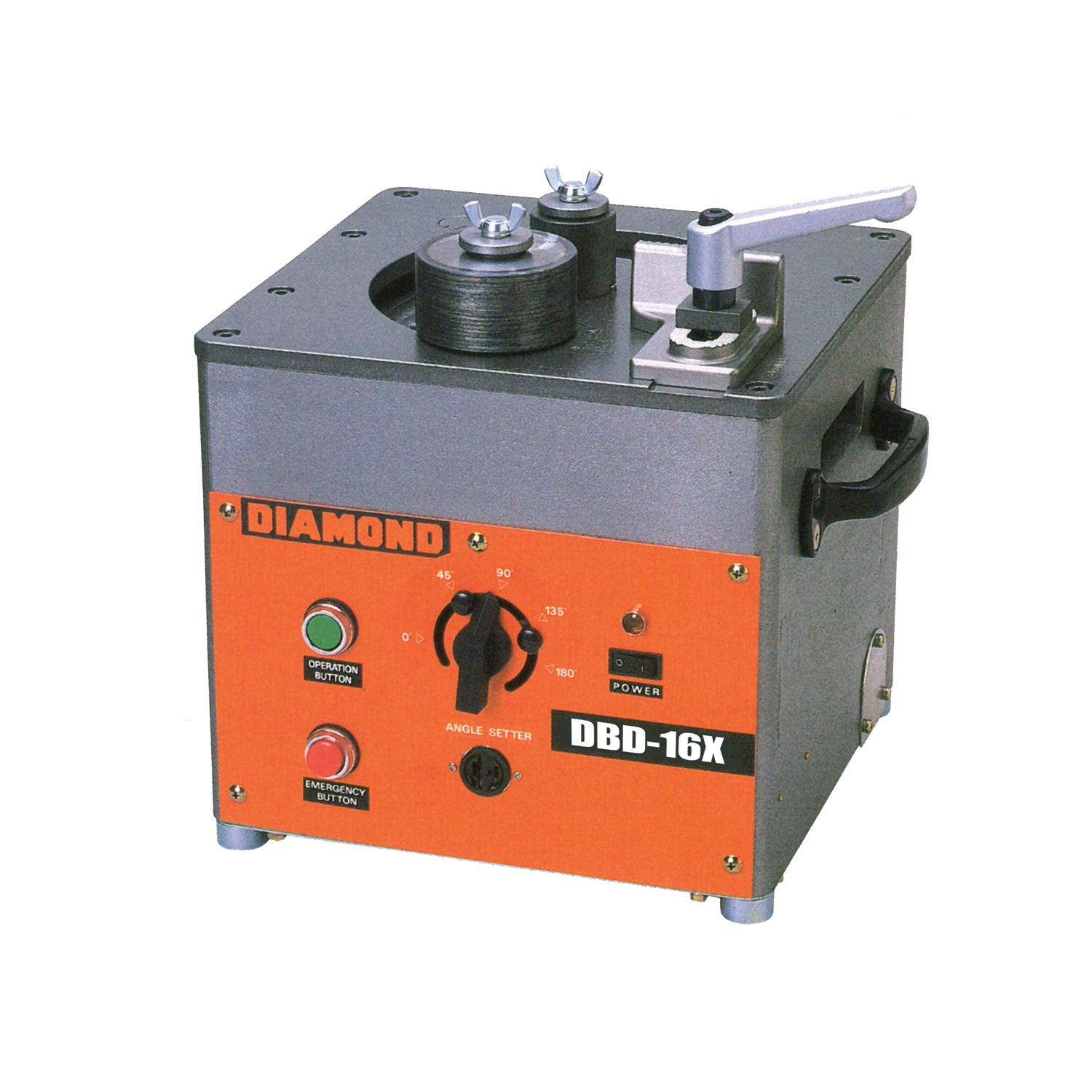

The BN Products-USA, LLC Diamond Heavy-Duty Rebar Bender (DBD-16X) is a portable, table-style electric mechanical bender built to handle rebar up to #5 (5/8 in.) Grade 60 at the job site or in the shop. Designed to save valuable man-hours on demanding concrete reinforcement work, this heavy-duty unit combines dial-precise angle control with multi-bar bending capacity - giving contractors and fabricators the speed and accuracy needed to keep projects on schedule. Whether you are bending stirrups, ties, or custom shapes, the DBD-16X delivers consistent, repeatable results bend after bend.

Key Features

• Electric-mechanical drive system - provides consistent bending power for rebar up to #5 (5/8 in.) Grade 60, reducing physical strain and speeding up production compared to manual bending
• Dial-type angle selector adjustable from 0-180 deg. - lets operators dial in any angle with precision, eliminating guesswork and reducing rebar waste from overbends or underbends
• Preset angle lock for repeat bends - once the desired angle is set, every subsequent bend matches exactly, ensuring uniformity across large quantities of bent rebar
• Bends multiple bars at once - handles (3) each #3 rebar, (2) each #4 rebar, or (1) each #5 rebar per cycle, maximizing throughput and cutting the time spent on repetitive bending tasks
• Emergency stop switch included as a standard feature - allows operators to halt the bending cycle instantly, supporting safer working conditions on the job site or in the shop
• Two side lifting handles built in - make it easier to reposition this 148 lb. machine around the job site without additional lifting equipment
• Foot pedal control switch included - enables hands-free operation so the operator can hold and guide the rebar safely while the bend is being made
• Ships with a set of (6) bending rollers in a steel carrying case plus a tool kit - everything needed to start bending is included out of the box, with organized storage to protect the rollers during transport

Why This Product

• Handles the full range of common rebar sizes in one machine - by accommodating #3, #4, and #5 rebar (including up to Grade 60), the DBD-16X eliminates the need for multiple benders on a single project
• The preset angle lock combined with a 0-180 deg. dial selector means fabricators can produce large runs of identically bent pieces without stopping to re-measure, directly reducing labor time and material errors
• Portable table-style design with integrated lifting handles makes it practical to use both on the job site and in a fabrication shop, giving contractors flexibility in where and how they set up their workflow
• Foot pedal hands-free operation and an emergency stop switch work together to keep operators in control throughout every bend, supporting safer, more efficient two-handed rebar handling

Specifications

• Manufacturer: BN Products-USA, LLC
• Model Number: DBD-16X
• Product Type: Table-style Rebar Bender
• Maximum Rebar Size: #5 (5/8 in.) Grade 60
• Bending Capacity: (3) each #3, (2) each #4, or (1) each #5 rebar at one time
• Bending Angle Range: 0-180 deg.
• Drive Type: Electric-mechanical
• Number of Bending Rollers Included: 6
• Weight: 148 lb.

What's Included

• BN DBD-16X #5 (5/8 in.) Diamond Heavy-Duty Rebar Bender
• Set of (6) bending rollers in a steel carrying case
• Tool kit
• Standard foot pedal control switch

Frequently Asked Questions

What is the maximum rebar size and grade the DBD-16X can bend?

The DBD-16X is rated to bend rebar up to #5 (5/8 in.) Grade 60. It can process (1) each #5 bar per cycle, (2) each #4 bars per cycle, or (3) each #3 bars per cycle in a single pass.

Can this bender be set to repeat the same angle automatically?

Yes. The DBD-16X includes a preset angle lock specifically designed for repeating the same angle bend across multiple pieces. Combined with the dial-type angle selector, operators can set any angle from 0-180 deg. and lock it in for consistent results throughout a production run.

What is included with the DBD-16X when it ships?

The unit ships complete with a set of (6) bending rollers stored in a steel carrying case, a tool kit, and a standard foot pedal control switch for hands-free operation. No additional bending accessories are needed to get started.

Does the DBD-16X have any built-in safety features?

Yes. An emergency stop switch is a standard feature on the DBD-16X, allowing the operator to halt the bending cycle immediately if needed. Two side lifting handles are also integrated into the machine to make repositioning safer and easier.
