Product Description

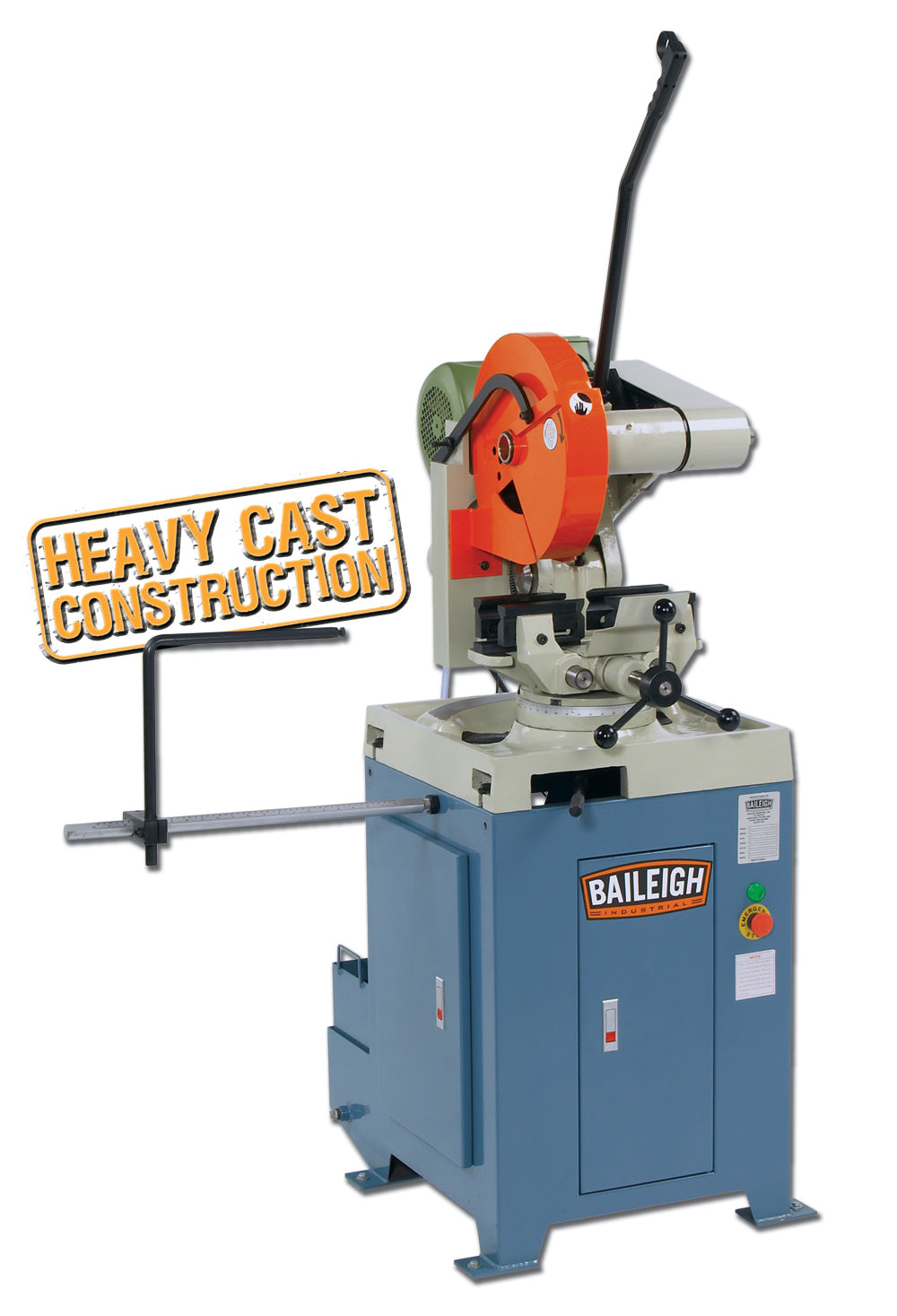

The Baileigh Manual Cold Saw CS-355M is a high-speed cold saw engineered for clean, precise cuts in soft metals like aluminum and copper. Running at 3,200 RPM with a robust 5.5 hp motor, this machine delivers professional-grade performance with a self-centering vise system and flood coolant to protect both the workpiece and the blade.
Key Features
- Accepts up to a 14" blade for versatile cutting capacity
- Maximum cutting capacity of 4.25" round tube at 90 deg.
- Miters 45 deg. right and 90 deg. left, making it ideal for slotting applications
- 5.5 hp motor drives a belt pulley system to achieve maximum RPMs as efficiently as possible
- Operates on 220-volt 3-phase power
- Design based on the proven CS-350M cold saw, known for its reliability over many years of cutting
- Self-centering American-style vise automatically accommodates different diameters of tube or pipe without manual adjustments
- Floating vise clamp independently holds the jaws on both the left and right sides of the saw blade
- Vise securely holds both sides of the cut material to extend blade life by preventing material from dropping into the rotating blade
- Stop rod allows easy setup of repeatable lengths for production runs
- Heavy cast iron base keeps the machine stable for accurate cuts throughout the saw's lifetime of use
- Flood coolant system maintains high cut quality and helps blades last longer
Specifications
- Brand: Baileigh
- MPN: BA9-1002589
- Model: CS-355M
- Speed: 3,200 RPM
- Motor: 5.5 hp
- Max Blade Size: 14"
- Max Round Tube Capacity at 90 deg.: 4.25"
- Miter Range: 45 deg. right, 90 deg. left
- Power Requirement: 220-volt 3-phase
- Base Material: Heavy cast iron
- Country of Origin: Taiwan
Frequently Asked Questions
- What types of materials is the CS-355M designed to cut?
- The CS-355M is designed for cutting soft metals such as aluminum and copper. Its 3,200 RPM speed is optimized to produce clean, precise cuts in these materials without gumming up the blade.
- What power supply does the CS-355M require?
- The CS-355M runs on 220-volt 3-phase power. Be sure your facility has the appropriate electrical supply before installation.
- How does the vise system protect the blade and workpiece?
- The floating vise clamp independently holds the jaws on both the left and right sides of the saw blade. This secures both sides of the cut material so neither piece drops into the rotating blade, which extends blade life and improves cut quality. The self-centering American-style vise also eliminates the need to make manual adjustments when switching between different diameters of tube or pipe.
- Can the CS-355M be used for production runs with consistent cut lengths?
- Yes. The CS-355M includes a stop rod that allows you to quickly and easily set up repeatable lengths, making it well-suited for production run applications where consistent cuts are required.
This item will be shipped to you directly from the manufacturer.
Processing and fulfillment times are subject to manufacturer availability. If there are any delays, you will be contacted by us with a more accurate delivery timeframe.
FREIGHT SHIPMENTS
It is important to assess the product being shipped against your location and material-handling capabilities.
Please be aware that your location needs to be prepared to properly handle and sign for freight shipments. You need to have access to a dock location, a forklift or the ability to unload the product from the freight carrier's trailer.
If your location does not have a traditional loading dock or forklift to unload your LTL freight out of the trailer, a Lift gate service will be required. There will be an additional charge for the service. It varies by carrier and even by market with different carriers. It often depends on the supply and demand of lift gate equipped trucks in your area.
Some machines require Flatbed shipping. There will be an additional charge for this service. Flatbed shipping is for the transportation of cargo that cannot be loaded or unloaded from a dock, or does not fit within the dimensions of standard truck trailers. A flatbed’s design allows for cranes and forklifts to load goods from all angles.
If a shipment is too heavy or the footprint (i.e., panel saws, metalworking lathes, mill/drills) is too large to ship via small parcel carrier (USPS, UPS or FedEx), it is shipped via a freight carrier. Freight shipments are considered tail gate deliveries, meaning that the driver is only responsible for moving the shipment to the rear of the trailer and will not assist with unloading.
For non-commercial deliveries, the freight carrier will contact you to schedule a delivery window and confirm if lift gate services are required. If lift gate service is requested, the driver is responsible for lowering the product to the ground during delivery. Freight shipments delivered to a residential location are considered curb side deliveries, meaning the driver will make the delivery in the street at the end of the customer’s driveway. Freight Carriers are not required to enter driveways to make residential deliveries due to liability and safety issues.
Although most deliveries go smoothly, sometimes there are exceptions beyond our control. Machines weighing over 2,000 pounds, bulky and oversized machines with a large footprint may not be able to be delivered via a lift gate for risk of injury or damage to the machine. There are also inaccessible remote, residential or high density urban areas that freight carriers cannot safely access. If encountered, such shipments are available for dock delivery or will be required to be picked up from the carrier’s terminal.
If you have any questions about freight delivery options, contact us at info@FactoryDirectSupplyOnline.com
