Product Description

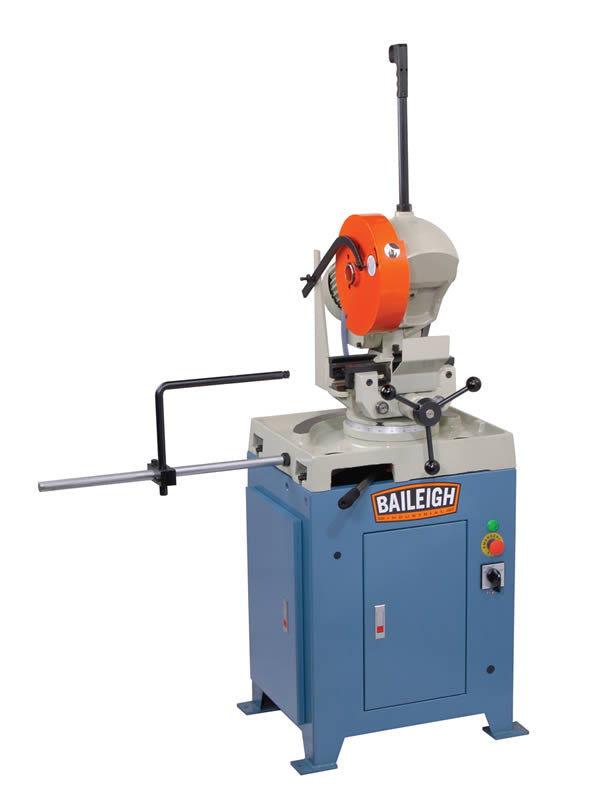

The Baileigh CS-275M Manual Cold Saw is a professional-grade circular cold saw engineered for fabricators who demand precise, burr-free cuts shift after shift. Powered by a robust 3 hp motor and equipped with a flood coolant system, self-centering American-style vise, and a heavy folded steel base, this machine delivers the rigidity and repeatability required for demanding production environments including marine rails, hand railings, playground equipment, and chassis fabrication work.
Key Features
- Accepts an 11" blade with a 2.75" round tube capacity at 90 deg.
- Miters 45 deg. right and 90 deg. left, perfect for slotting applications
- 3 hp motor requires 220 volt 3-phase power
- Choose from 2 speeds depending on your material: between 60 rpm (mild steel) and 120 rpm (aluminum)
- Direct-drive head features all-metal gears, ground and hardened to last for many years
- Backlash adjustment ensures tight tolerances throughout the life of the saw
- Self-centering American-style vise keeps the material correctly aligned with the blade for perfect cuts
- Sturdy stop rod can move left or right to set up repeatable lengths for production runs
- Heavy folded steel base - larger and wider than our CS-275EU - stabilizes the machine for accurate, wobble-free cutting
- Flood coolant system helps the blade make burr-free cuts, takes strain off the operator, and enables the blades and saw to last longer
Specifications
- MPN: BA9-1002444
- Brand: Baileigh
- Blade Capacity: 11"
- Round Tube Capacity at 90 deg.: 2.75"
- Miter Range: 45 deg. right / 90 deg. left
- Motor: 3 hp
- Power Requirement: 220 volt, 3-phase
- Blade Speeds: 60-120 rpm (2 speeds)
- Drive Type: Direct-drive
- Country of Origin: Taiwan
Approved Applications
- Marine rails
- Playground equipment
- Hand railings
- Various chassis applications
- Other fabrication cutting jobs
Frequently Asked Questions
- What blade size does the CS-275M accept, and what is its maximum round tube capacity?
- The CS-275M accepts an 11" blade and has a maximum round tube capacity of 2.75" at 90 deg..
- What power supply is required to operate the CS-275M?
- The 3 hp motor requires 220 volt 3-phase power, so a compatible 3-phase electrical supply must be available at the installation site.
- How do I select the right cutting speed for my material?
- The CS-275M offers 2 selectable speeds. Use 60 rpm when cutting mild steel for controlled, precise results, and switch to 120 rpm when cutting aluminum to take advantage of the higher allowable speed for that material.
- How does the CS-275M maintain cut accuracy and repeatability over time?
- The direct-drive head uses all-metal gears that are ground and hardened for long-term durability, and a backlash adjustment feature ensures tight tolerances are maintained throughout the life of the saw. The self-centering American-style vise keeps material correctly aligned with the blade, while the sturdy stop rod - movable left or right - enables repeatable length settings for production runs.
