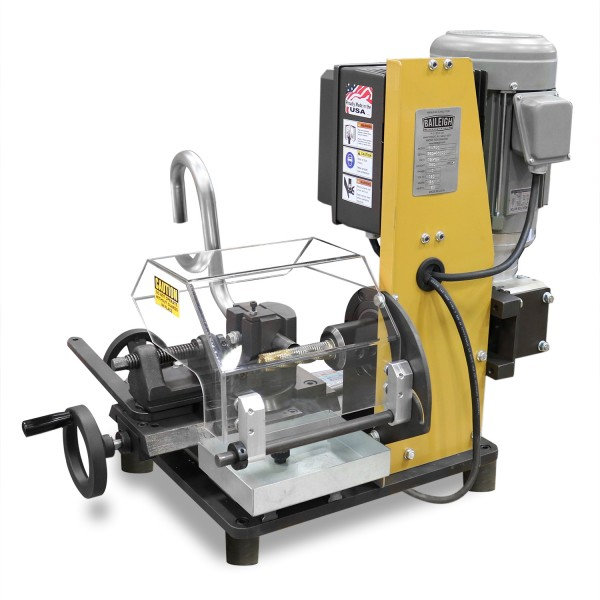

The Baileigh TN-700 Tube and Pipe Notcher by Baileigh Industrial is a dedicated notching machine built to free up your vertical mill for other work while delivering precise, repeatable notches for structural fabrication, racing and off-road chassis builds, steam pipe work, and more. Powered by a robust 2 hp motor and driven by an inverter-controlled variable-speed system, the TN-700 balances cutting power with long machine life - making it one of the most capable tube and pipe notchers available for professional shop and field use alike.

Key Features

• Made in the USA - built to demanding American manufacturing standards for long-term reliability.
• 2 hp motor on 115-volt power - runs on standard household current so you can operate it almost anywhere, including in the field.
• Notches up to 60 deg. - handle a wide range of compound angles for complex fabrication work.

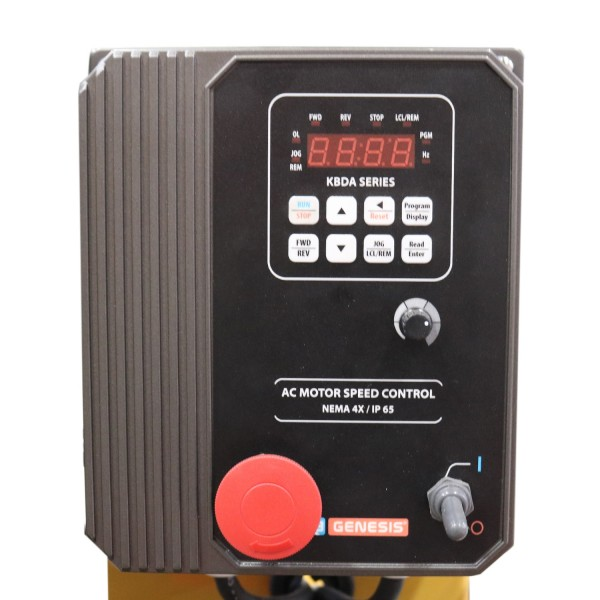

• Inverter driven variable speeds - allow for the optimum milling speed that balances cutting power with long machine life and low wear and tear.
• Digital readout for RPM, included - monitor spindle speed at a glance for precise, consistent cuts.

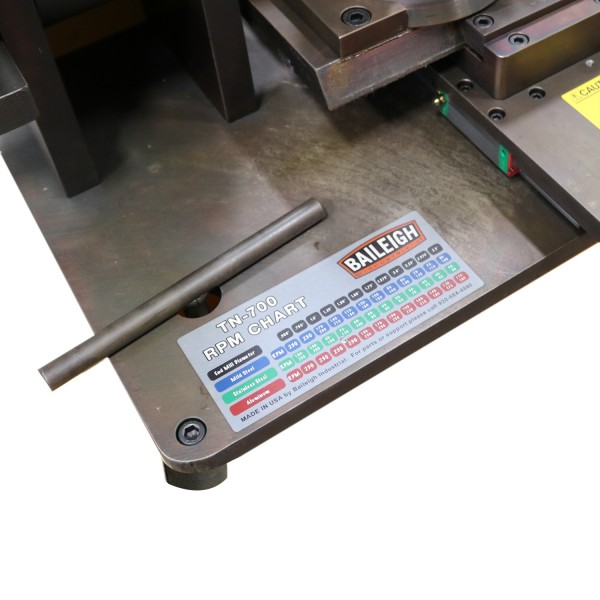

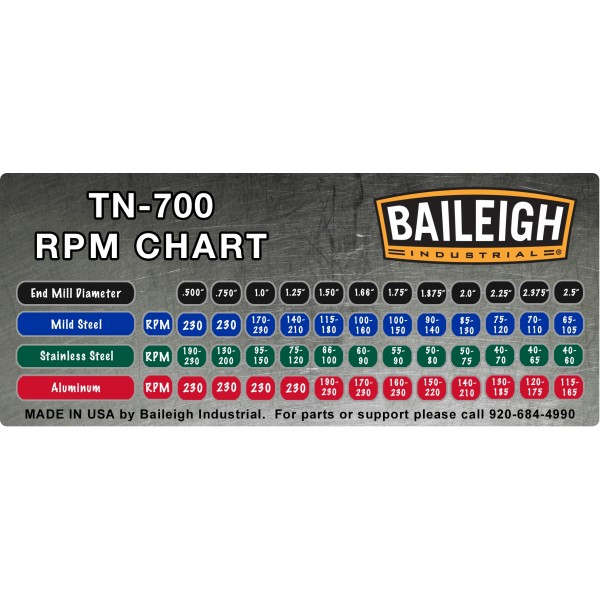

• Included speed chart - helps dial the perfect speed for your cut, taking the guesswork out of setup.

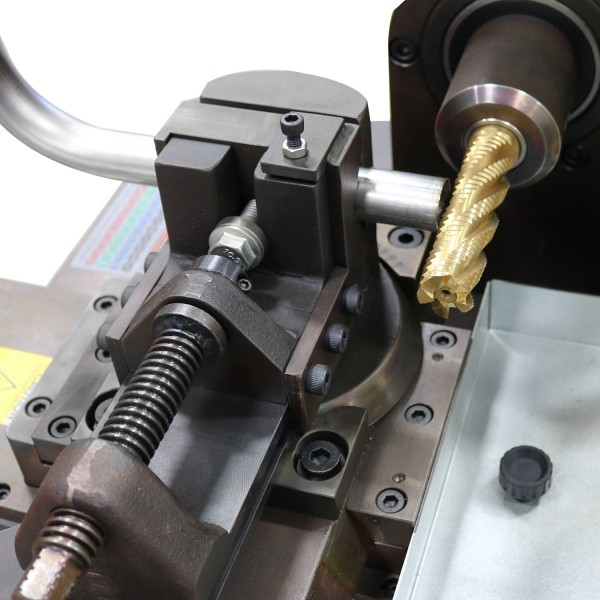

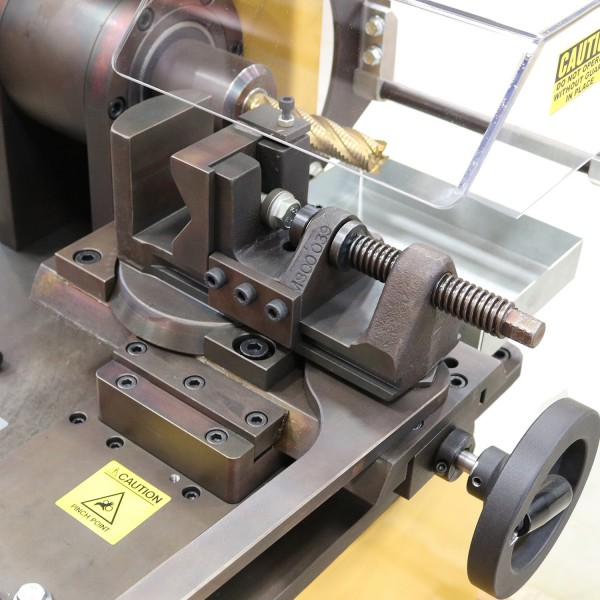

• Highly adjustable vise - adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position for virtually any workpiece.

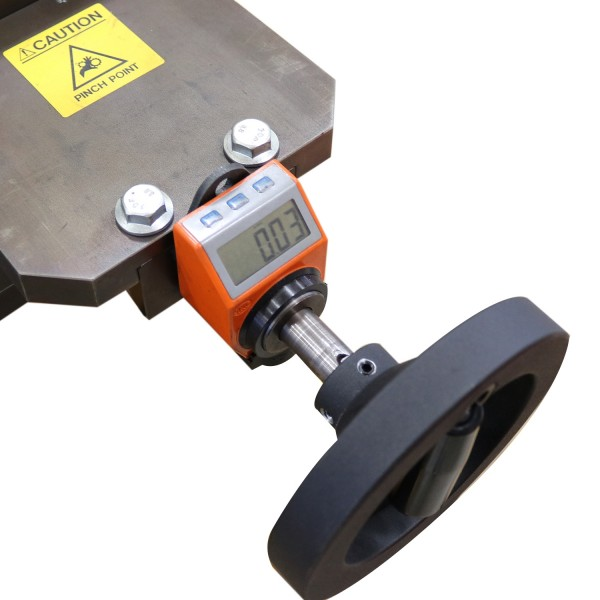

• Degree/angle-finder - makes it simple to check the angle and ensure repeatability from cut to cut.
• Cam lock for traditional notching - enables you to set your degrees; just move it in either direction to angle the notch for a quick, traditional setup.
• Heavy-duty cast iron framework - reduces vibration, prolongs machine life, and delivers more accurate results over years of hard use.

Specifications

• MPN: BA9-TN700
• Brand: Baileigh Industrial
• Motor: 2 hp
• Power Requirement: 115-volt
• Maximum Notch Angle: 60 deg.
• Speed Control: Inverter driven variable speed
• RPM Display: Digital readout (included)
• Vise Adjustment: X- and Y-axis control
• Frame Material: Heavy-duty cast iron
• Country of Origin: USA

Approved Applications

• Structural steel and metal fabrication work
• Racing and off-road chassis construction
• Steam pipe notching and fitting
• General tube and pipe notching across a broad range of industries

What's Included

• TN-700 Tube and Pipe Notcher
• Digital RPM readout
• Speed chart for optimal cut settings
• Spacer sleeve (for use with end mills smaller than 1.25")

Options

• Optional rolling stand available (sold separately)

Frequently Asked Questions

What is the maximum notch angle the TN-700 can achieve?

The TN-700 notches up to 60 deg., giving fabricators the flexibility to cut a wide range of compound angles for complex tube and pipe joints.

What power supply does the TN-700 require?

The TN-700 runs on standard 115-volt power via its 2 hp motor, which means you can operate it almost anywhere, including in the field - no special high-voltage wiring required.

How do I know I am running the machine at the right speed for my material?

The TN-700 includes both a digital RPM readout and an included speed chart that helps you dial the perfect speed for your cut. The inverter driven variable speed system lets you fine-tune the milling speed to balance cutting power with long machine life and low wear and tear.

Can I use smaller end mills with the TN-700?

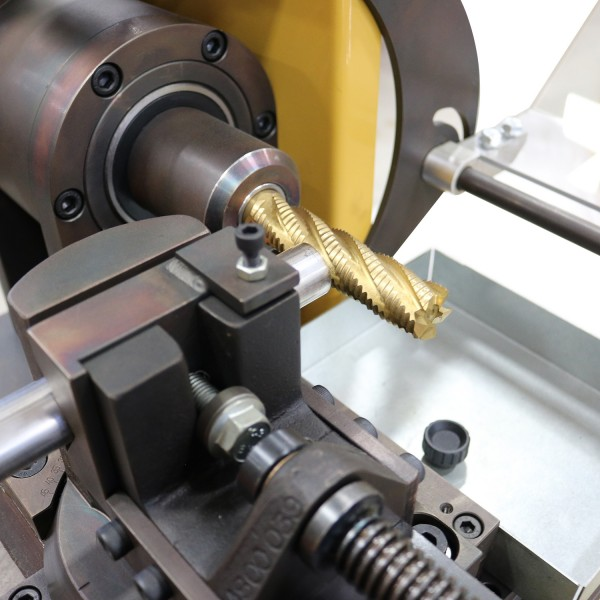

Yes. To use end mills smaller than 1.25", a spacer sleeve is included with the machine. Note that end mills themselves do not come with the TN-700 and must be sourced separately.

Note: End mill not included with the machine. To use end mills smaller than 1.25", use the included spacer sleeve. An optional rolling stand is available separately.
