Product Description

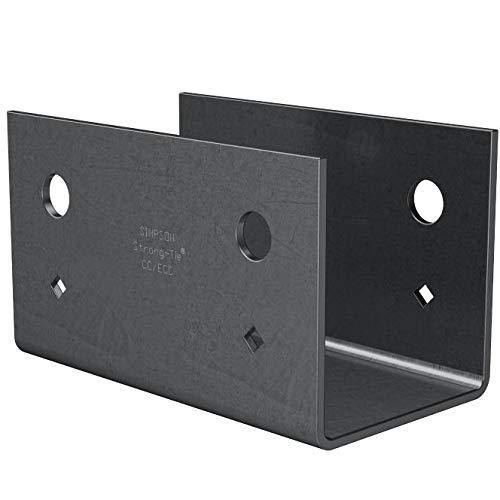

Simpson CCO4 CCO Column Cap (No Legs) for 4x Beam, 4 in. Height by Simpson Strong-Tie is engineered to deliver strong, reliable column-to-beam connections on top of steel columns and posts. The legless design enables field-welded attachment directly to steel columns, while the extended seat provides additional bearing surface area beyond each side of the column to effectively distribute beam loads and support the connection.
Key Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- For nominal 4x or 3-1/2 in. beam width
- Cap height of 4 in.
- Made from 7-gauge uncoated steel
Specifications
- MPN: CCO4
- Brand: Simpson Strong-Tie
- Member Size: 4x, 3-1/2 in.
- Cap Height: 4 in.
- Gauge: 7
- Finish: Uncoated Steel
- Coating: None
- Install With: (2) 5/8 in. diameter machine bolts
- Country of Origin: ZZ
Options
- Contact us for Configurable Options and Special orders
- For special, custom or rough-cut lumber sizes, provide dimensions.
- CCO may be ordered for field welding to pipe or other columns. Weld by designer.

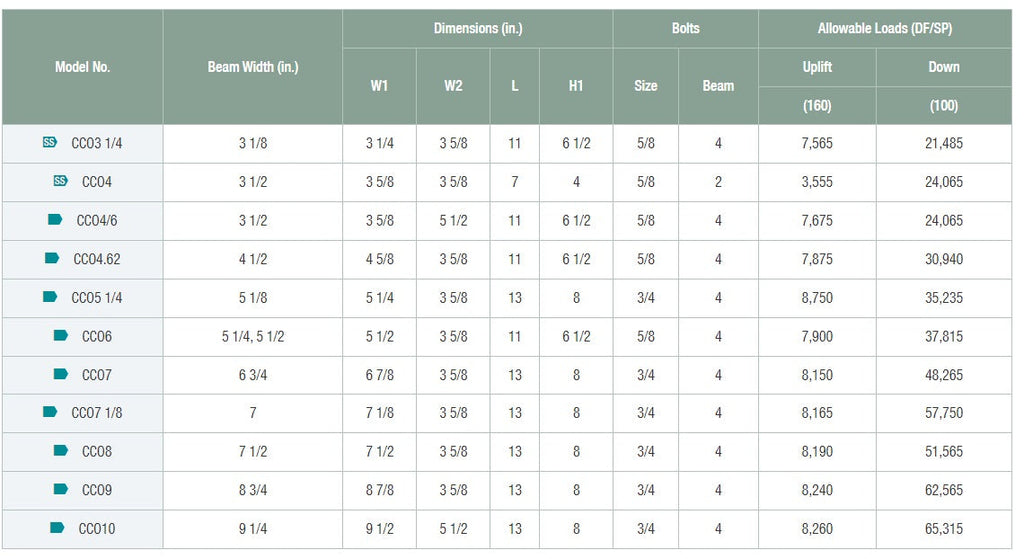

- See CCO Column Cap Load Table. See Table
- See CCO Column Product Guide.
Installation
- Use all specified fasteners; see General Notes
- Weld by designer
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2018 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
- Contact engineered wood manufacturers for connections that are not through the wide face
Frequently Asked Questions
- What beam width is the CCO4 designed to support?
- The CCO4 is designed for nominal 4x or 3-1/2 in. beam widths, making it compatible with standard dimensional lumber in that size range.
- Why does the CCO4 column cap have no legs?
- The legless design of the CCO4 allows for field-welded attachment directly to steel columns and posts, offering greater flexibility in steel column applications where a welded connection is preferred or required.
- How does the CCO4 perform under earthquake or high-wind conditions?
- The CCO4 features increased uplift load capacity specifically to address the demands of earthquake and wind loading, helping to maintain structural integrity under these dynamic forces.
- What fasteners are required to install the CCO4?
- Installation of the CCO4 requires (2) 5/8 in. diameter machine bolts. Diamond holes are also provided on the cap to allow for temporary fastening during the installation process, and bolt spacing meets NDS code requirements for optimal performance.
Downloads and Resources
Note: Product dimensions and/or screw or bolt holes may differ from picture.
