Product Description

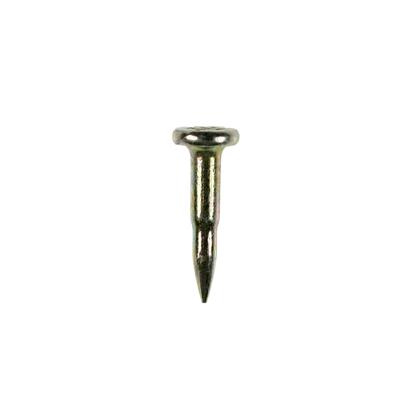

Simpson GDPS-75KT GDPS 3/4 in. Step-Shank Drive Pin for Gas-Actuated Concrete Nailer by Simpson Strong-Tie is a professional-grade fastener engineered for direct fastening into steel using gas-actuated concrete nailers. Featuring a patented step-shank design, these zinc-plated carbon steel pins deliver faster penetration and superior shear resistance, keeping demanding jobsite work moving with rugged reliability.
Key Features
- Designed for use with the Simpson Strong-Tie G3 and GCN-MEPMAGKT gas-actuated concrete nailers as well as with most major-brands
- Fasten to A36 and A572 steel

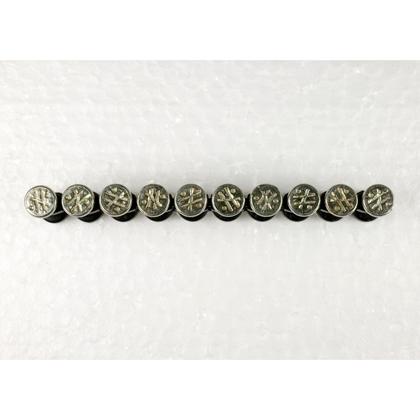

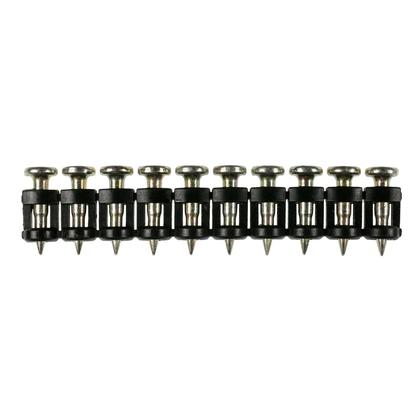

- Patented 10-fastener strip is designed with break-away plastic
- Smaller-diameter tip to facilitate easier penetration
- Larger-diameter upper shank to provide more shear resistance and successful installation
- Zinc-plated carbon steel construction for durability and corrosion resistance
- Extensively tested to ensure quality and performance in the field
Specifications
- MPN: GDPS-75KT
- Brand: Simpson Strong-Tie
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Length: 3/4 in.
- Head Diameter: 0.240 in.
- Shank Diameter: .118/.102 in.
- Country of Origin: China
Approved Applications
- Fastening into A36 structural steel
- Fastening into A572 high-strength low-alloy structural steel
- Use with Simpson Strong-Tie G3 gas-actuated concrete nailer
- Use with Simpson Strong-Tie GCN-MEPMAGKT gas-actuated concrete nailer
- Compatible with most major-brand gas-actuated nailers
What's Included
Each kit contains (1000) GDPS-75KT Step-Shank Pins, 1 fuel cell.
Frequently Asked Questions
- What nailers are these pins compatible with?
- These pins are designed for use with the Simpson Strong-Tie G3 and GCN-MEPMAGKT gas-actuated concrete nailers, and are also compatible with most major-brand gas-actuated nailers.
- What is the purpose of the step-shank design on these pins?
- The step-shank design features a smaller-diameter tip to facilitate easier penetration into the base material, while the larger-diameter upper shank provides more shear resistance and successful installation overall.
- What types of steel can these pins be fastened into?
- These drive pins are designed to fasten into A36 and A572 steel, both of which are widely used structural steel grades in construction and industrial applications.
- How are the pins packaged for use in the nailer?
- The pins are loaded in a patented 10-fastener strip designed with break-away plastic, allowing for efficient and reliable feeding in compatible gas-actuated nailers.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
