Product Description

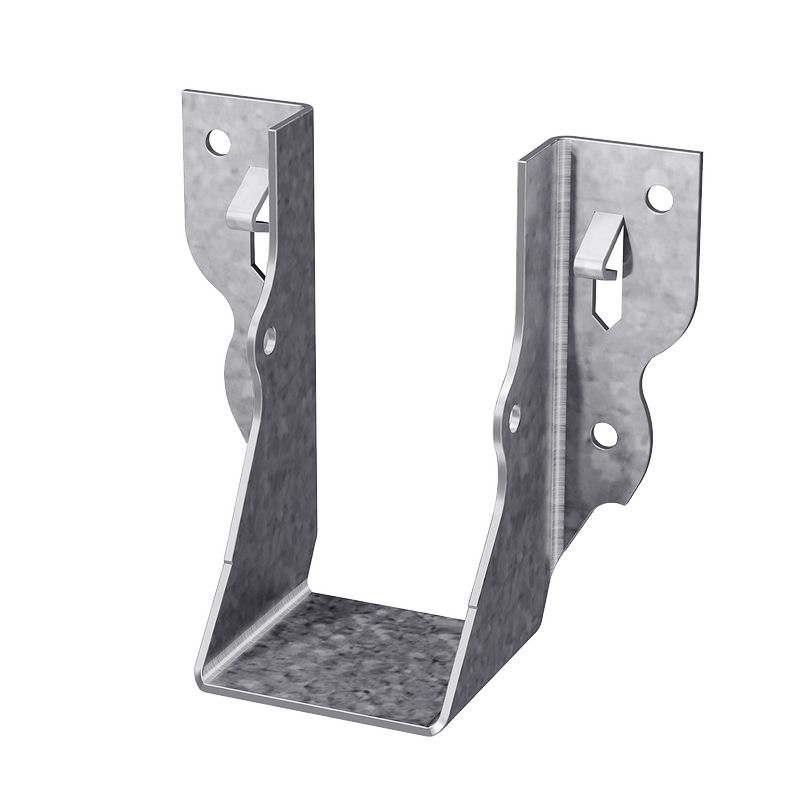

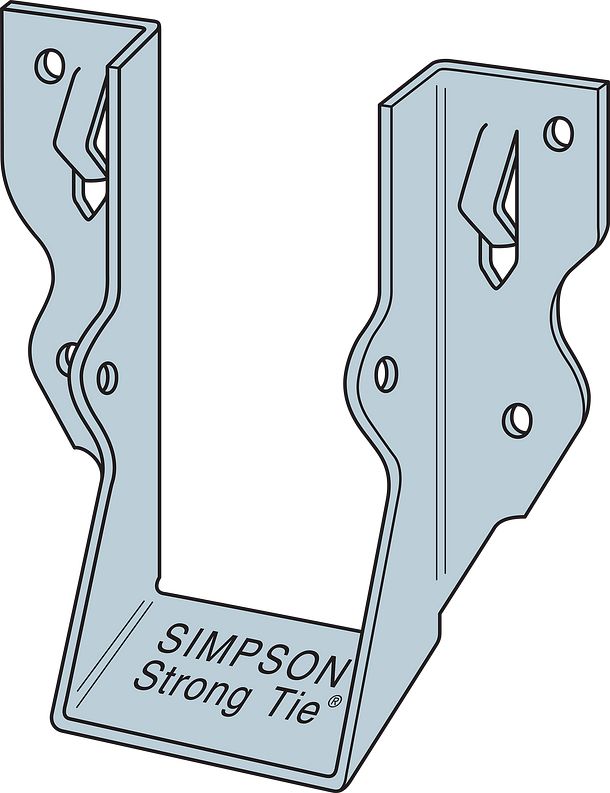

Simpson LU24R-18 LU Galvanized Face-Mount Joist Hanger for 2x4 Rough by Simpson Strong-Tie is engineered for joist-to-header installation in wood-framed construction. This face-mount hanger features speed prongs to temporarily position and secure the connector for easier and faster installation. The economical LU hanger is value engineered for strength, and is made from 18-gauge steel with a G90 galvanized coating for reliable corrosion resistance.
Key Features
- LU-series hangers are tested, load rated and code compliant
- The LU series installs using several fastener selections with tested allowable loads
- Precision-formed - engineered for installation ease and design value
- Speed prongs temporarily position and secure the connector for easier and faster installation
- Seat width: 2 in.
- Nominal joist size: 2x4 rough
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: LU24R-18
- Member Size: 2x4 rough
- Seat Width: 2 in.
- Height: 3-11/16 in.
- Gauge: 18
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Installation Fasteners (sold separately): Install with (4) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist
Approved Applications
- Joist-to-header connections in wood-framed construction
- Face-mount hanger applications with solid sawn lumber (DF/SP)
- Face-mount hanger applications with solid sawn lumber (SPF/HF)
- Face-mount hanger applications with rough lumber (DF/SP/SPF/HF)
- Joists sloped up to 1/4:12 - achieves full table loads
Frequently Asked Questions
- What size joist is the LU24R-18 designed for?
- The LU24R-18 is designed for a nominal joist size of 2x4 rough, with a seat width of 2 in.
- What fasteners are required to install the LU24R-18?
- Install with (4) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist. The LU series also installs using several fastener selections with tested allowable loads.
- Is the LU24R-18 compliant with building codes?
- Yes. LU-series hangers are tested, load rated and code compliant, making them suitable for use in regulated wood-framed construction projects.
- What corrosion protection does the LU24R-18 offer?
- The LU24R-18 features a G90 zinc galvanized coating, which provides extra corrosion resistance for enhanced durability in demanding environments.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
