Product Description

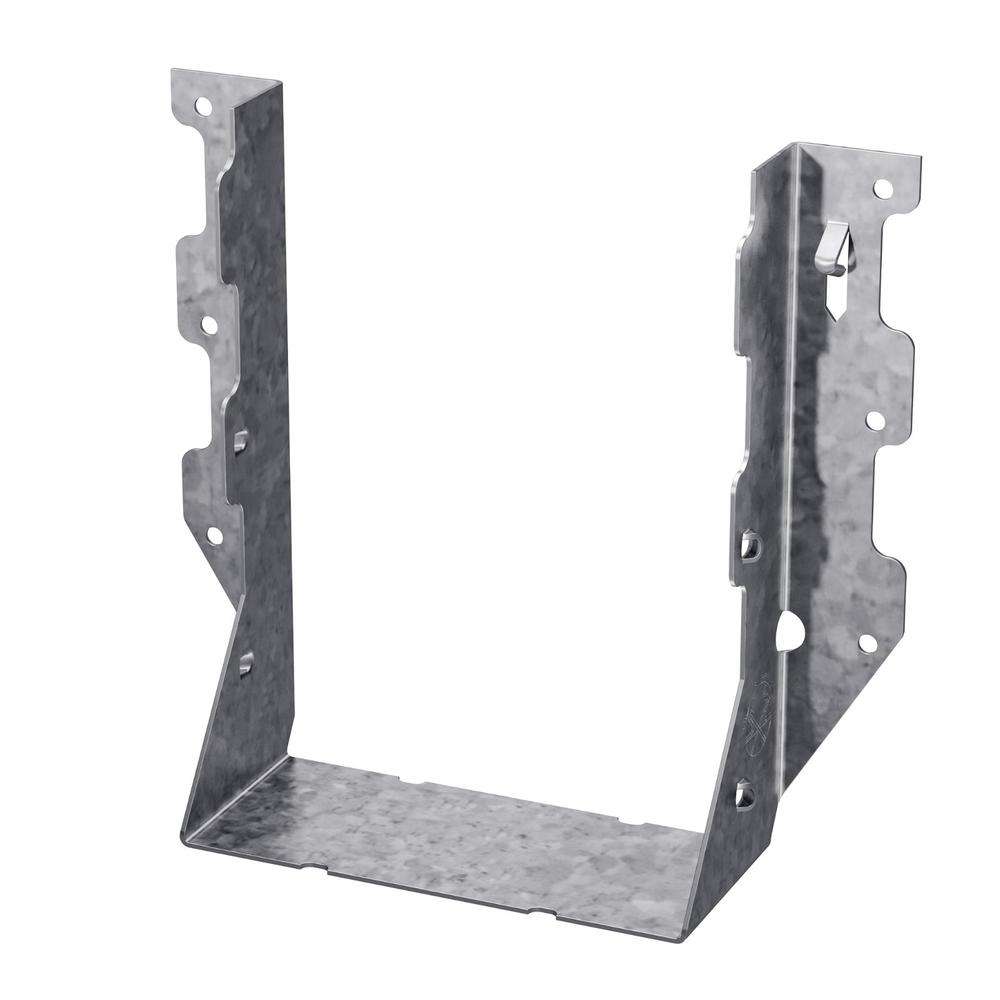

The Simpson Strong-Tie LUS28-3 LUS Galvanized Face-Mount Joist Hanger for Triple 2x8 is an easy-to-install, economical hanger engineered specifically for triple 2x8 lumber applications. Designed to provide support underneath the joist, rafter, or beam, this hanger delivers a strong, reliable connection through its patented double-shear nailing design, which distributes the load through two points on each joist nail for greater strength - allowing for fewer nails, faster installation, and the use of all common nails for the same connection.
Key Features
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Nominal joist size: Triple 2x8
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: LUS28-3
- Brand: Simpson Strong-Tie
- Member Size: Triple 2x8
- Gauge: 18
- Coating / Finish: Zinc Galvanized, G90
- Country of Origin: United States
Frequently Asked Questions
- What lumber size is the LUS28-3 designed for?
- The LUS28-3 is designed for a nominal joist size of Triple 2x8, making it the appropriate face-mount hanger when working with three-ply 2x8 lumber members.
- What fasteners should be used to install the LUS28-3?
- Install with Simpson Strong-Tie Strong-Drive SD Connector screws: (6) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (10) 0.162 in. x 3-1/2 in. Strong-Drive SCN Smooth-Shank Connector nails (Models: SD9112, SD9212, 16DHDG).
- What is the benefit of the double-shear nailing design on this hanger?
- The patented double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.
- What corrosion protection does the LUS28-3 offer?
- The LUS28-3 features a G90 zinc galvanized coating, which provides extra corrosion resistance, making it suitable for applications where moisture exposure is a concern.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specific details.
