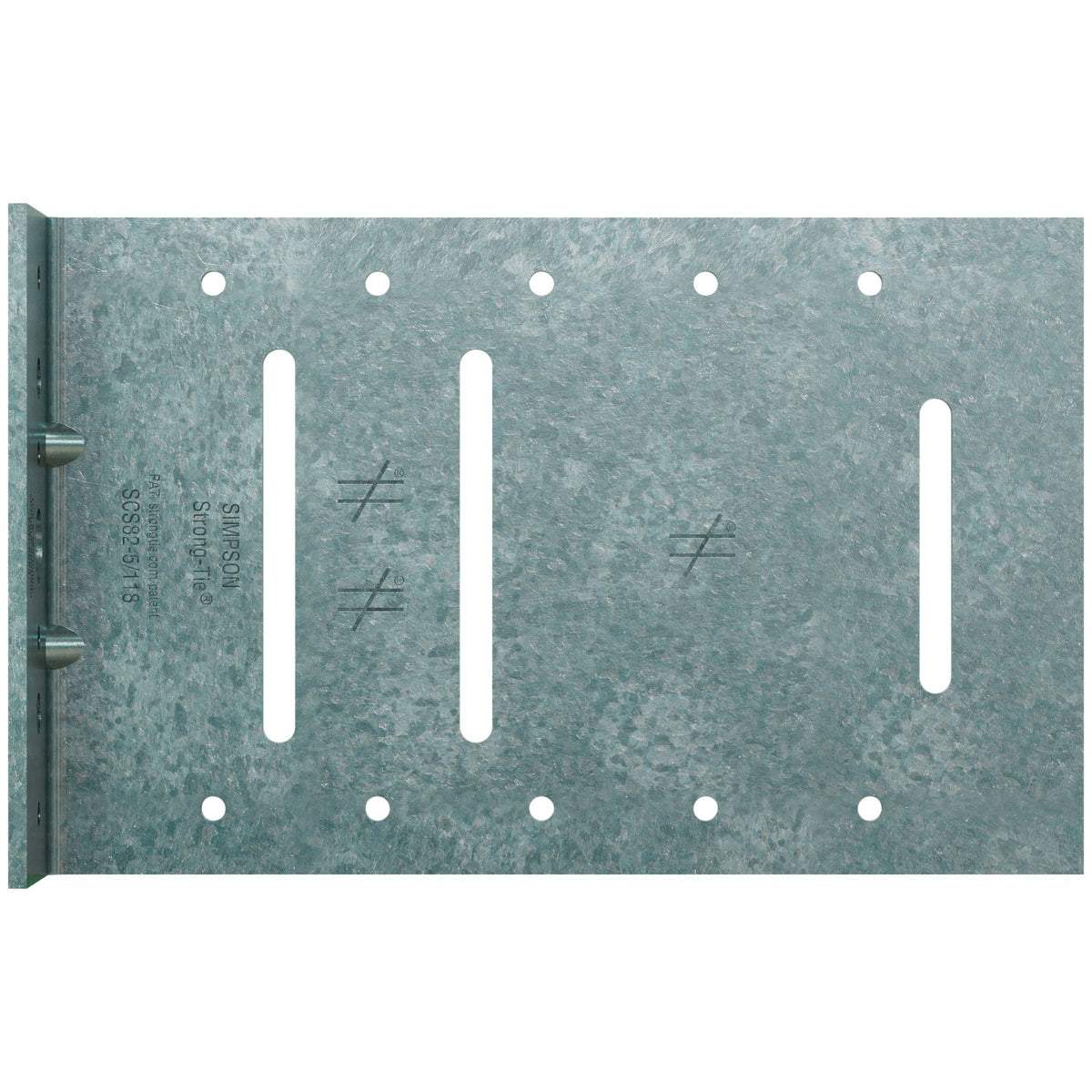

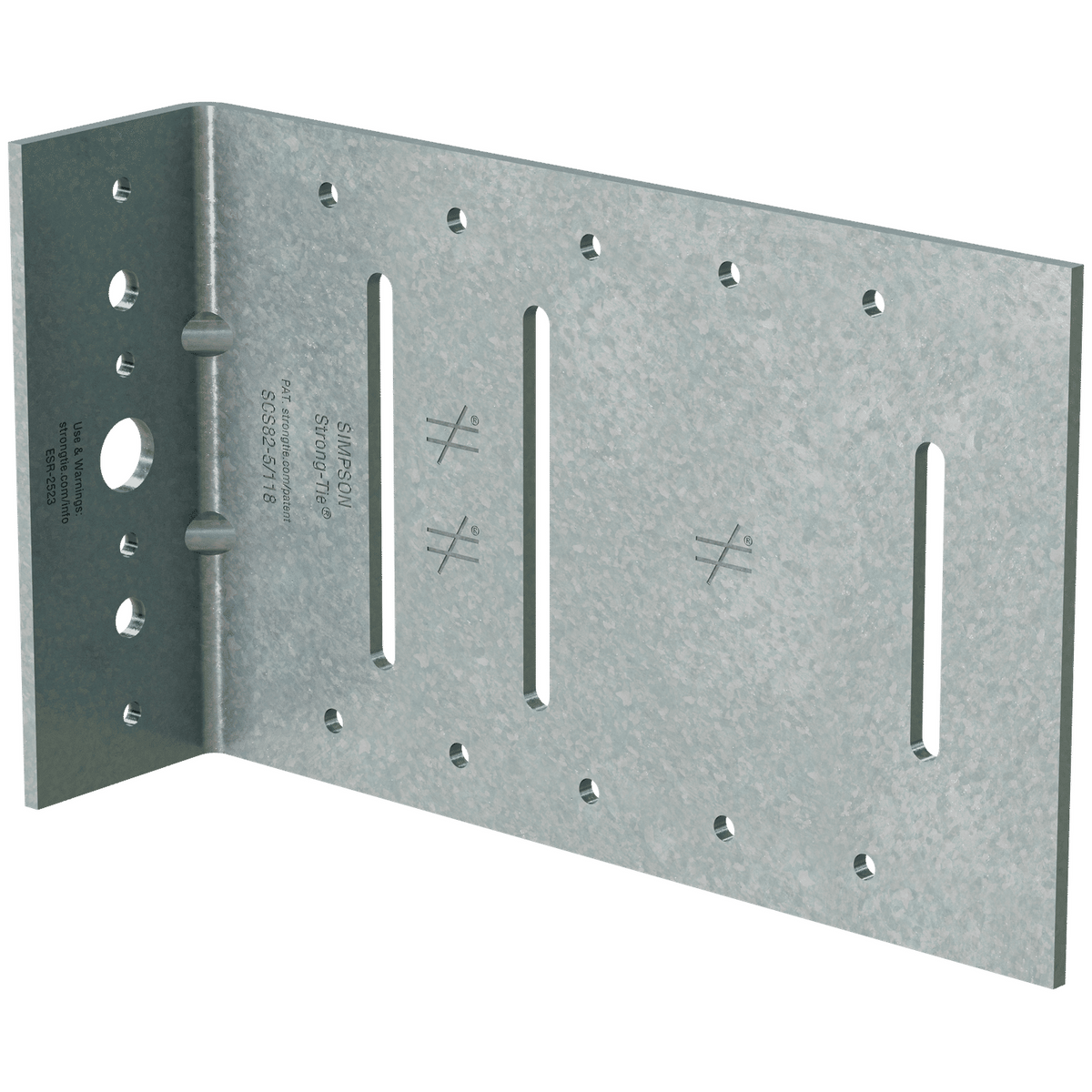

The Simpson SCS82-5/118-KT25 Seismic Bypass Framing Slide Clip is a heavy-duty hybrid connector from Simpson engineered specifically for framing connections in high seismic activity zones. Designed to function as either a slide clip or a fixed clip within a single connector, it accommodates the vertical movement demands of seismic deflection while delivering the rigidity required for fixed-clip loads - making it one of the most versatile options available for code-compliant seismic framing. Backed by real-world, full-scale cyclic testing, the SCS seismic clip delivers the highest seismic loads in the industry, and every design element - from its precision-located ribs to its strategically placed fastener slots and holes - has been purpose-built to provide exceptional resistance to in-plane seismic loads.

Key Features

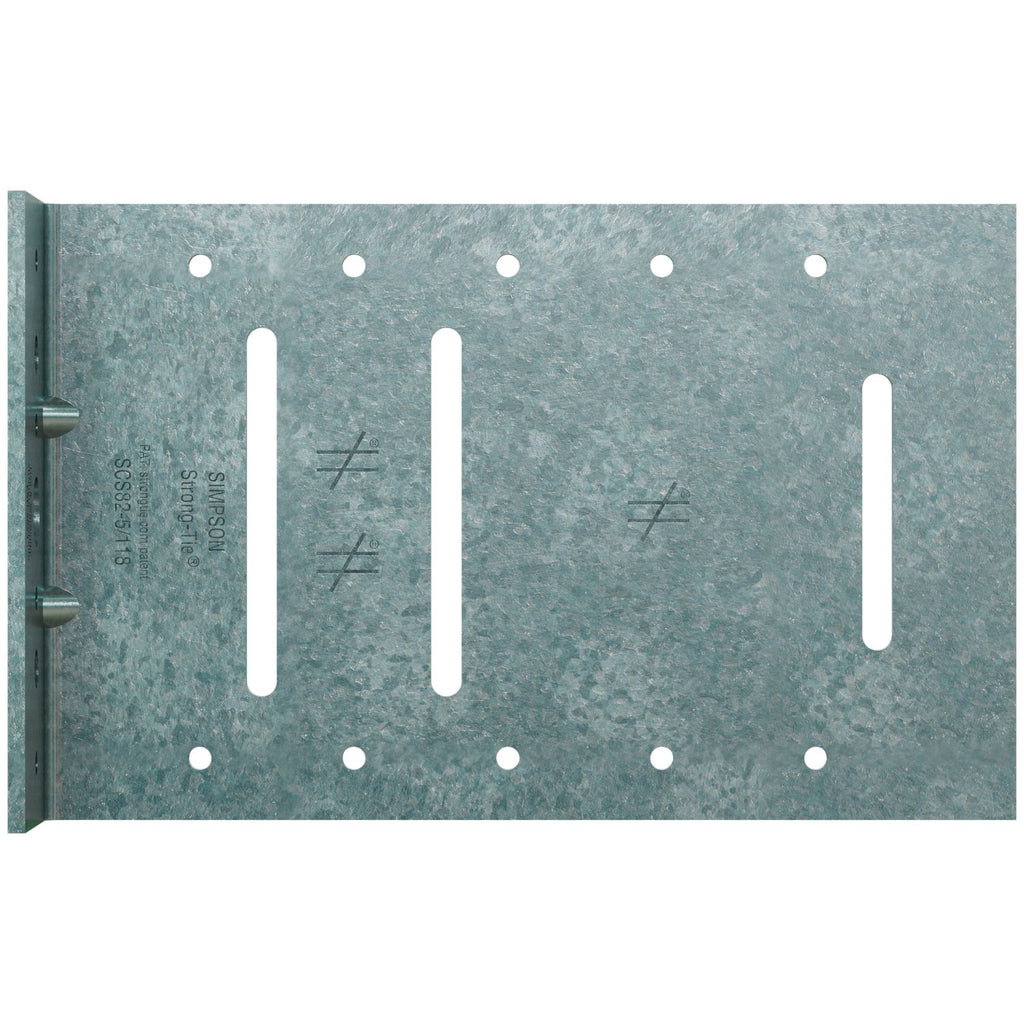

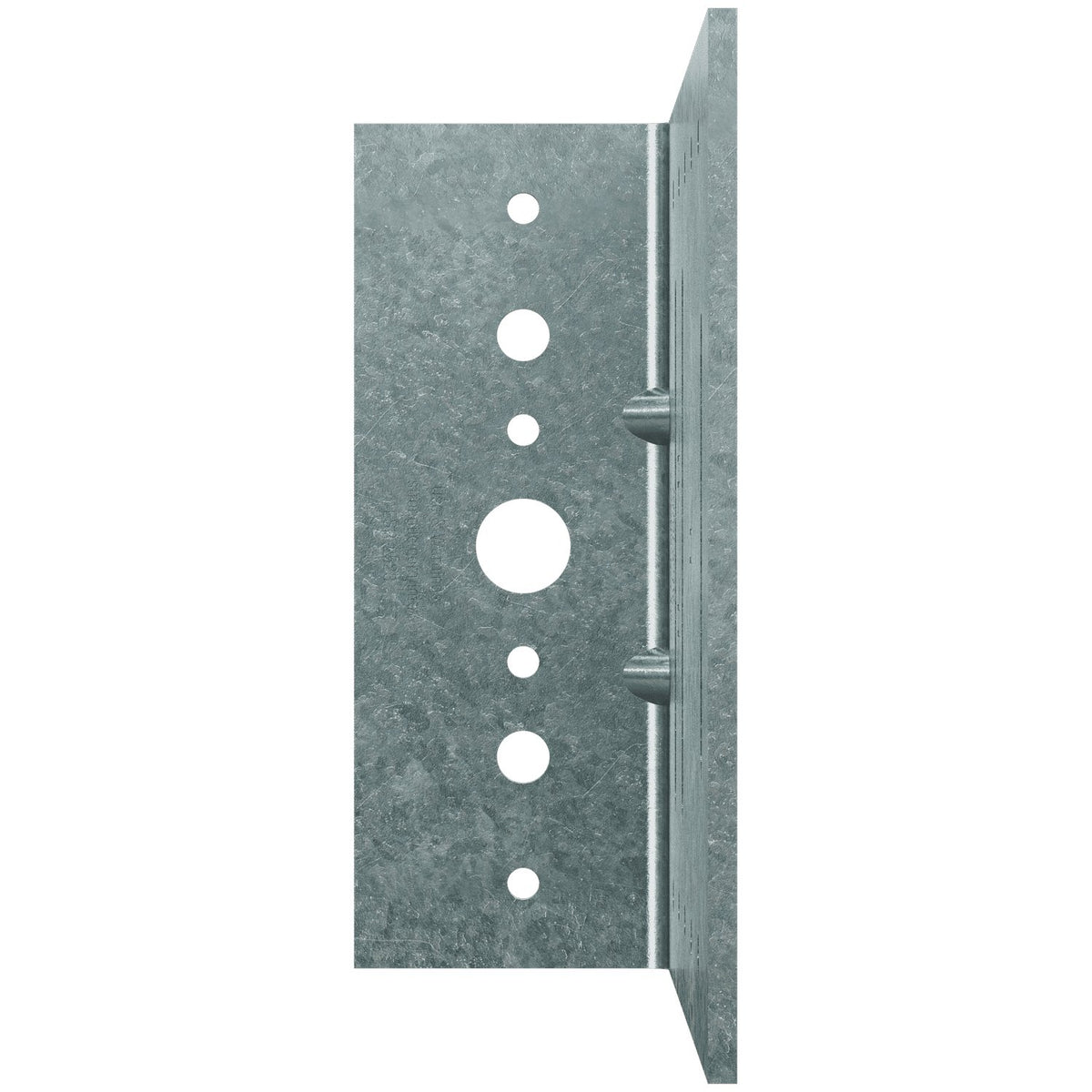

• Dual-function slide-clip and fixed-clip design - three prepunched oblong slots support slide applications while a pattern of small round holes enables fixed-clip configurations, giving installers the flexibility to meet a range of load requirements with a single connector rather than stocking two separate clip types.
• Full 1 in. of vertical deflection capacity (slide-clip application) - slide slots used with the included shouldered washer screws accommodate building movement without transferring damaging lateral loads to the framing, critical for structures in seismic zones.
• Precision-located ribs enhance strength while allowing ductility - strategically positioned darts stiffen the connector where needed while preserving the controlled flexibility that cyclic seismic loading demands, so the clip performs reliably through repeated load cycles.
• Simpson No-Equal stamps alongside slide slots - embossed indicators show installers exactly where to drive screws at the first slot, the most critical attachment point for in-plane capacity, reducing installation error on the job site.
• Made from 10-gauge (118 mil) steel with G90 zinc galvanized coating - heavy-gauge construction supports demanding structural loads, while the G90 galvanized finish provides corrosion resistance for long-term performance in exposed or treated-lumber environments.

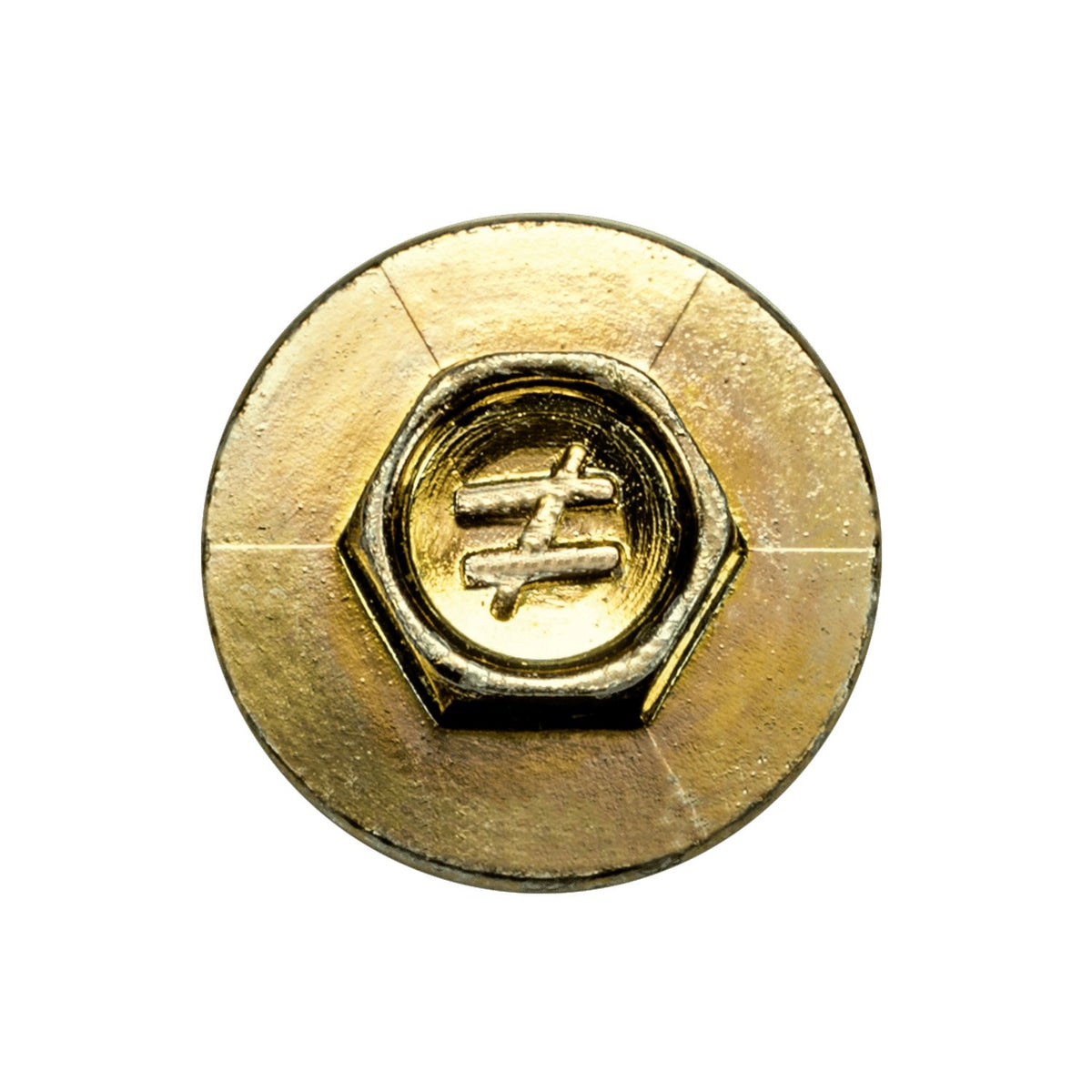

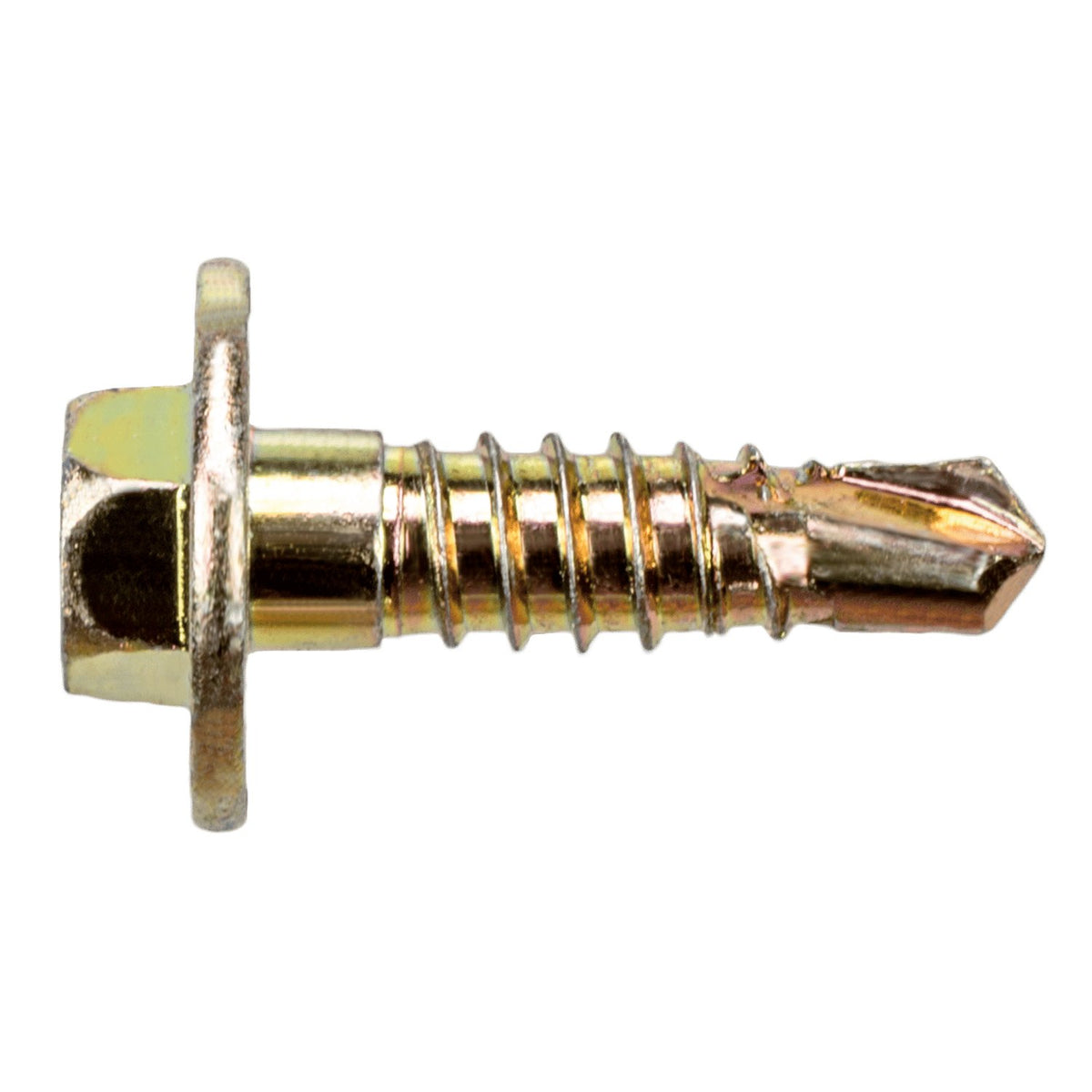

• Includes shouldered washer screws sized and matched to the clip - the kit ships with XLSH78B1414 #14 shouldered screws engineered to work with the slide slots, so installers have everything required for a code-consistent installation without sourcing additional fasteners.
• Made in the United States - domestic manufacturing supports consistent quality control and reliable production standards. (See Specifications for full country-of-origin detail.)

Why This Product

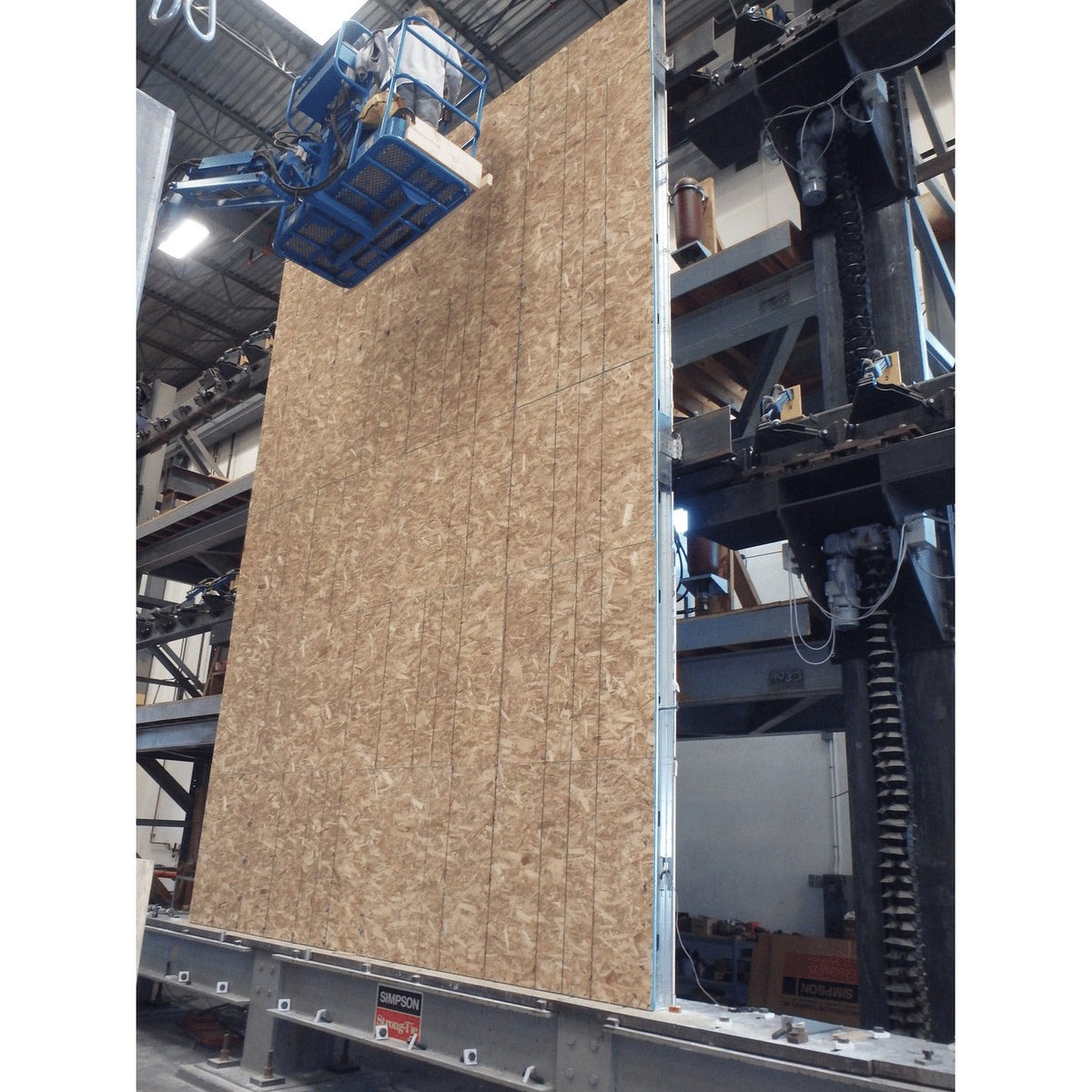

• Purpose-built for high seismic activity zones - unlike general-purpose framing clips, the SCS connector was designed from the ground up to resist in-plane seismic loads, validated by real-world, full-scale cyclic testing that confirms performance under the conditions it will actually face in the field.
• One clip, two applications - the hybrid construction eliminates the need to order separate slide-clip and fixed-clip connectors, simplifying procurement and reducing the chance of grabbing the wrong connector during installation.
• Critical screw placement is built into the clip itself - because attachment at the first slot is most critical to in-plane capacity, the Simpson No-Equal stamps make correct installation straightforward for any crew, reducing costly rework and inspection failures.
• Complete kit with matched fasteners included - connectors and the correct shouldered washer screws ship together, so there are no missing components when the job starts and no compatibility guesswork when ordering replacement hardware later.

Specifications

• Manufacturer Part Number (MPN): SCS82-5/118-KT25
• Brand: Simpson Strong-Tie
• Series: SCS

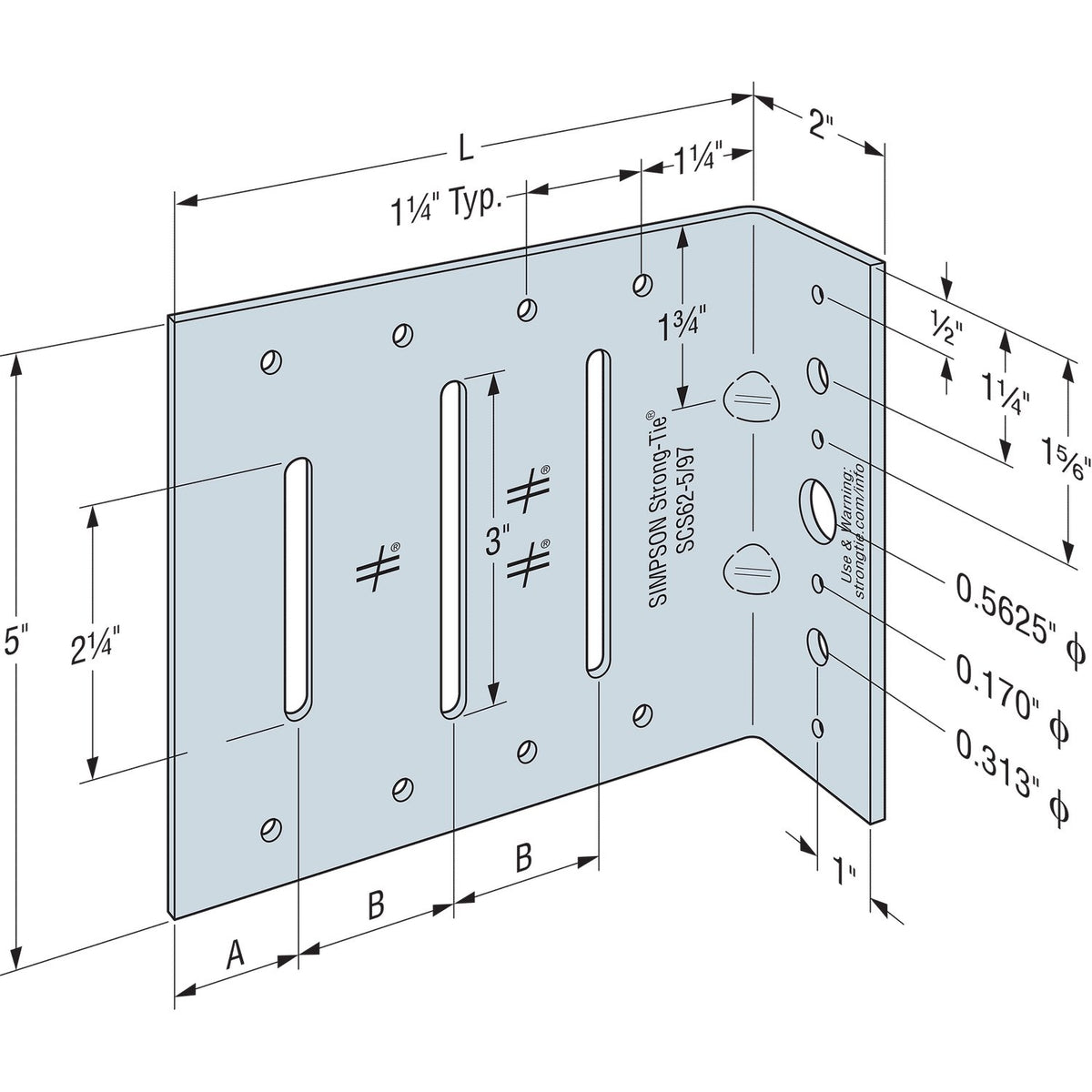

• Dimensions: 2 in. x 8 in. x 5 in.
• Width: 8 in.
• Gauge: 10
• Thickness: 118 mil
• Material: Steel
• Coating / Finish: Zinc Galvanized, G90
• Vertical Deflection Capacity: 1 in. (slide-clip application)
• Package Quantity: 25 connectors
• Installation Fasteners: XLSH78B1414 #14 shouldered screws (included)
• Country of Origin: United States

Approved Applications

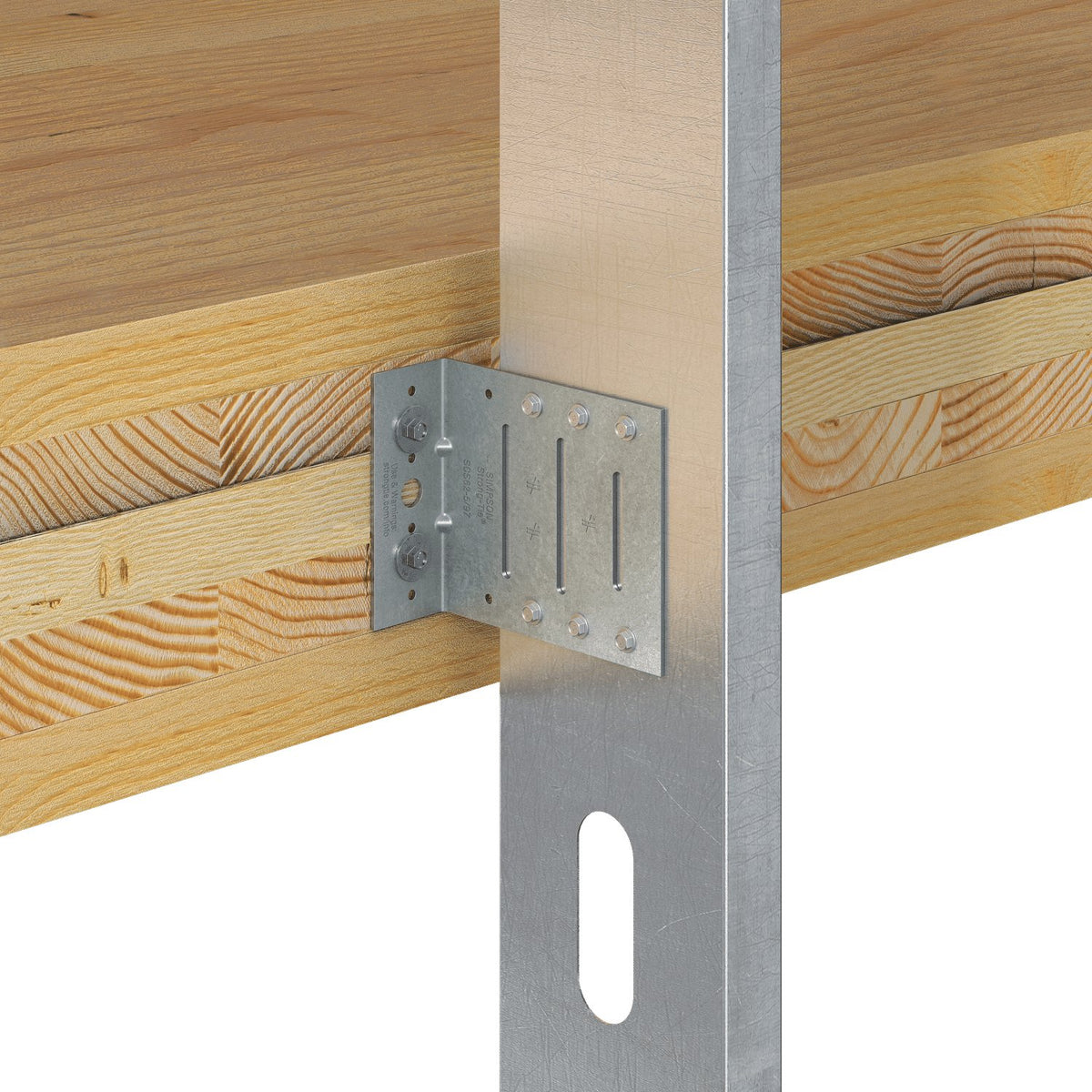

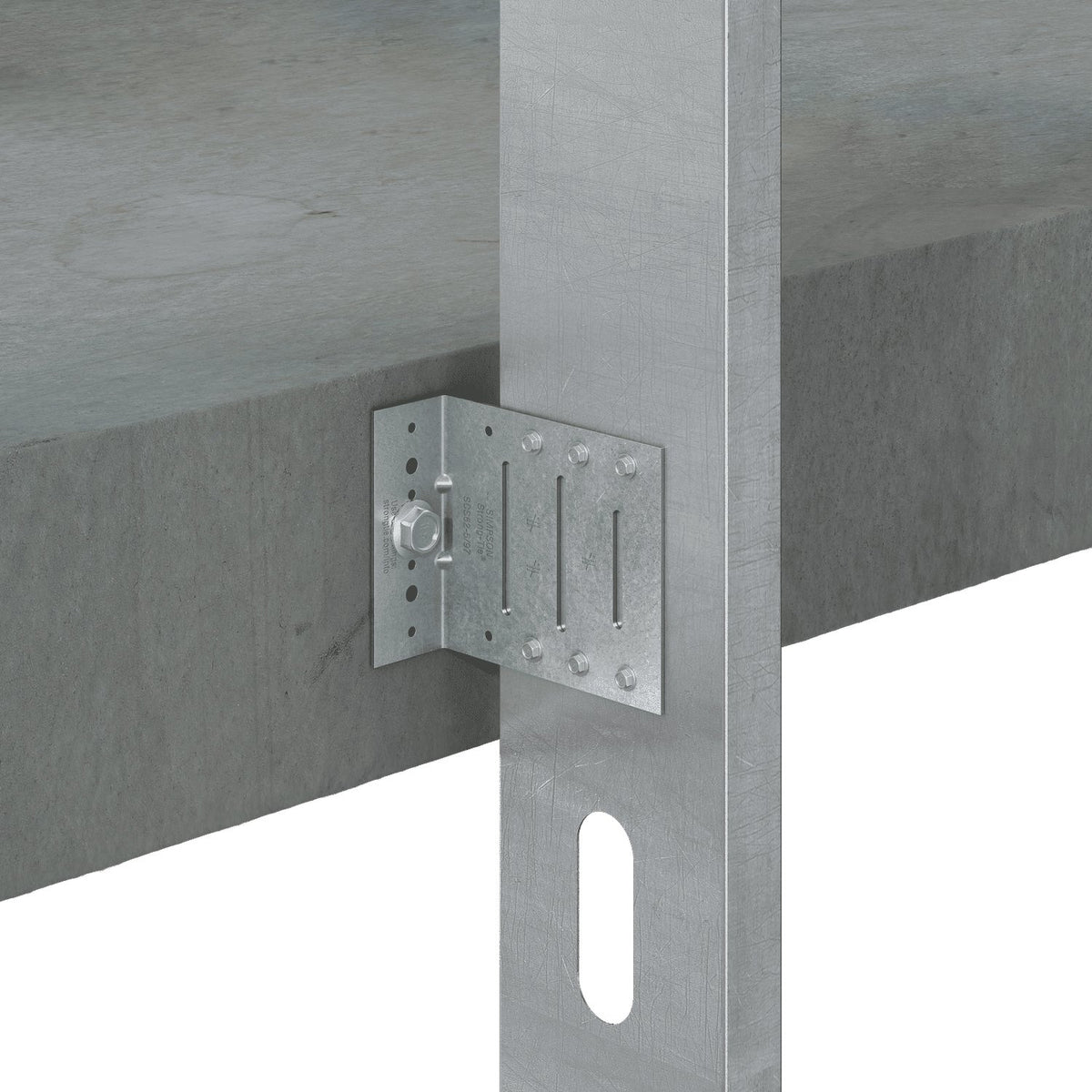

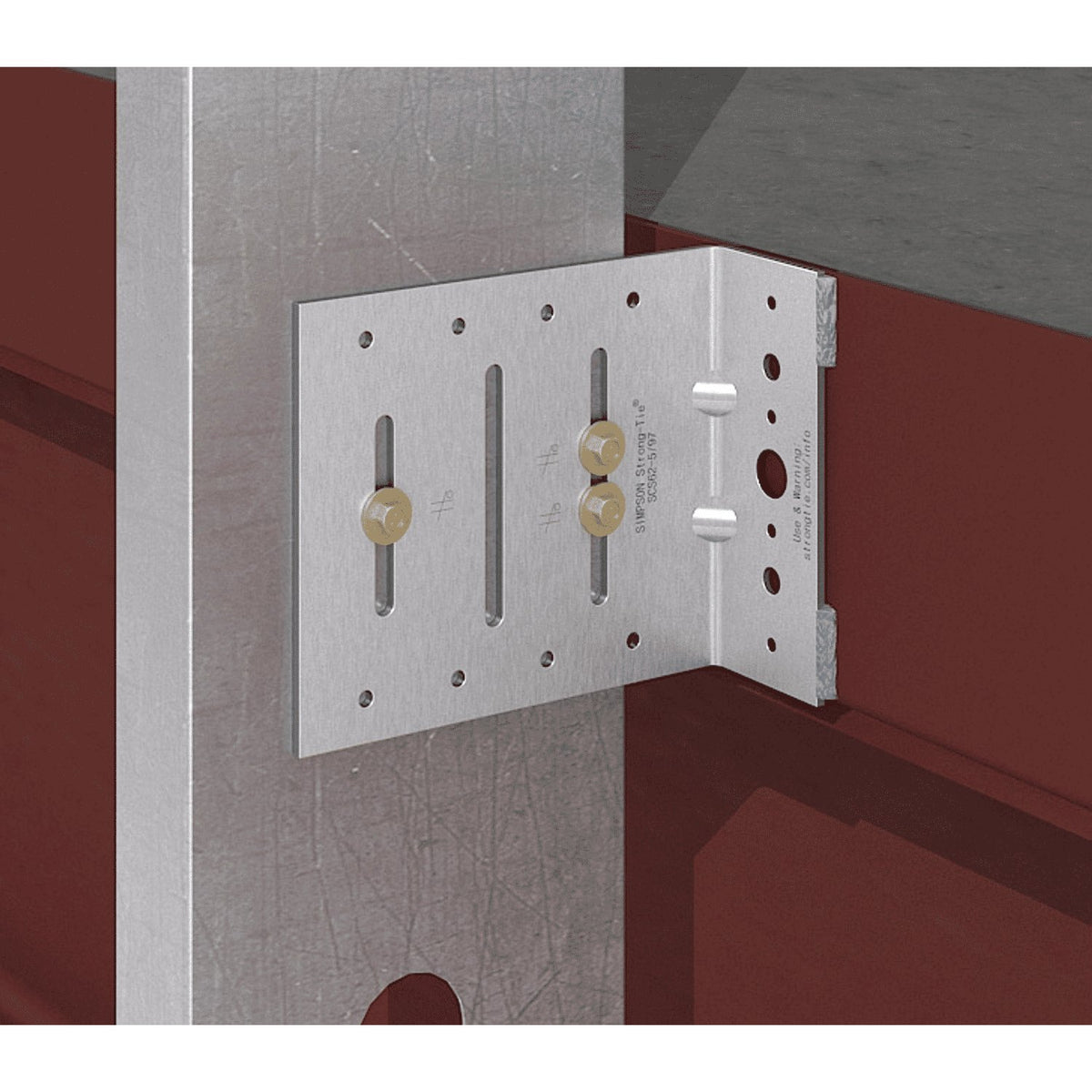

• Slide-Clip Applications: Ideal for framing connections requiring vertical deflection allowance of up to 1 in. in high seismic activity zones, using the three prepunched oblong slots and included shouldered washer screws.
• Fixed-
