Product Description

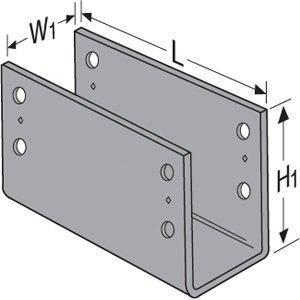

The Simpson Strong-Tie CCO6 CCO Column Cap (No Legs) for 6x Beam is engineered to deliver strong, reliable column-beam connections on top of steel columns and posts. Designed without legs, this column cap enables field-welded attachment directly to steel columns, offering installation flexibility for structural applications. The seat of the cap extends beyond each side of the column to provide additional bearing surface area, effectively distributing beam loads and reinforcing the connection for long-term structural integrity.
Key Features
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
- For nominal 6x, 5-1/4 in. or 5-1/2 in. beam width
- Cap height of 6-1/2 in.
- Made from 7-gauge uncoated steel
Specifications
- MPN: CCO6
- Brand: Simpson Strong-Tie
- Member Size: 6x, 5-1/4 in., 5-1/2 in.
- Cap Height: 6-1/2 in.
- Gauge: 7
- Finish: Uncoated Steel
- Coating: None
- Install With: (4) 5/8 in. diameter machine bolts
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- For special, custom or rough-cut lumber sizes, provide dimensions.
- CCO may be ordered for field welding to pipe or other columns. Weld by designer.

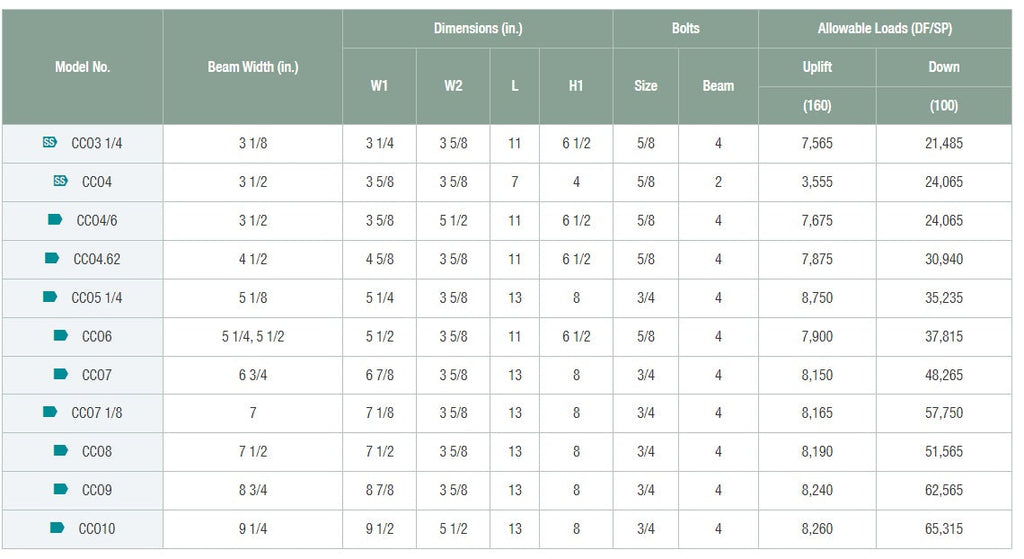

- See CCO Column Cap Load Table. See Table
- See CCO Column Product Guide.
Installation
- Use all specified fasteners; see General Notes
- Weld by designer
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2018 NDS, section 12.1.3.2); bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
- Contact engineered wood manufacturers for connections that are not through the wide face
Downloads and Resources
Frequently Asked Questions
- What beam sizes is the CCO6 compatible with?
- The CCO6 is designed for use with nominal 6x beams, specifically accommodating beam widths of 5-1/4 in. and 5-1/2 in.
- How is the CCO6 attached to a steel column or post?
- The CCO6 features a no-legs design that allows for field-welded attachment directly to steel columns and posts. It may also be ordered for field welding to pipe or other columns, with welding performed by the designer.
- What fasteners are required to install the CCO6?
- Installation of the CCO6 requires four (4) 5/8 in. diameter machine bolts. All specified fasteners should be used per the General Notes guidelines.
- Is the CCO6 suitable for high-wind or seismic applications?
- Yes. The CCO6 is engineered with increased uplift load capacity to meet the demands of earthquake and wind loading conditions, making it appropriate for use in seismic and high-wind environments.
Note: Product dimensions and/or screw or bolt holes may differ from picture.
