Product Description

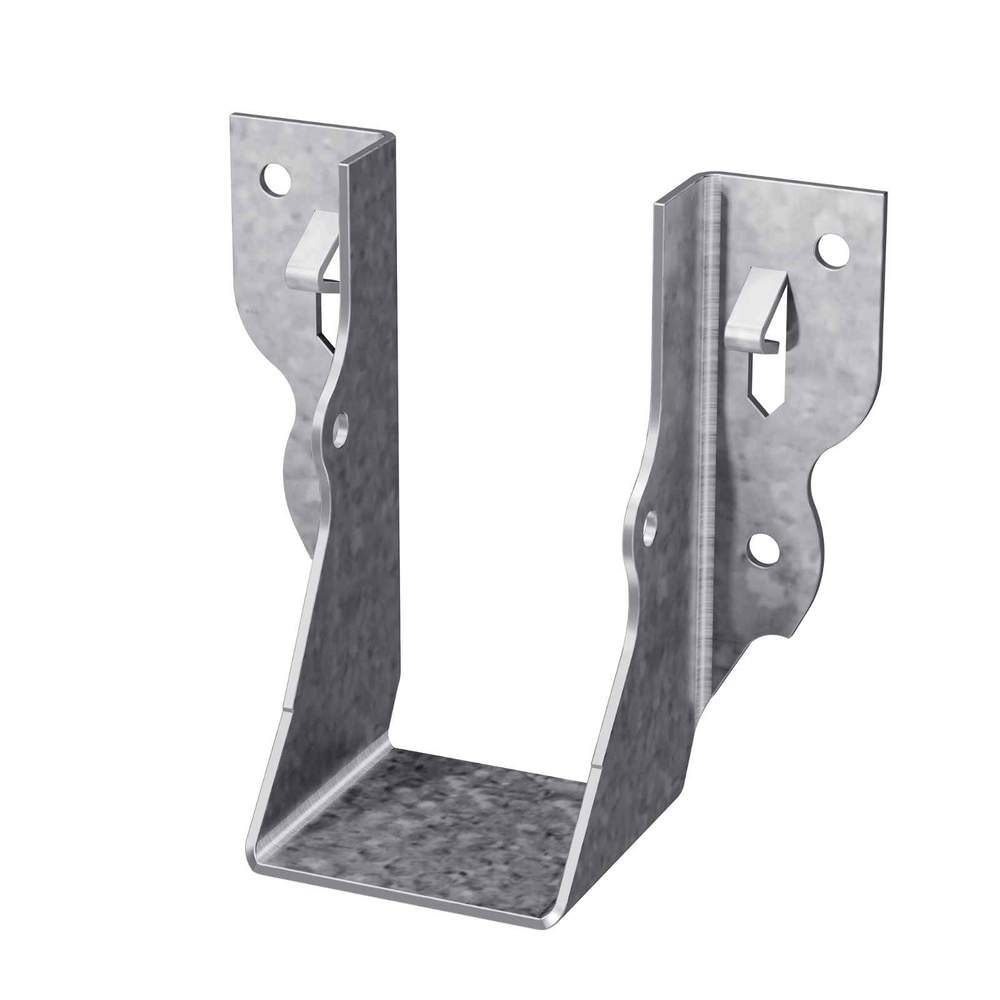

The Simpson U24 Face-Mount Joist Hanger is a 16-gauge galvanized steel connector engineered for reliable, flexible joist-to-header connections in wood-framed construction. Built by Simpson Strong-Tie to rigorous quality standards, this face-mount hanger is the trusted choice of engineers and contractors on residential and light commercial framing projects where a secure, code-compliant 2x4 joist connection is required.
Key Features
- Speed prongs locate the hanger on the header - self-positioning during installation so you can work faster and hold the hanger in place hands-free while nailing
- Flexible face-mounted joist-to-header installation - accommodates a range of field conditions, giving framers more versatility when positioning the joist relative to the header
- Sized for nominal 2x4 joist members - purpose-built fit eliminates guesswork and ensures a snug, structurally sound connection for standard 2x4 framing
- Formed from 16-gauge steel - provides the strength and rigidity needed to carry joist loads without deflection or deformation at the connection point
- G90 zinc galvanized coating - delivers extra corrosion resistance, making this hanger suitable for applications where moisture exposure is a concern
Why This Product
- Engineered and tested for structural performance - Simpson Strong-Tie connectors are designed, tested, and manufactured to the highest quality standards, giving you confidence that each hanger will perform as expected in the field
- Speed prongs reduce installation time - the built-in locating prongs grip the header and hold the hanger in position while you fasten it, cutting setup time on repetitive joist installations
- G90 galvanized finish adds long-term durability - the corrosion-resistant coating goes beyond basic protection, helping the hanger hold up in framing environments where moisture, humidity, or treated lumber contact is possible
- The go-to choice for 2x4 face-mount applications - whether you are framing a deck, floor system, or interior structure, the U24 delivers the installation flexibility and proven reliability that professional framers and contractors rely on
Specifications
- Model Number: U24
- Member Size: 2x4
- Height (H): 3-1/8 in.
- Width (W): 1-9/16 in.
- Seat Depth: 1-1/2 in.
- Gauge: 16
- Coating / Finish: Zinc Galvanized, G90
- Install With: 10d or 16d common nails in the header and 10d x 1-1/2 in. nails in the joist
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
- Refer to technical bulletin for ease of ordering a Custom U hanger
Load Tables / Values / Installation
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
- Face-Mount Hangers - Rough Lumber (DF / SP / SPF / HF) Tables
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - I-Joists, Glulam and SCL Tables
Frequently Asked Questions
- What lumber size is the Simpson U24 joist hanger designed for?
- The U24 is designed for a nominal 2x4 joist member, making it the correct choice for standard 2x4 wood-framed construction applications.
- What nails should be used to install the U24 joist hanger?
- Install the U24 using 10d or 16d common nails in the header and 10d x 1-1/2 in. nails in the joist for a properly fastened connection.
- What is the gauge and coating of the Simpson U24?
- The U24 is formed from 16-gauge steel and features a G90 zinc galvanized coating, which provides enhanced corrosion resistance for long-term durability.
- How do the speed prongs on the U24 help during installation?
- The speed prongs are designed to locate and hold the hanger in position on the header before nailing, making installation faster and more accurate for both professional contractors and DIYers.
Note: Product dimensions and/or Nail or Screw holes may differ from picture.
