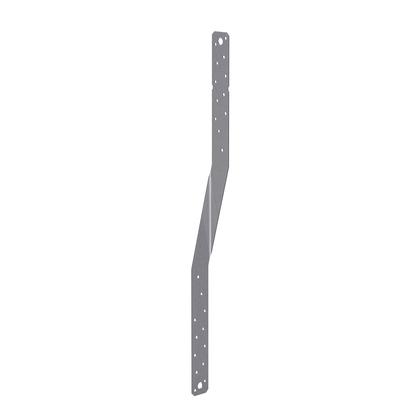

The Simpson LTS18SS LTS 18 in. 18-Gauge Stainless-Steel Twist Strap by Simpson Strong-Tie provides a reliable tension connection between two wood members, resisting light to medium uplift loads at the rafter or heel of a truss. Built from 18-gauge stainless steel, this economical twist strap delivers high corrosion resistance, making it well suited for demanding environments where standard steel would deteriorate over time.

Key Features

• The 2-in. bend section eliminates interference at the transition points between wood members
• Length: 18 in.
• Made from 18-gauge steel
• Stainless steel for high/severe corrosion resistance
• Versatile design works on the wide or narrow face of lumber for light repairs or heavy-duty projects
• Straps do not need to be wrapped over the truss to achieve the allowable load
• Available with the bend reversed - specify "-REV" after the model number (e.g., LTSXX-REV)
• Made in the United States

Specifications

• Model Number: LTS18SS
• Gauge: 18
• Thickness: 43 mil
• Length: 18 in.
• Material: Stainless Steel
• Finish: Stainless Steel
• Country of Origin: United States
• Install With: Install with stainless-steel 10d common nails or stainless-steel 10d x 1-1/2 in. nails

Approved Applications

• Tension connection between two wood members
• Resisting uplift at the heel of a truss
• Light to medium uplift load resistance at the rafter
• Light repairs and heavy-duty framing projects
• Connections on the wide or narrow face of lumber
• High and severe corrosion exposure environments

Frequently Asked Questions

What is the purpose of the 2-in. bend section on the LTS18SS?

The 2-in. bend section eliminates interference at the transition points between wood members, allowing the strap to seat cleanly across the joint without causing gaps or stress concentrations in the connection.

Why should stainless-steel fasteners be used with the LTS18SS?

Because the LTS18SS is made from stainless steel for high/severe corrosion resistance, pairing it with stainless-steel 10d common nails or stainless-steel 10d x 1-1/2 in. nails ensures the entire connection maintains consistent corrosion resistance and avoids galvanic incompatibility between dissimilar metals.

Does the LTS18SS need to be wrapped over the truss to achieve its allowable load?

No. The LTS18SS does not need to be wrapped over the truss to achieve the allowable load. Use all specified fasteners with half into each member being connected to achieve the listed loads.

Is a reversed-bend version of the LTS18SS available?

Yes. The LTS twist strap is available with the bend reversed. To order the reversed version, specify "-REV" after the model number, such as LTSXX-REV, to suit applications where the standard bend orientation would cause interference.

Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
