Product Description

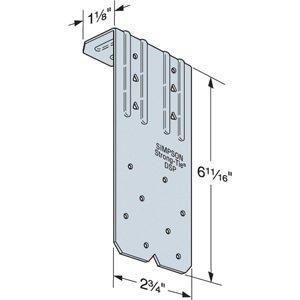

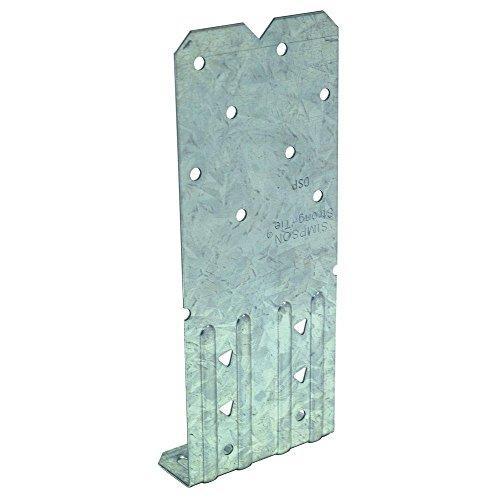

The Simpson Strong-Tie DSPZ Double-Stud Plate Tie is an 18-gauge ZMAX galvanized steel connector engineered to join double studs to top and bottom plates in light-frame construction. Measuring 2-3/4 in. wide by 6-11/16 in. long, this prebent strap delivers versatile, reliable connections for both sill plate and top plate applications, with ZMAX galvanization providing enhanced corrosion resistance ideal for exterior and treated-wood environments.
Key Features
- For sill plate installation, fill all round holes
- For top plate installation, fill all round holes and triangle holes
- Width: 2-3/4 in.
- Length: 6-11/16 in.
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- DSP double-stud plate ties connect double studs to top and bottom track and can be used for either top- or bottom-track applications
- Simple, versatile solution for a wide range of stud-to-plate connections
Specifications
- MPN: DSPZ
- Width: 2-3/4 in.
- Length: 6-11/16 in.
- Gauge: 18
- Coating: ZMAX
- Finish: ZMAX
- Install With: 10d common nails or 10d x 1-1/2 in. nails
- Country of Origin: United States
Approved Applications
- Connecting double studs to top plates in light-frame wall construction
- Connecting double studs to bottom sill plates in light-frame wall construction
- Top-track applications requiring a secure stud-to-plate tie
- Bottom-track applications requiring a secure stud-to-plate tie
- Exterior and treated-wood applications where enhanced corrosion resistance is required
Downloads and Resources
Frequently Asked Questions
- What is the difference in fastener hole usage between sill plate and top plate installation?
- For sill plate installation, fill all round holes with fasteners. For top plate installation, fill all round holes and triangle holes to ensure a fully secured connection.
- What type of fasteners should be used to install the DSPZ?
- The DSPZ should be installed with 10d common nails or 10d x 1-1/2 in. nails.
- Why is the ZMAX coating important for this connector?
- ZMAX galvanization provides extra corrosion resistance compared to standard galvanized finishes, making the DSPZ suitable for exterior applications and installations involving treated wood where moisture and chemical exposure can accelerate corrosion.
- Can the DSPZ be used for both top-track and bottom-track applications?
- Yes. The DSP double-stud plate tie is designed to connect double studs to top and bottom track and can be used for either top- or bottom-track applications, offering flexibility across different framing situations.
