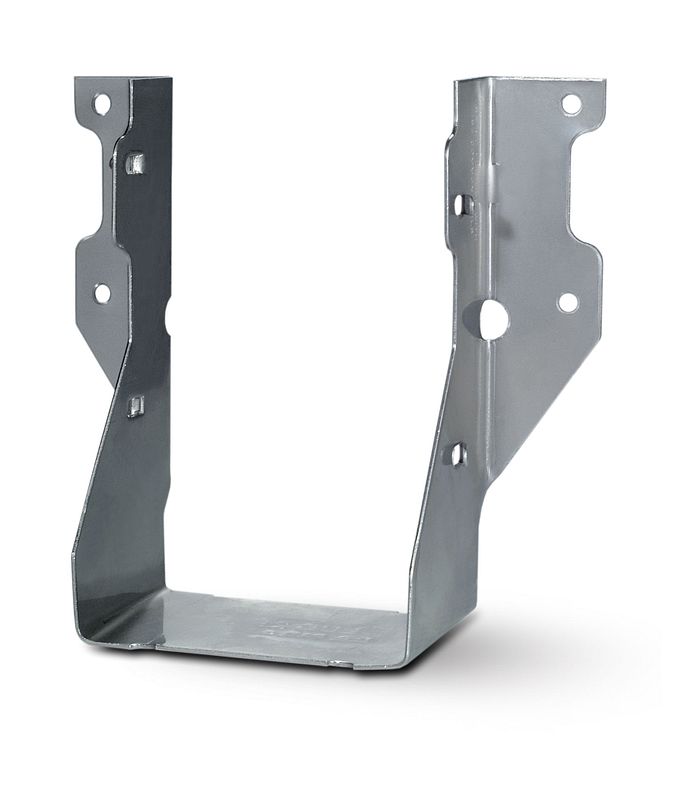

The Simpson LUS26-2SS LUS Stainless-Steel Face-Mount Joist Hanger from Simpson is an economical, easy-to-install connector engineered to support double 2x6 and double 2x8 lumber in a wide range of framing applications. Built from 18-gauge stainless steel, this face-mount hanger delivers the elevated corrosion resistance required for exterior builds and pressure-treated wood construction, while its double-shear nailing design channels load through two points on each joist nail - providing a stronger connection with fewer nails and faster overall installation.

Key Features

• Double-shear nailing design - distributes load through two points on each joist nail, delivering greater strength while reducing the total number of nails needed and speeding up installation
• Speed prongs - temporarily position and secure the connector before nailing, freeing both hands and reducing fumbling during placement
• Angled joist nailing - makes driving nails or screws far more manageable in tight or confined framing spaces where a straight approach is difficult
• 18-gauge stainless steel construction - provides the extra corrosion resistance demanded by exterior environments and applications involving treated lumber
• Compatible with double 2x6 and double 2x8 nominal lumber sizes - gives contractors and builders flexibility across multiple common framing scenarios without needing a different hanger model
• Tested, load rated, and code compliant - allows the LUS series to be specified with confidence on permitted projects where documentation and performance standards are required
• Works for a wide range of applications - reduces the number of different hanger models needed on a job site, simplifying procurement and inventory

Why This Product

• Stronger connections with less hardware - the double-shear nailing design provides greater load transfer at each nail point, meaning fewer fasteners are required to achieve a high-performance joist connection, saving both material cost and installation time
• Built for corrosive environments - stainless steel construction makes this hanger a reliable choice wherever standard galvanized hardware would be compromised, including coastal builds, exterior decks, and framing with pressure-treated lumber
• Faster, easier installation on site - speed prongs hold the hanger in position hands-free during initial placement, and the angled joist nailing geometry reduces awkward maneuvering in tight bays, helping crews work more efficiently
• Confidence-backed performance - the LUS series is tested, load rated, and code compliant, so this stainless steel joist hanger can be used on inspected and permitted work without question

Specifications

• MPN: LUS26-2SS
• Brand: Simpson Strong-Tie
• Series: LUS
• Hanger Type: Face-Mount Joist Hanger
• Member Size: Double 2x6 and 2x8
• Width: 3-1/8 in.
• Height: 4-7/8 in.
• Seat Depth: 2 in.
• Gauge: 18
• Material: Stainless Steel
• Finish: Stainless Steel
• Country of Origin: United States
• Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D) (sold separately)

Frequently Asked Questions

Why does this hanger require stainless-steel fasteners?

Because the LUS26-2SS is made from stainless steel, stainless-steel fasteners must be used to maintain corrosion resistance and structural integrity - particularly in exterior environments or where treated lumber is present. Using dissimilar metals can cause accelerated corrosion and compromise the connection.

What is double-shear nailing and why does it matter?

Double-shear nailing distributes the load through two points on each joist nail rather than one. This design provides greater strength while allowing for fewer nails and faster installation, without sacrificing connection performance.

What lumber sizes is the LUS26-2SS compatible with?

The LUS26-2SS is designed for a nominal joist size of double 2x6 and double 2x8 lumber, with a seat width of 3-1/8 in.

Are the LUS26-2SS hangers code compliant?

Yes. LUS-series hangers are tested, load rated and code compliant, making them suitable for a wide range of structural applications where building code requirements must be met.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
