Product Features
Product Description

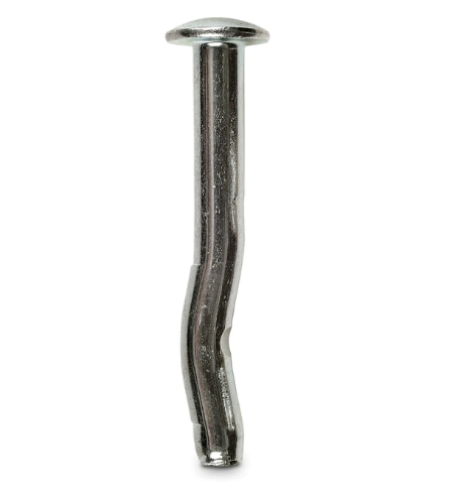

The Simpson Strong-Tie CD25100M Crimp Drive 1/4 in. x 1 in. Zinc-Plated Mushroom Head Anchor is an easy-to-install expansion anchor engineered for use in concrete and grout-filled block. The preformed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure, speeding up installation and reducing overall labor. The low-profile mushroom head delivers a tamper-proof fastening solution ideal for attaching wood or light-gauge steel to concrete and grout-filled block.
Key Features
- Unique curved shaft design that provides secure placement
- Speeds up anchor installation by eliminating need for additional tightening
- Mushroom head provides a tamper-proof solution
- Zinc-plated carbon-steel anchor
- Size: 1/4 in. x 1 in.
Specifications
- Manufacturer Part Number (MPN): CD25100M
- Brand: Simpson Strong-Tie
- Head Type: Mushroom Head
- Size: 1/4 in. x 1 in.
- Material: Carbon Steel
- Coating: Zinc Plated
- Finish: Zinc Plated
- Packaging: Packs of 100 and Cartons of 1600
- Country of Origin: Taiwan
Approved Applications
- Fastening wood or light-gauge steel to concrete and grout-filled block
- Attaching concrete formwork
- Hanging overhead support for sprinkler pipes
- Installing suspended ceiling panels
Frequently Asked Questions
- What base materials are the Simpson Strong-Tie CD25100M Crimp Drive anchors designed for?
- The CD25100M Crimp Drive anchor is designed for use in concrete and grout-filled block, making it suitable for a wide range of structural and construction fastening applications.
- Does the CD25100M require a secondary tightening procedure after installation?
- No. The preformed curvature along the shaft acts as a built-in expansion mechanism that secures the anchor in place upon installation, completely eliminating the need for any secondary tightening procedure.
- Why does the mushroom head style make the CD25100M a tamper-proof solution?
- The mushroom head design does not accommodate standard removal tools, which prevents unauthorized removal and provides a secure, tamper-proof fastening result once the anchor is driven into place.
- What material and finish are used on the CD25100M anchor?
- The CD25100M is manufactured from carbon steel with a zinc-plated finish, which provides a corrosion-resistant coating suitable for typical interior concrete and grout-filled block installations.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
