Product Description

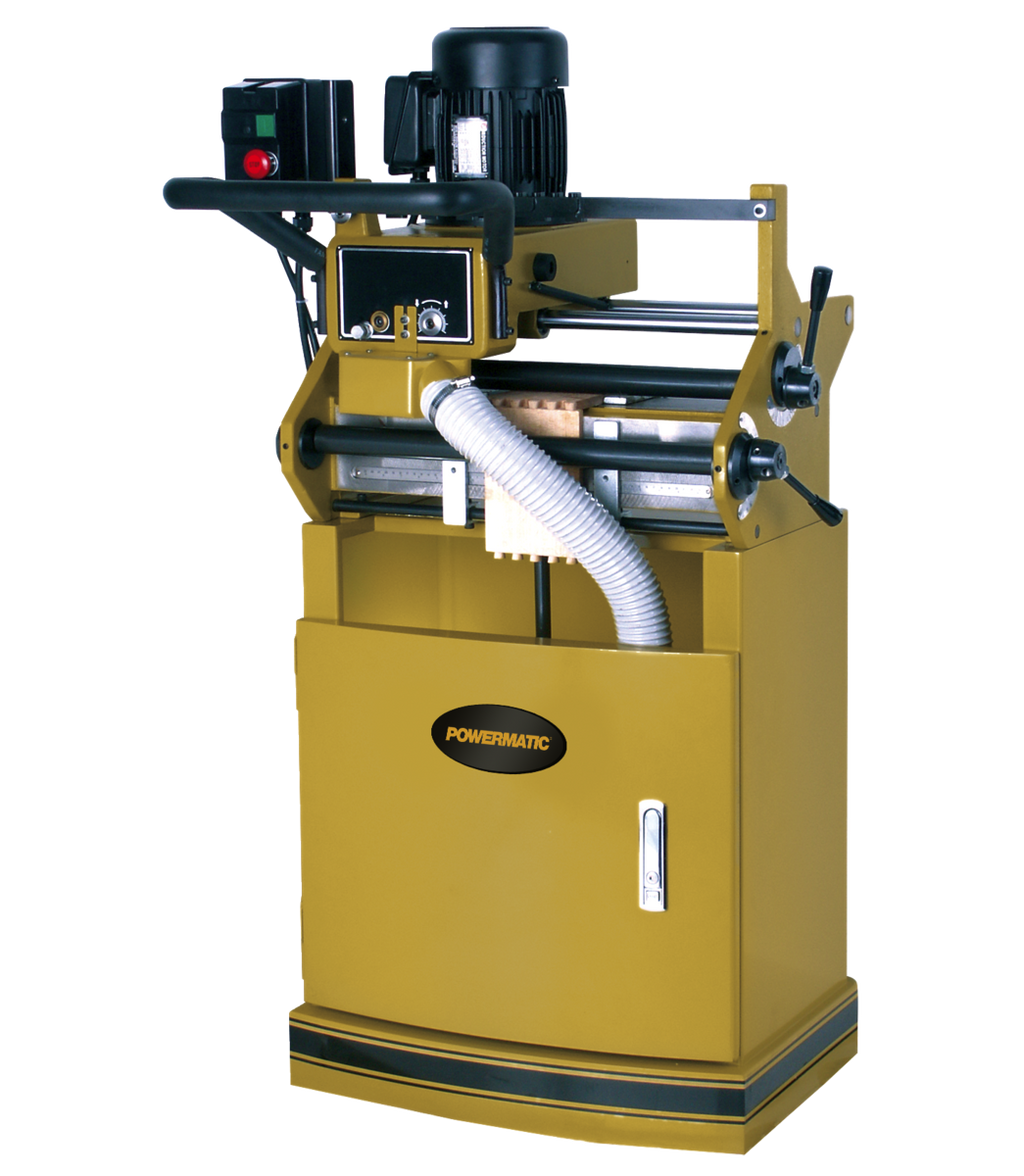

The Powermatic DT45 Dovetailer is a precision manual dovetail machine from Powermatic, engineered for craftsmen who need clean, consistent dovetail joints in drawer construction and fine furniture components. Built with cast iron and steel construction for added stability and durability, the DT45 delivers professional-grade results through a spring-loaded carriage system, adjustable cutter heights, and four selectable dovetail center line spacings - giving woodworkers the control and repeatability needed for custom, high-quality joinery work.
Key Features
- Cast iron and steel construction for added stability and durability
- Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
- Eccentric spindle collet for resharpened cutters
- Extra large soft grip handle provides positive control and comfort
- Four dovetail center lines at 1", 1-1/2", 2", and 2-1/2" create a custom appearance
- Manual clamping will keep boards firm
- Material stops provide convenient positioning of the workpiece
- Spring loaded carriage makes for smooth, effortless dovetail cutting
- The precision linear carriage bearings are sealed on both ends to eliminate dust buildup

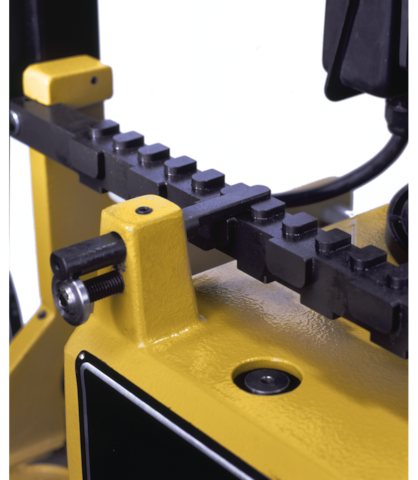

- Visual stylus and template aid in guiding the carriage
Specifications
- MPN: PM9-1791304
- Brand: Powermatic
- Model: DT45
- Power: 1HP, 1-Phase, 115/230V
- Number of Dovetail Center Lines: 4
- Dovetail Center Line Spacings: 1", 1-1/2", 2", 2-1/2"
- Minimum Dovetail Height: 3/16"
- Maximum Dovetail Height: 3/4"
- Minimum Front Thickness: 9/32"
- Country of Origin: Taiwan
Frequently Asked Questions
- What range of cutter heights does the Powermatic DT45 support?
- The DT45 features a cutter height range of 3/16" to 3/4", allowing it to accommodate different cutting depths and board thicknesses to suit a wide variety of woodworking applications.
- How many dovetail center line options are available on the DT45?
- The DT45 offers four dovetail center lines at 1", 1-1/2", 2", and 2-1/2", enabling craftsmen to create a custom appearance and varied joint spacing across different projects.
- How does the DT45 minimize dust buildup in the carriage system?
- The precision linear carriage bearings are sealed on both ends to eliminate dust buildup, helping to maintain smooth, consistent operation and extend the life of the machine.
- Can the DT45 be used with resharpened cutters?
- Yes. The DT45 is equipped with an eccentric spindle collet specifically designed to accommodate resharpened cutters, helping to extend cutter life and reduce long-term tooling costs.
