Product Description

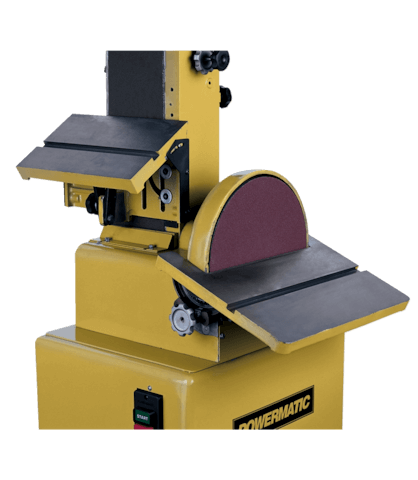

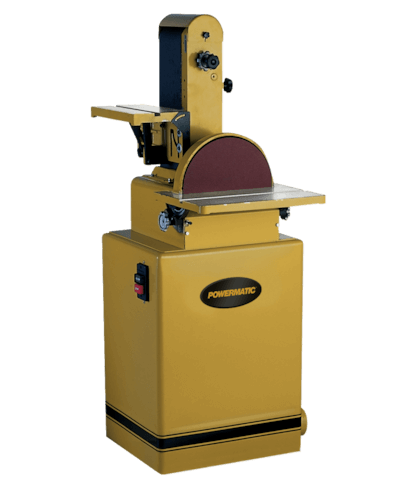

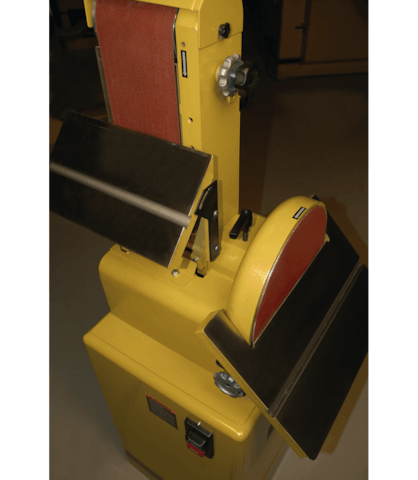

The Powermatic 31A Belt/Disc Sander is a professional-grade 2HP, 3-phase sanding machine engineered for demanding woodworking environments. Designed by Powermatic, this powerful combination sander delivers precision and versatility through a multi-position belt head, a balanced 12" disc, and full cast iron construction - giving craftsmen the rigidity and accuracy needed for the most challenging sanding tasks.
Key Features
- 12" Disc is balanced for flat, even coverage
- 460V operation requires an additional 460V magnetic switch (part 31A-MSA-2)
- 6" x 48" sanding belt can be changed and adjusted quickly and easily
- Belt and disc tables are precision ground cast iron with miter slots for precision and rigidity
- Belt table tilts down to 45 deg., and can be set for beveled and mitered angle sanding

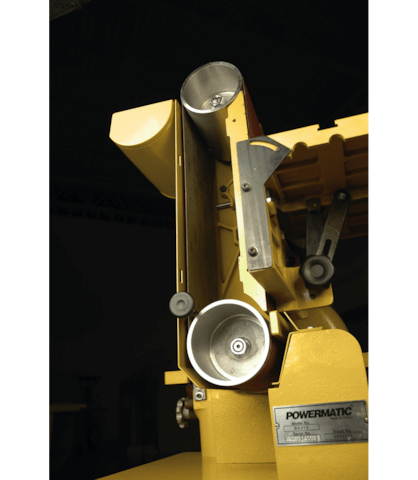

- Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
- Multi-position belt head locks at any angle from 0 deg. to 90 deg.; includes indexing pin for 0, 45 deg., and 90 deg. stops
- Versatile belt and disc sanding allows for multiple sanding angles
Specifications
- MPN: PM9-1791292K
- Brand: Powermatic
- Model: 31A
- Motor: 2HP, 3-Phase
- Voltage: 230/460V
- Switch Type: Manual Switch
- Belt Size: 6" x 48"
- Disc Size: 12"
- Belt Head Range: 0 deg. to 90 deg.
- Belt Table Tilt: Down to 45 deg.
- Country of Origin: Taiwan
Frequently Asked Questions
- Can the belt head be used at angles other than the preset stops?
- Yes. The multi-position belt head locks at any angle from 0 deg. to 90 deg.. While it includes an indexing pin with preset stops at 0 deg., 45 deg., and 90 deg. for quick and repeatable positioning, the head lock allows you to set and secure the belt head at any angle in between those stops.
- What is required to run this sander at 460V?
- 460V operation requires an additional 460V magnetic switch, sold separately as part number 31A-MSA-2. The unit ships as a manual switch configuration, so this accessory is necessary if you intend to operate at 460V.
- What type of tables are included, and do they support miter gauge use?
- Both the belt and disc tables are precision ground cast iron and feature miter slots, providing a rigid, accurate work surface suitable for precise angle sanding. The belt table also tilts down to 45 deg. for beveled and mitered angle sanding applications.
- What ensures smooth belt movement on the 31A?
- The 31A features a full cast iron platen combined with solid crowned aluminum drums, which work together to support the sanding belt and promote smooth, consistent belt movement during operation.
