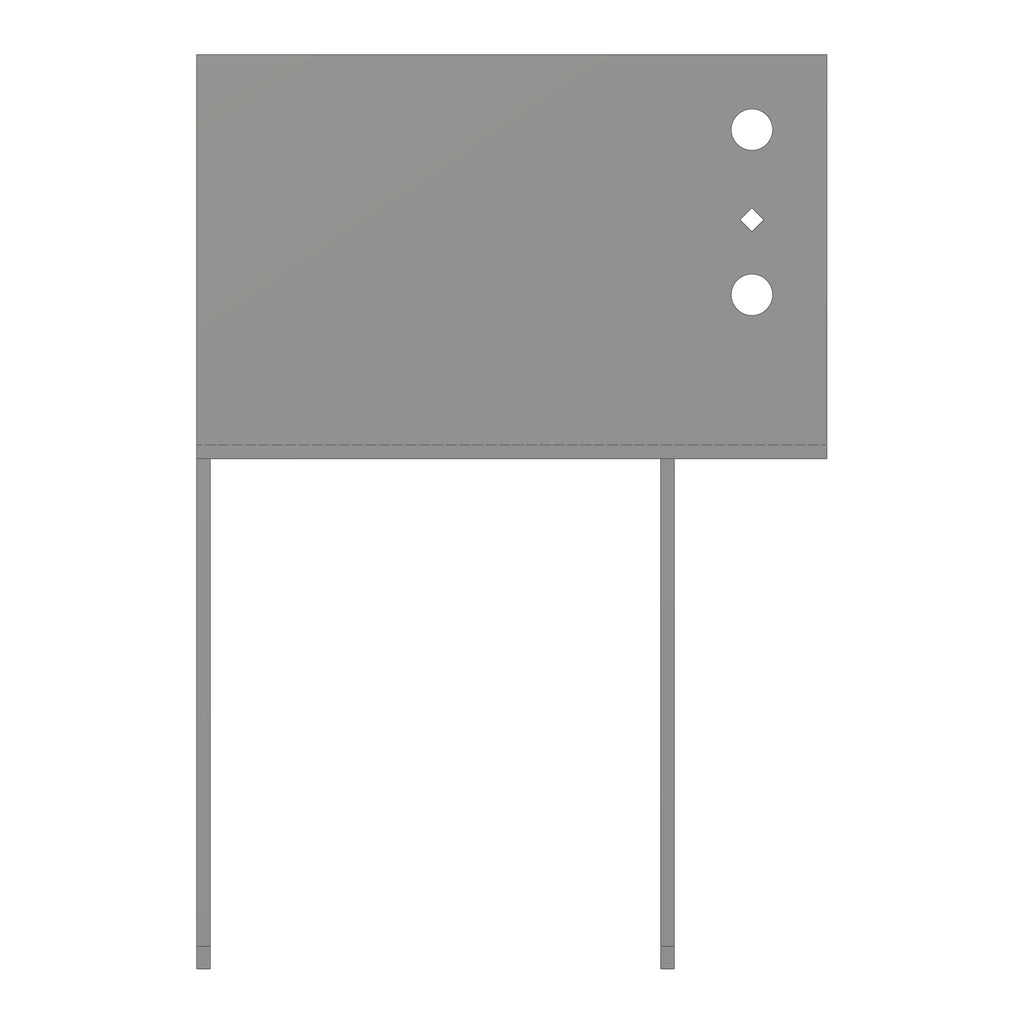

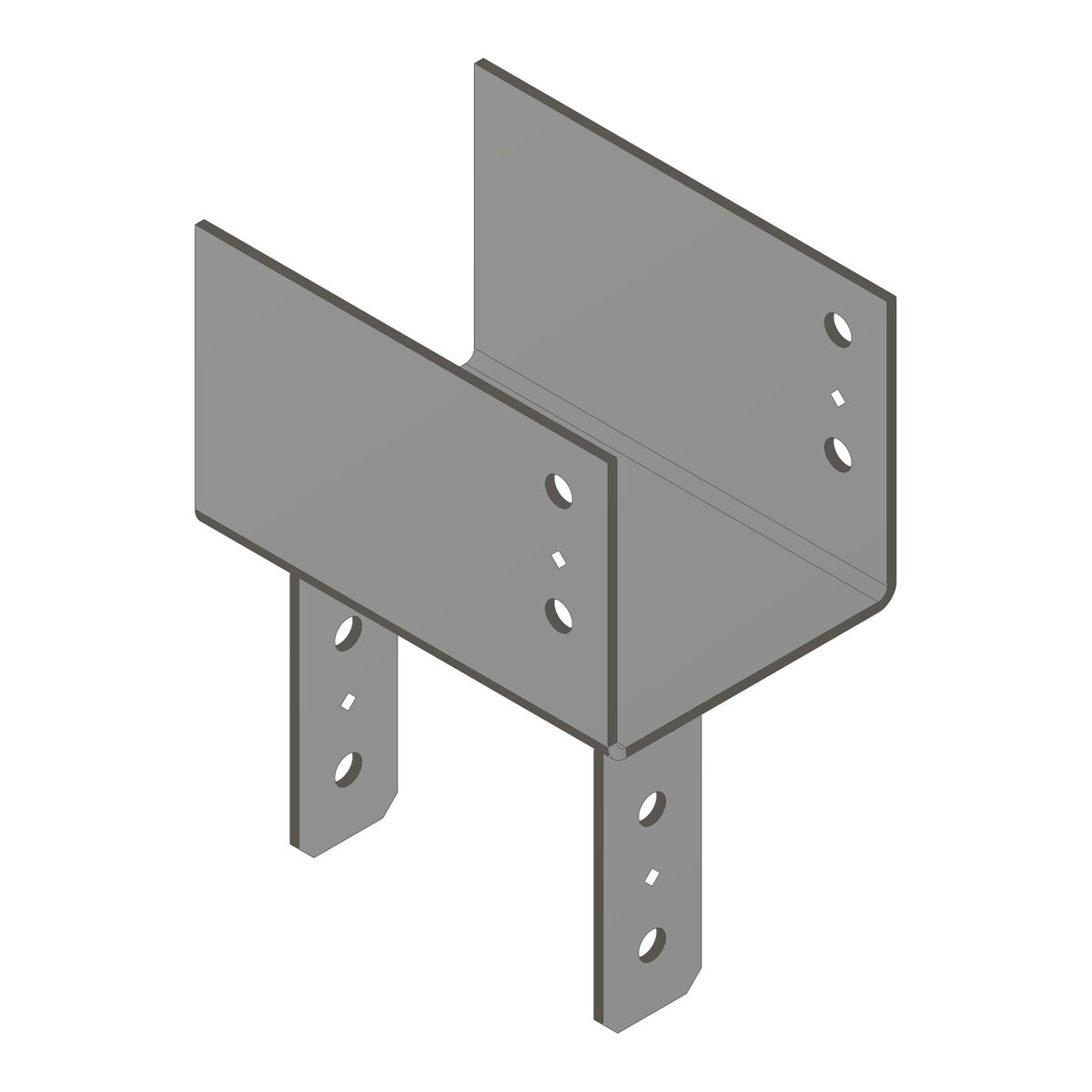

The Simpson Strong-Tie ECC78 End Column Cap is engineered to deliver robust column-to-beam connections in end-of-beam applications throughout wood construction projects. Designed specifically for use with a 6-3/4" beam and an 8X post, this end column cap features a seat that extends beyond one side of the column, providing an expanded bearing surface area that helps distribute load efficiently from the beam while reinforcing the overall connection. Constructed from heavy-duty 3-gauge steel and finished in Simpson Strong-Tie gray paint, the ECC78 is built to perform under demanding structural conditions, including elevated loads associated with seismic and wind events.

Key Features

• Certified Welds: Certified welds provide confidence in strength and loading performance throughout the life of the connection.
• Enhanced Uplift Capacity: Uplift loads are increased to address earthquake or wind loading requirements, making this cap suitable for high-demand structural environments.
• NDS-Compliant Bolt Spacing: Bolt spacing meets NDS code requirements to ensure optimal performance and code-compliant installations.
• Diamond Holes: Diamond holes are incorporated into the design to allow for convenient temporary fastening during installation.
• Extended Bearing Seat: The seat of the column cap provides additional surface area of bearing that extends beyond one side of the column, helping to distribute beam loads effectively.
• Heavy-Gauge Construction: Fabricated from 3-gauge steel for exceptional durability and structural integrity.
• Domestic Manufacturing: Made in the United States.

Specifications

• Model Number: ECC78
• Description: 6-3/4" Beam, 8X Post End Column Cap
• Material: 3 gauge steel
• Finish: Simpson Strong-Tie gray paint
• Fasteners Required: 3/4" Machine Bolts - Beam (2), Post (2)
• Country of Origin: United States

Approved Applications

• End-of-beam column-to-beam connections in wood construction
• Structural connections requiring load distribution from beam to post
• Applications subject to elevated uplift loads due to earthquake or wind loading
• Wood construction projects requiring NDS-compliant bolt spacing
• End column installations utilizing 6-3/4" beams and 8X posts

What's Included

• 1 x Simpson Strong-Tie ECC78 End Column Cap
• Note: 3/4" Machine Bolts (2 for beam, 2 for post) are required for installation and are not included.

• Contact us for Configurable Options and Special orders
• Straps may be rotated 90 deg. (see SPECS)
• For special, custom or rough-cut lumber sizes, provide dimensions. An optional W2 dimension may be specified. (The W2 dimension on straps rotated 90 deg. is limited by the W1 dimension.)

Frequently Asked Questions

What beam and post sizes is the ECC78 compatible with?

The ECC78 is designed specifically for use with a 6-3/4" beam and an 8X post, making it important to confirm these dimensions match your project requirements before installation.

What makes the ECC78 suitable for seismic and wind load applications?

The ECC78 features enhanced uplift capacity specifically designed to address earthquake and wind loading requirements, along with certified welds that provide confidence in strength and loading performance throughout the life of the connection.

How does the extended bearing seat on the ECC78 benefit the connection?

The seat of the ECC78 extends beyond one side of the column, providing an expanded bearing surface area that helps distribute load efficiently from the beam while reinforcing the overall connection in end-of-beam applications.

What material and gauge steel is used in the construction of the ECC78?

The ECC78 is fabricated from 3-gauge steel and finished in Simpson Strong-Tie gray paint, providing heavy-duty construction built to perform under demanding structural conditions.
