Product Description

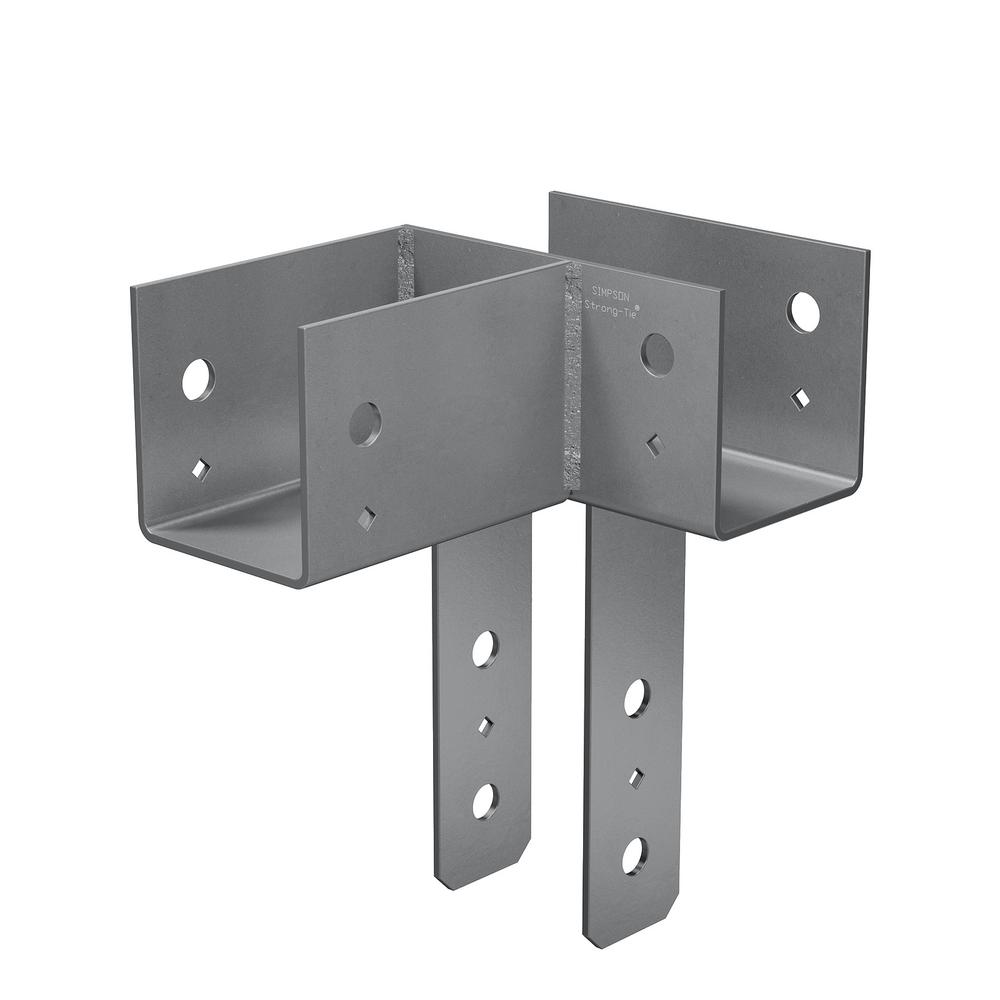

The Simpson Strong-Tie ECCLL666 L-Shape End Column Cap is engineered to deliver strong, reliable column-to-beam connections in end-of-beam applications where two beams intersect in an "L" formation on top of a column. Sized for a 6x main beam, 6x post, and 6x side beam, this skewed-left cap helps distribute load from the beams and provides critical structural support at the connection point. Built from heavy-duty 7-gauge steel with certified welds and a Simpson Strong-Tie gray paint finish, the ECCLL666 is crafted to perform with confidence in demanding construction environments. Simpson Strong-Tie column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Key Features
- Assembled with certified welds for confidence in strength and loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening

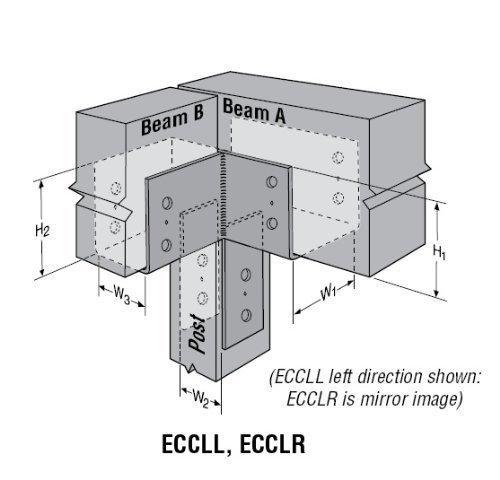

- Left direction; order ECCLR for right direction
- Nominal member sizes: 6x main beam, 6x post, 6x side beam
- Made from 7-gauge steel
- Simpson Strong-Tie gray paint finish
Specifications
- Model Number (MPN): ECCLL666
- Brand: Simpson Strong-Tie
- Series: ECCLL - L-Shape End Column Cap
- Direction: Skewed Left
- Member Size: 6x main beam, 6x post, 6x side beam
- Material: Steel
- Gauge: 7-gauge
- Finish / Coating: Simpson Strong-Tie Gray Paint
- Install With: 5/8-in. diameter bolts
- Country of Origin: ZZ
Approved Applications
- End-of-beam column-to-beam connections where two beams meet in an "L" formation on top of a column
- Applications requiring load distribution from intersecting beams down through a supporting post
- Projects utilizing 6x main beams, 6x posts, and 6x side beams
- Construction applications requiring NDS code-compliant bolt spacing
- Installations where a skewed-left L-shape cap orientation is specified by the project designer
What's Included
- 1 x Simpson Strong-Tie ECCLL666 L-Shape End Column Cap (Skewed Left)
Note: Fasteners (5/8-in. diameter bolts) are not included and must be sourced separately.
Options
- Many combinations of beam and post sizes can be manufactured. Refer to worksheet Options for Multiple-Beam, Bolted Column Caps.
-
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What beam and post sizes is the ECCLL666 designed to fit?
- The ECCLL666 is sized for a 6x main beam, a 6x post, and a 6x side beam. It is intended for end-of-beam applications where two beams meet in an "L" formation on top of a column.
- What is the difference between the ECCLL666 and the ECCLR666?
- The ECCLL666 is skewed left, meaning the "L" formation it supports is oriented to the left. If your project requires a right-skewed orientation, you should order the ECCLR model instead.
- What fasteners are required to install the ECCLL666?
- The ECCLL666 should be installed with 5/8-inch diameter bolts. The bolt spacing is designed to meet NDS code requirements to ensure optimal performance. Diamond holes are also included on the cap to allow for temporary fastening during installation.
- What material and finish is the ECCLL666 made from?
- The ECCLL666 is constructed from 7-gauge steel and features a Simpson Strong-Tie gray paint finish. It is assembled with certified welds to provide confidence in its strength and load-carrying capacity.
