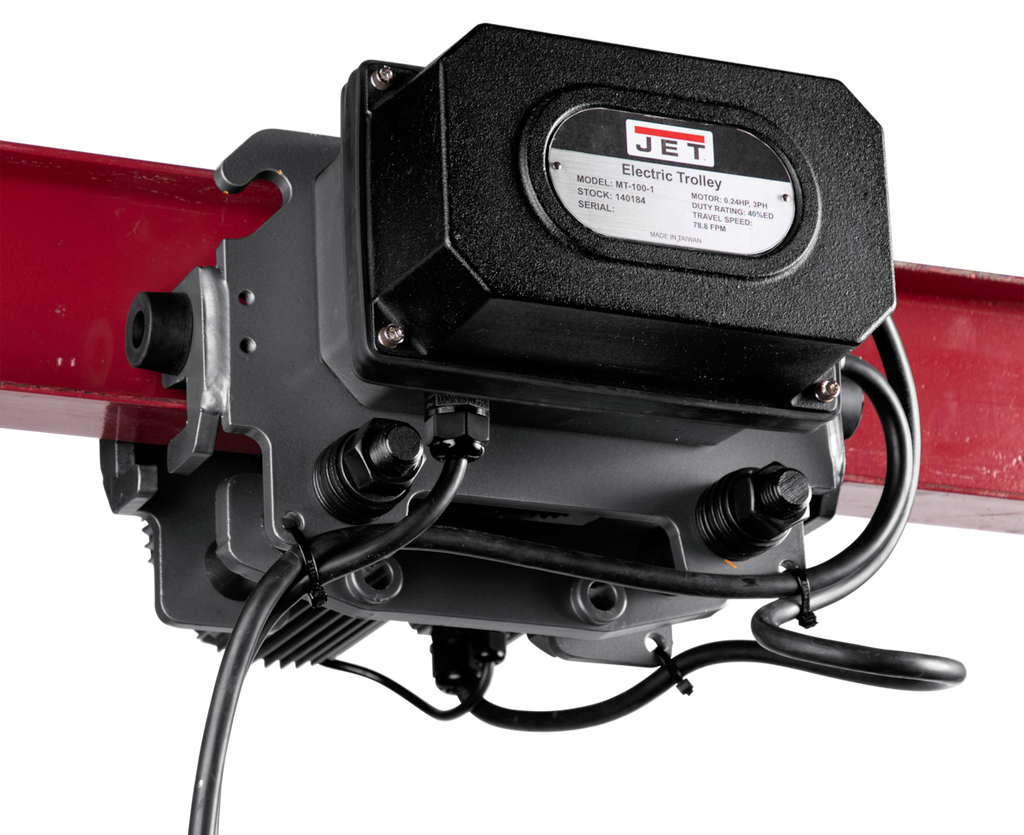

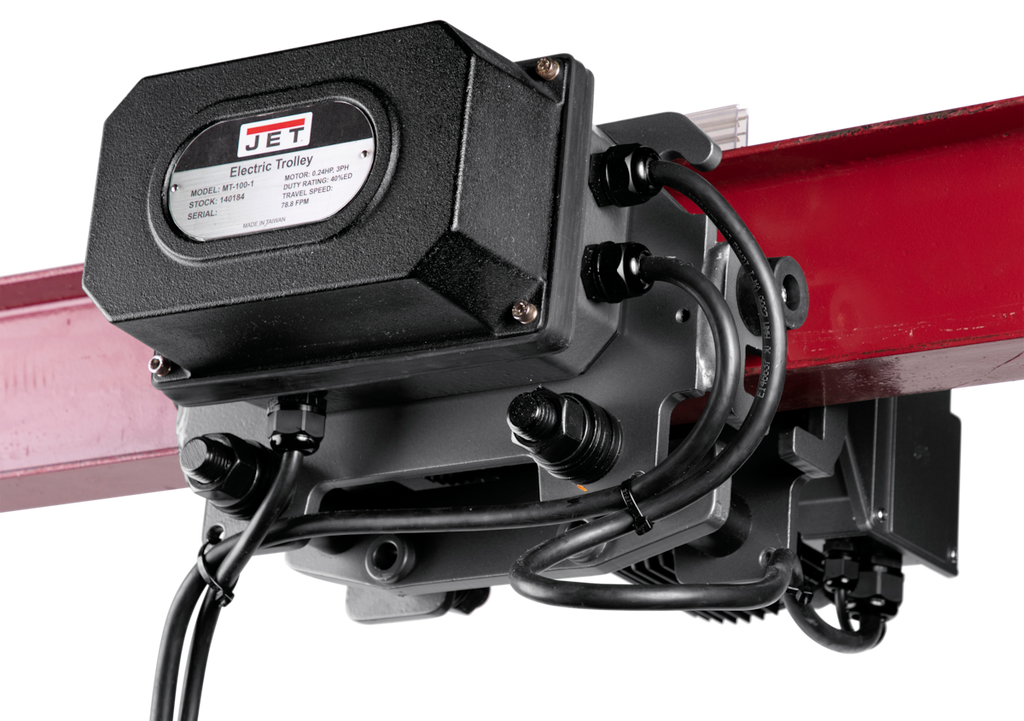

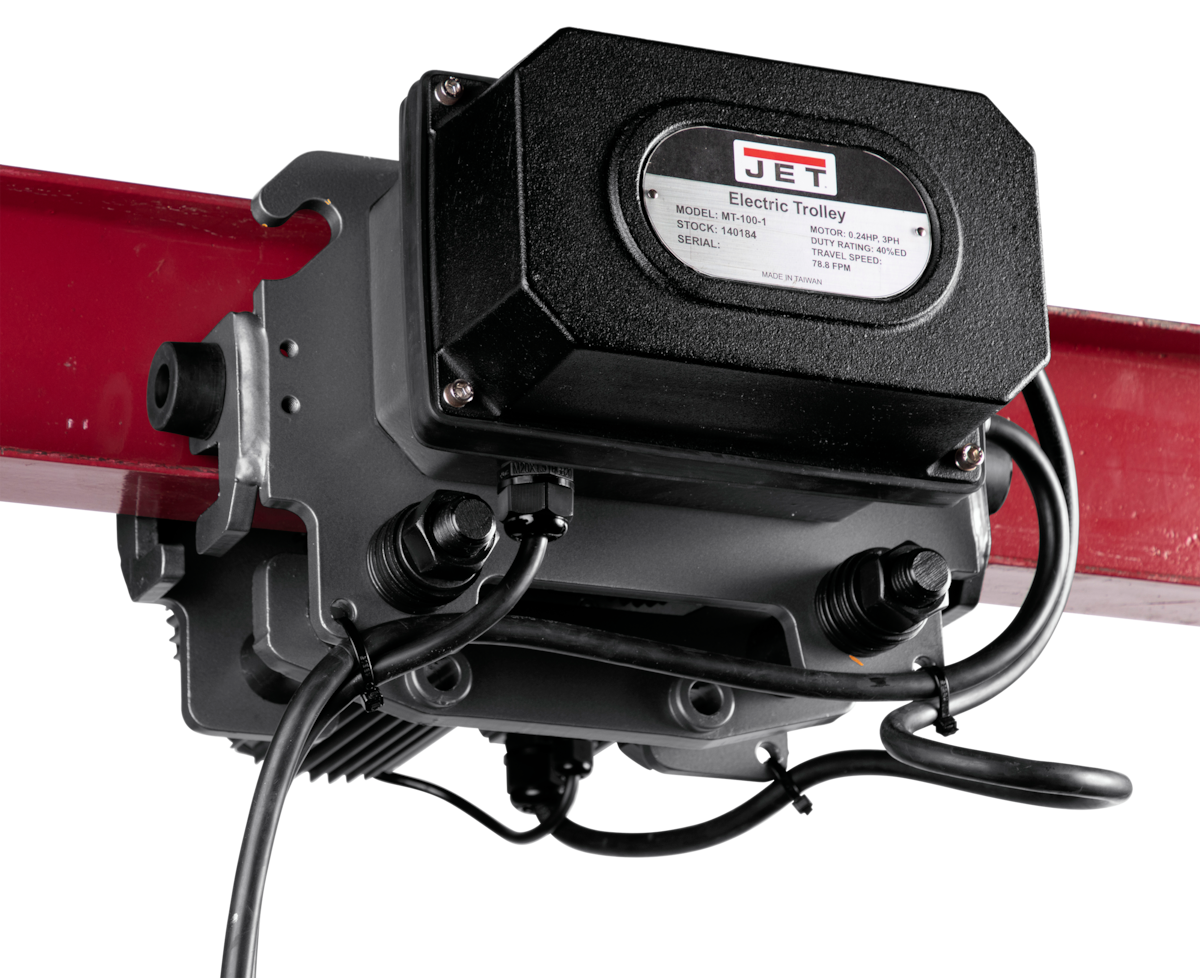

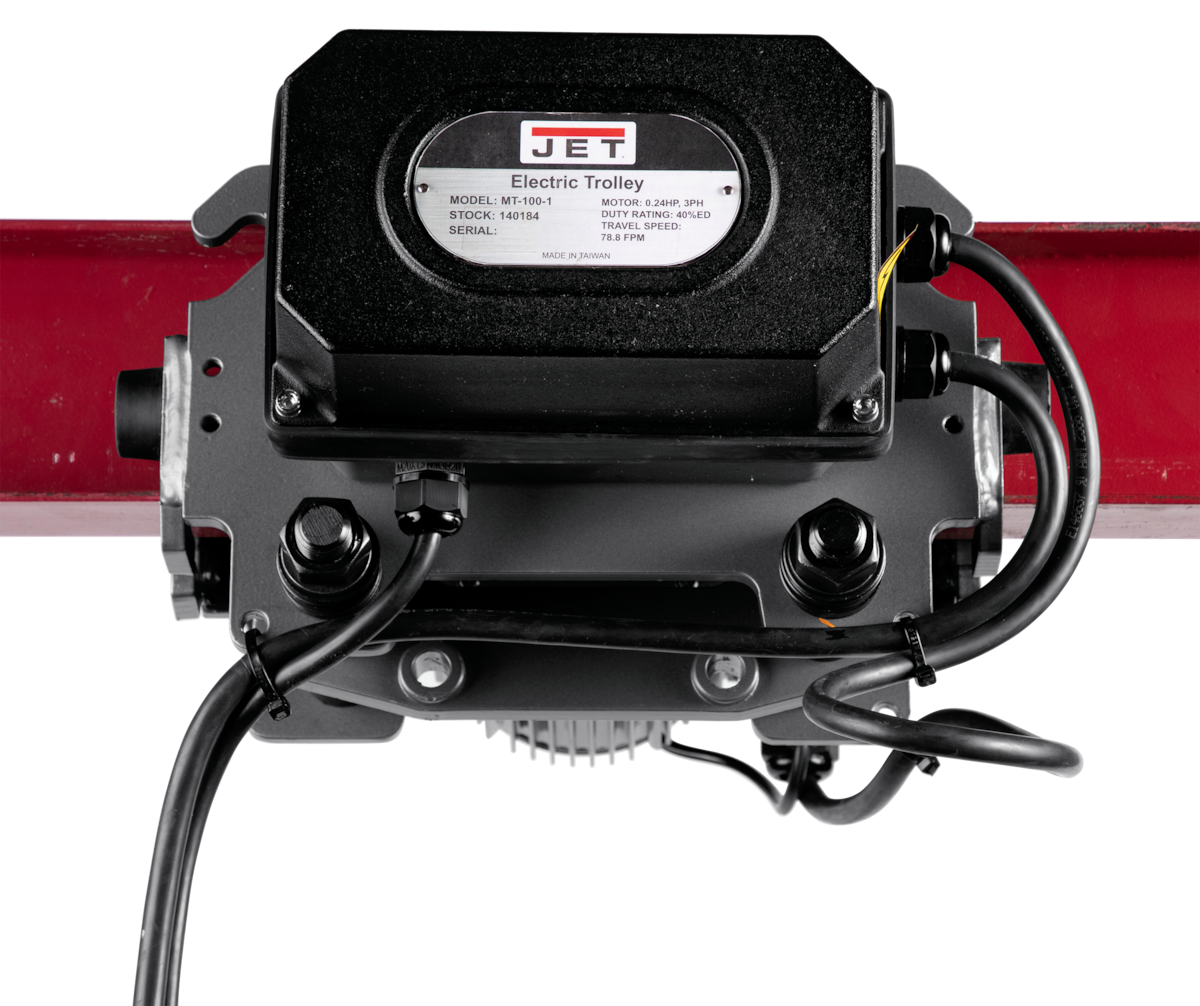

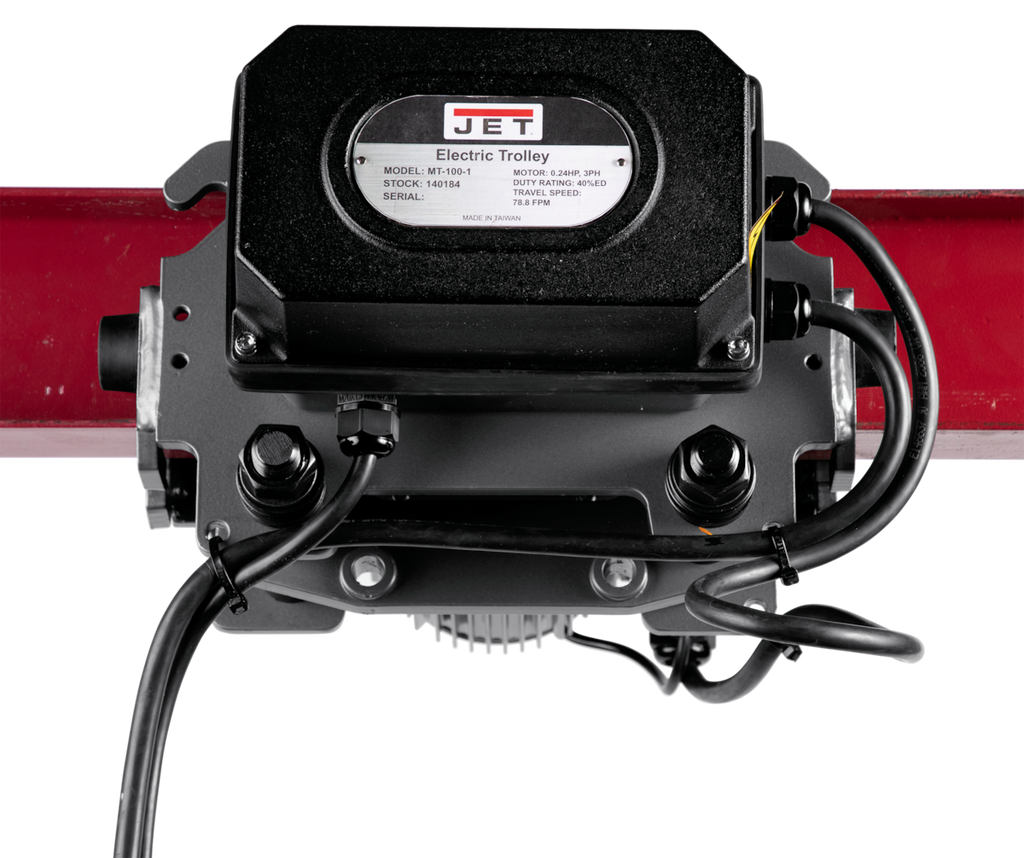

JET MT300 3 Ton Two Speed Electric Trolley, 3-Phase 230V by JET is a heavy-duty industrial electric trolley engineered for safe, efficient, and reliable overhead material handling in the most demanding work environments. Rated for a 6,600 lb. capacity and powered by a 0.8 HP motor - the strongest in its class - this trolley delivers the power and precision professionals require to move heavy loads quickly and position them exactly where needed.
Key Features

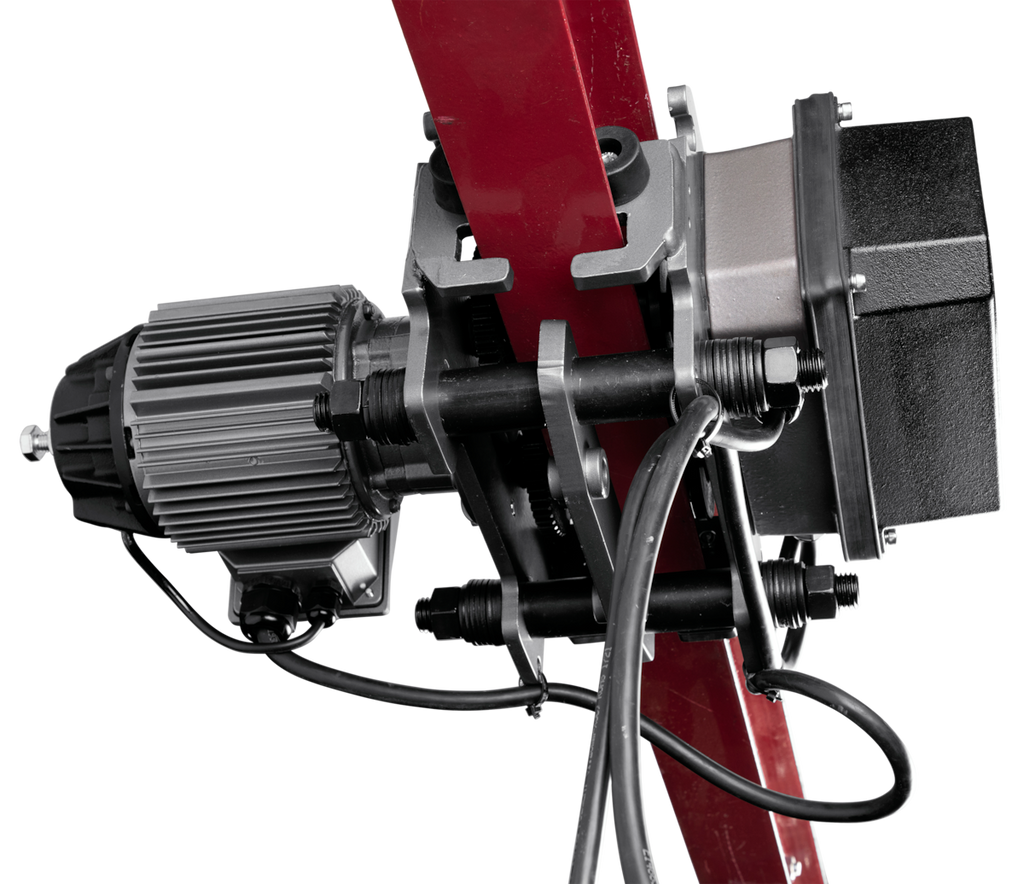

- Heavy-Duty Motor: Puts out up to 0.8HP making it the strongest in its class, ensuring maximum performance under demanding load conditions.
- TAA Approved: Meets Trade Agreements Act requirements, making it suitable for qualifying government and commercial procurement contracts.
- Two Speed Operation: Two speeds reduces bump firing while still allowing high speed movement of materials, enabling rapid transit and precise, controlled placement of every load.

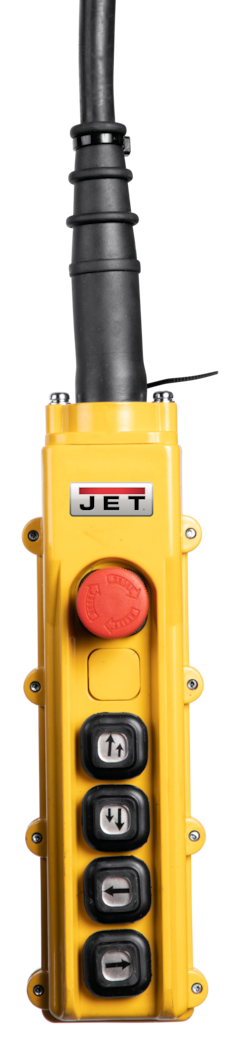

- Indoor and Outdoor Rated: Features an IP-55 rating for the trolley and an IP-65 rating for the pendant, supporting reliable use in both indoor and outdoor environments.

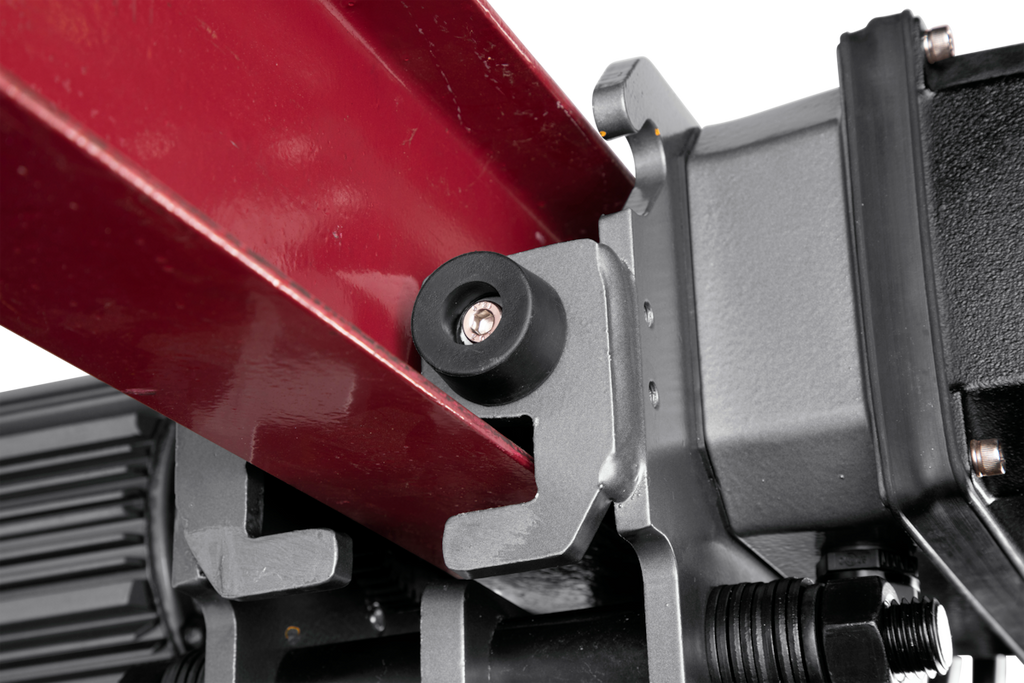

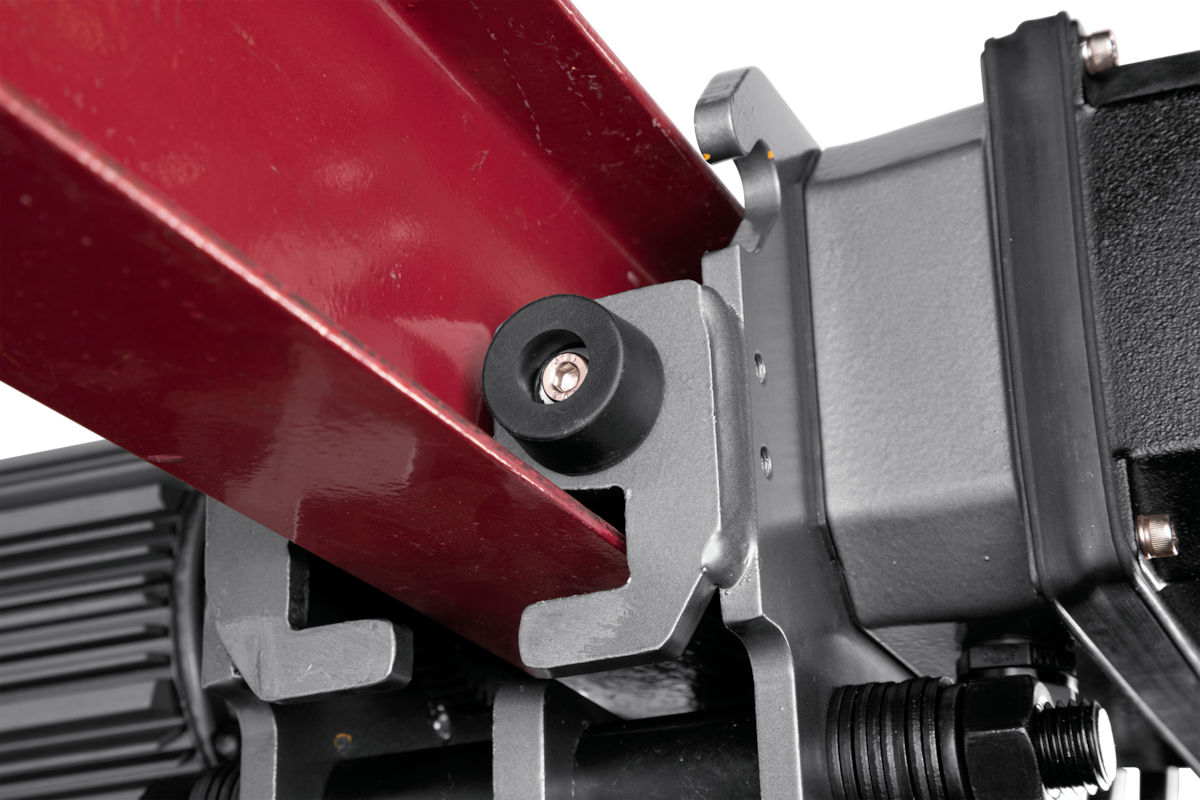

- Expanded Flange Capacity: Expanded flange capacity kits are available, providing added versatility to accommodate a wider range of beam flange widths.
- Variable Travel Speeds: Operates at a high travel speed of 79 FPM for efficient load movement and a low speed of 20 FPM for safe, precise placement.
Specifications
- MPN: JT9-140189
- Stock Number: 140189
- Capacity (Lbs.): 6,600
- Load Capacity (Tons): 3
- Motor (HP): 0.2 / 0.8
- Motor Voltage (V.): 230
- Travel Speed - High (FPM): 79.0
- Travel Speed - Low (FPM): 20.0
- Minimum Beam Flange Width (In.): 5
- Maximum Beam Flange Width (In.): 7
- Minimum Beam Curve Radius (In.): 78.7
- Wheel Diameter (In.): 1-1/2
- Wheel to Hook Mount (In.): 5.0
- Weight (Lbs.): 126
- IP Rating - Trolley: IP-55
- IP Rating - Pendant: IP-65
- Phase: 3-Phase
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What is the maximum load capacity of the JET MT300 electric trolley?
- The JET MT300 electric trolley has a rated capacity of 6,600 lbs. (3 tons), making it suitable for handling heavy industrial loads safely and efficiently.
- Can this electric trolley be used outdoors?
- Yes. The JET MT300 is rated for both indoor and outdoor use. The trolley carries an IP-55 ingress protection rating, and the pendant carries an IP-65 rating, providing resistance to dust and water in outdoor conditions.
- What are the two travel speeds and why does two-speed operation matter?
- The trolley operates at a high speed of 79 feet per minute for efficient movement of materials across the work area, and a low speed of 20 feet per minute for precise, controlled placement. Two speeds reduces bump firing while still allowing high speed movement of materials, reducing wear on the load and the equipment.
- What beam flange widths is this trolley compatible with, and can it accommodate wider flanges?
- The JET MT300 is compatible with beam flange widths from a minimum of 5 inches up to a maximum of 7 inches. Additionally, expanded flange capacity kits are available to extend compatibility to a wider range of beam sizes.
