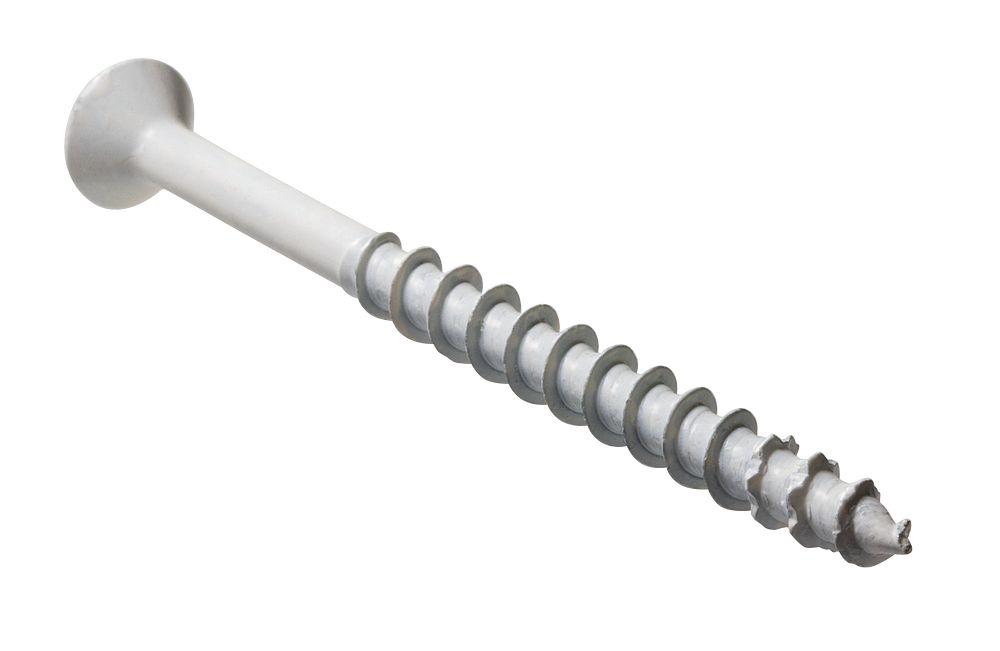

Simpson Strong-Tie Titen Turbo 3/16 x 1-3/4 Flat Head Screw Anchor in White is engineered for fast, reliable fastening in concrete and masonry applications. Featuring a patented thread design that reduces driving torque while delivering superior holding power, this carbon steel screw anchor makes wood-to-concrete and structural anchoring jobs smoother and more consistent. The Torque Reduction Channel between threads clears drilling dust during installation, virtually eliminating the binding, stripping, and snapping that frustrate installers working with traditional concrete screw anchors.

Key Features

• Torque Reduction Channel thread design - channels drilling dust away during driving, significantly reducing torque buildup so the anchor installs smoothly without binding, stripping, or snapping

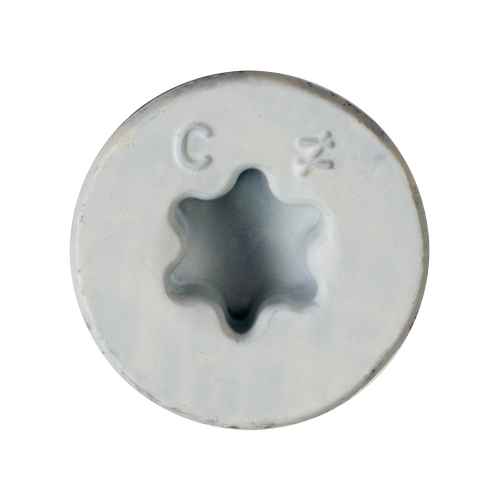

• Flat head profile with T25 6-lobe drive - sits flush against the surface for a clean, low-profile finish while the 6-lobe drive delivers positive torque transfer and reduces cam-out during installation
• Zinc plated with ceramic coating in white - the dual-layer finish provides corrosion resistance and a clean white appearance that blends with painted surfaces and trim applications
• 3/16 in. diameter x 1-3/4 in. length - compact size suited for lighter-duty concrete and masonry anchoring where a smaller fastener footprint is required
• Carbon steel construction - delivers the tensile strength and holding power needed for reliable structural and non-structural fastening in concrete and masonry
• Requires a 5/32 in. drill bit - tight hole-to-fastener tolerance ensures a secure mechanical connection and consistent pullout resistance in the base material

Why This Product

• The Torque Reduction Channel addresses one of the most common problems with concrete screw anchors - torque buildup - making this fastener a practical upgrade for anyone who has experienced stripped or snapped anchors on the job
• The white ceramic coating makes this anchor well suited for finish applications where the fastener is visible, such as attaching trim, molding, or white-painted wood to concrete or masonry walls
• The flat head design allows the fastener to sit flush with the surface, avoiding interference with overlying materials and producing a cleaner finished appearance compared to hex-head or pan-head alternatives
• The T25 6-lobe drive bit interface provides better engagement than traditional Phillips or slotted drives, reducing installer fatigue and bit wear during repetitive fastening tasks in concrete and masonry

Specifications

• Brand: Simpson Strong-Tie
• Diameter: 3/16 in.
• Length: 1-3/4 in.
• Head Type: Flat Head
• Drive Type: T25 6-Lobe
• Drill Bit Diameter: 5/32 in.
• Material: Carbon Steel
• Coating: Zinc Plated with Ceramic Coating
• Color: White
• Measurement Unit: Pack
• Country of Origin: Taiwan

Available Pack Options

• TNTW18134TFC8: 8 Pk
• TNTW18134TFC75: 75 Pk - includes T25 driver bit and standard ANSI drill bit

Frequently Asked Questions

What size drill bit is required for the 3/16 Titen Turbo screw anchor?

A 5/32 in. drill bit is required to create the pilot hole for this anchor. Using the correct bit size ensures the anchor threads engage the base material properly for maximum holding power and a consistent installation.

What does the Torque Reduction Channel do?

The Torque Reduction Channel is a patented feature built between the threads of the Titen Turbo anchor. It gives drilling dust a dedicated path to escape during installation, which significantly reduces the torque buildup that causes common problems like binding, stripping, and snapping.

What drive bit is compatible with this screw anchor?

This anchor uses a T25 6-lobe drive interface. The 6-lobe geometry provides superior engagement compared to traditional drive types, helping maintain control and reduce cam-out during driving into concrete or masonry.

Why is this anchor available in white with a ceramic coating?

The white ceramic coating over the zinc plating gives this anchor a finished appearance suited for visible applications - such as fastening white or painted trim, molding, or wood components to concrete and masonry surfaces - where a bare or silver-colored fastener head would be unsightly.

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
