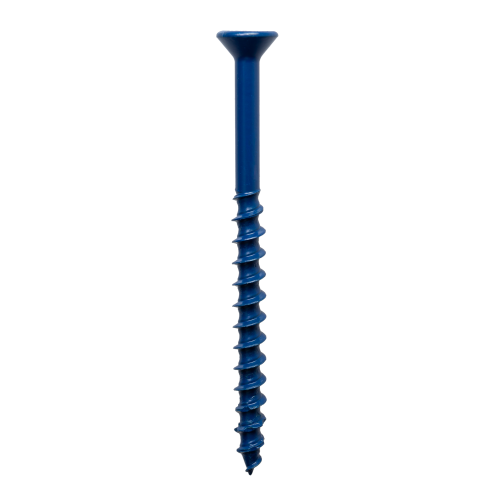

Simpson 3/16 x 2-3/4 Flat Head Titen Turbo Screw Anchor by Simpson is a high-performance concrete and masonry screw anchor engineered for wood-to-concrete and wood-to-masonry anchoring applications. Its patented reverse thread design cuts directly into concrete or masonry, delivering fast, reliable installation with less torque than traditional anchors while maintaining superior holding power. The zinc plated with ceramic coating and carbon steel construction make this flat head screw anchor a dependable choice for a wide range of structural fastening tasks.

Key Features

• Patented reverse thread design - cuts smoothly into concrete or masonry, reducing driving torque so installers work faster with less fatigue

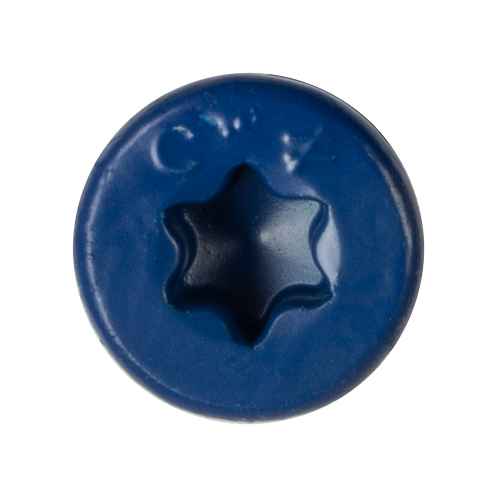

• Flat head profile with T25 6-Lobe drive - sits flush with the surface after installation for a clean, low-profile finish, and the 6-lobe drive resists cam-out for more controlled fastening
• 3/16 in. diameter x 2-3/4 in. length - a compact, versatile size suited for wood-to-concrete and wood-to-masonry connections where precision fit matters
• Zinc plated with ceramic coating - provides a corrosion-resistant barrier that extends the service life of the anchor in demanding installation environments
• Carbon steel construction - delivers the tensile strength needed to hold securely under load in concrete and masonry substrates
• Standard Blue color - the recognizable Titen Turbo color makes identification on the job site quick and easy
• 5/32 in. drill bit diameter required - a precise pilot hole spec ensures the correct fit and maximum holding performance in the base material

Why This Product

• The reverse thread cutting action drives into concrete or masonry without pre-tapping, saving installation time and reducing the steps needed to complete a wood-to-concrete fastening job
• The T25 6-lobe drive geometry reduces the chance of bit slippage during installation, giving installers better torque transfer and more consistent results in hard substrates
• The flat head design seats flush with the workpiece surface, making this anchor the right choice when a low-profile, finished appearance is required after installation
• The zinc plated with ceramic coating adds a layer of corrosion resistance beyond standard zinc plating alone, helping the anchor hold up in conditions where moisture or environmental exposure is a concern

Specifications

• Brand: Simpson Strong-Tie
• Diameter: 3/16 in.
• Length: 2-3/4 in.
• Head Type: Flat Head
• Drive Type: T25 6-Lobe
• Drill Bit Diameter: 5/32 in.
• Material: Carbon Steel
• Coating: Zinc Plated with Ceramic Coating
• Color: Standard Blue
• Measurement Unit: Pack
• Country of Origin: Taiwan

Available Pack Options

• TNT18234TFC8: 8 Pk
• TNT18234TFC25: 25 Pk
• TNT18234TFC75: 75 Pk - includes T25 driver bit and standard ANSI drill bit
• TNT18234TFR200: 200 Pk - includes T25 driver bit and standard ANSI drill bit

Frequently Asked Questions

What size pilot hole do I need to drill for this anchor?

A 5/32 in. drill bit is the required pilot hole diameter for the 3/16 x 2-3/4 Titen Turbo screw anchor. Using the correct pilot hole size is essential to achieving the proper fit and maximum holding strength in concrete or masonry.

What drive bit does the Titen Turbo flat head anchor use?

This anchor uses a T25 6-Lobe drive. The 6-lobe geometry improves torque transfer and reduces cam-out compared to standard drive types, making installation more controlled and efficient.

What materials can this screw anchor be used in?

The Titen Turbo screw anchor is designed to cut directly into concrete or masonry substrates. It is intended for wood-to-concrete and wood-to-masonry anchoring applications, where the reverse thread design provides smooth driving and strong holding power without pre-tapping.

What type of coating does this anchor have, and why does it matter?

This anchor features a zinc plated with ceramic coating over a carbon steel body. This dual-layer finish provides corrosion resistance beyond standard zinc plating, helping the fastener maintain its integrity and performance when exposed to moisture or other environmental conditions on the job site.

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
