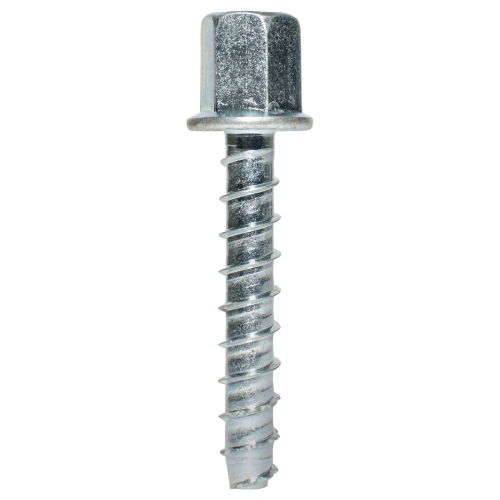

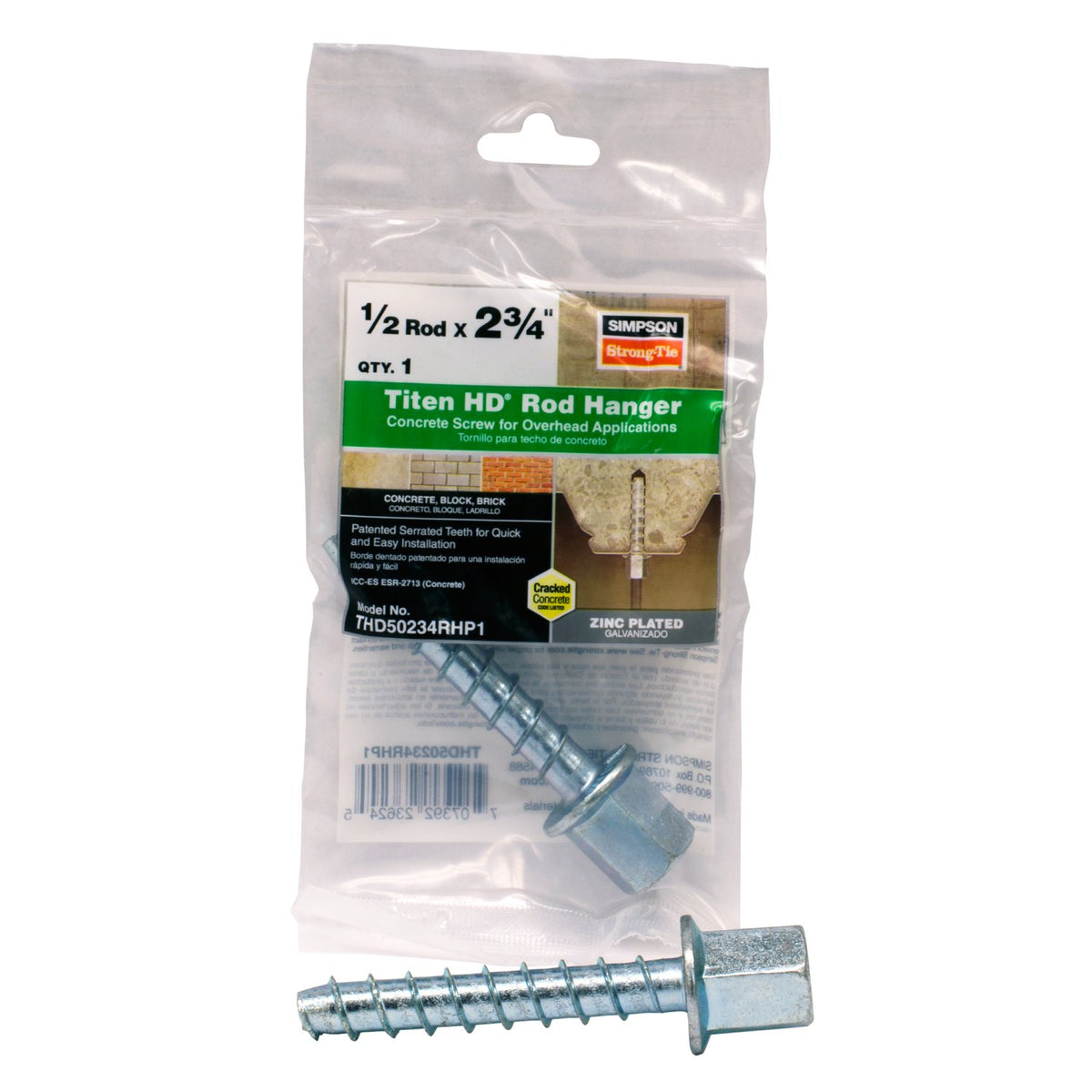

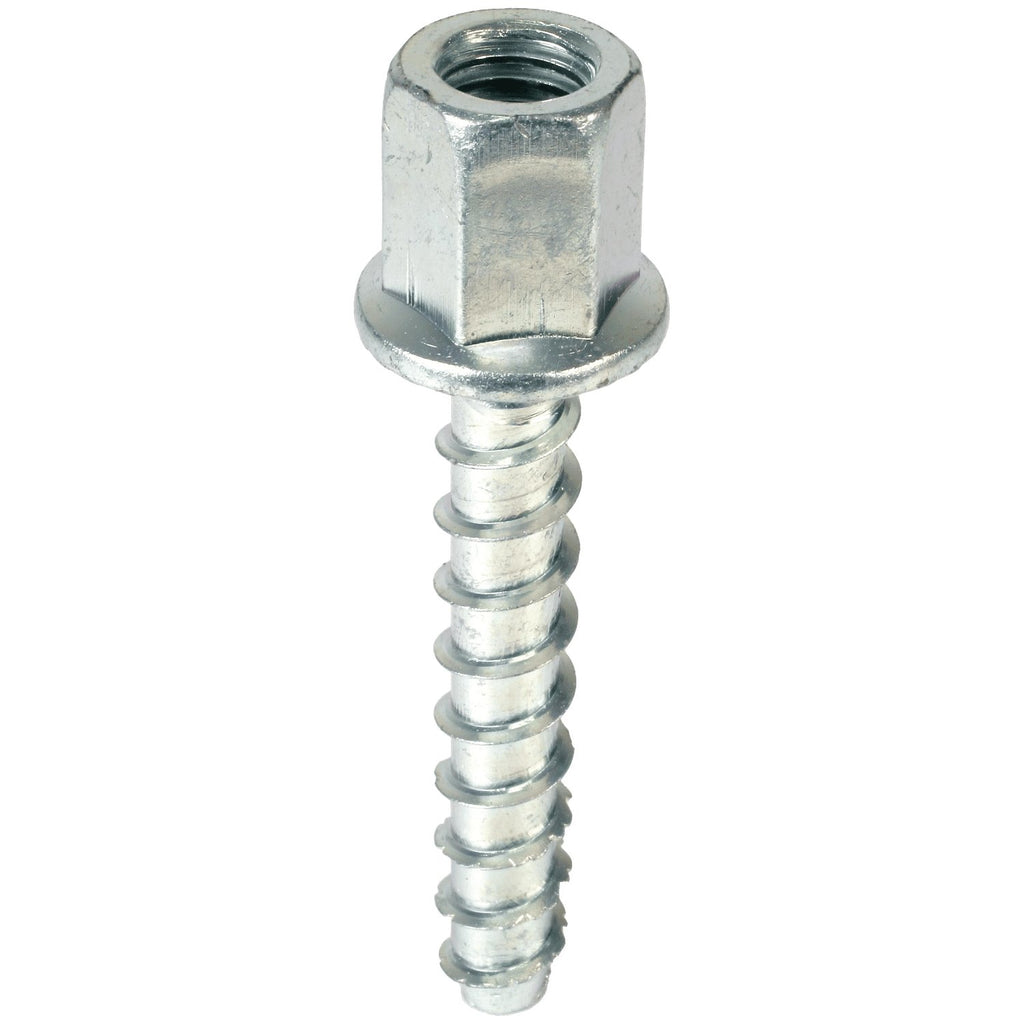

Simpson 3/8 x 2-3/4 Titen HD Threaded Rod Hanger for 1/2" Rod by Simpson is a high-strength screw anchor engineered to suspend threaded rod from concrete slabs, beams, or concrete over metal - making it a go-to solution for contractors hanging pipes, cable trays, and HVAC equipment. The zinc plated carbon steel construction delivers corrosion resistance suitable for a wide range of interior mechanical and electrical suspension applications. Designed for efficiency on the job site, this threaded rod hanger installs with low torque and requires no secondary setting, saving time and labor without sacrificing holding power in demanding structural conditions.

Key Features

• High-strength screw anchor design - engineered specifically to suspend threaded rod from concrete substrates, giving mechanical and HVAC installers a secure, reliable overhead attachment point
• 3/8 in. anchor diameter with 3/8 in. drill bit requirement - anchor and drill sizes match exactly so you drill once and install without upsizing or reworking the hole
• Accepts 1/2 in. threaded rod - compatible with standard 1/2 in. rod commonly used in pipe hangers, conduit supports, and cable tray suspension systems
• Zinc plated carbon steel construction - provides corrosion protection for interior concrete ceiling and beam applications while maintaining the structural integrity of the carbon steel body

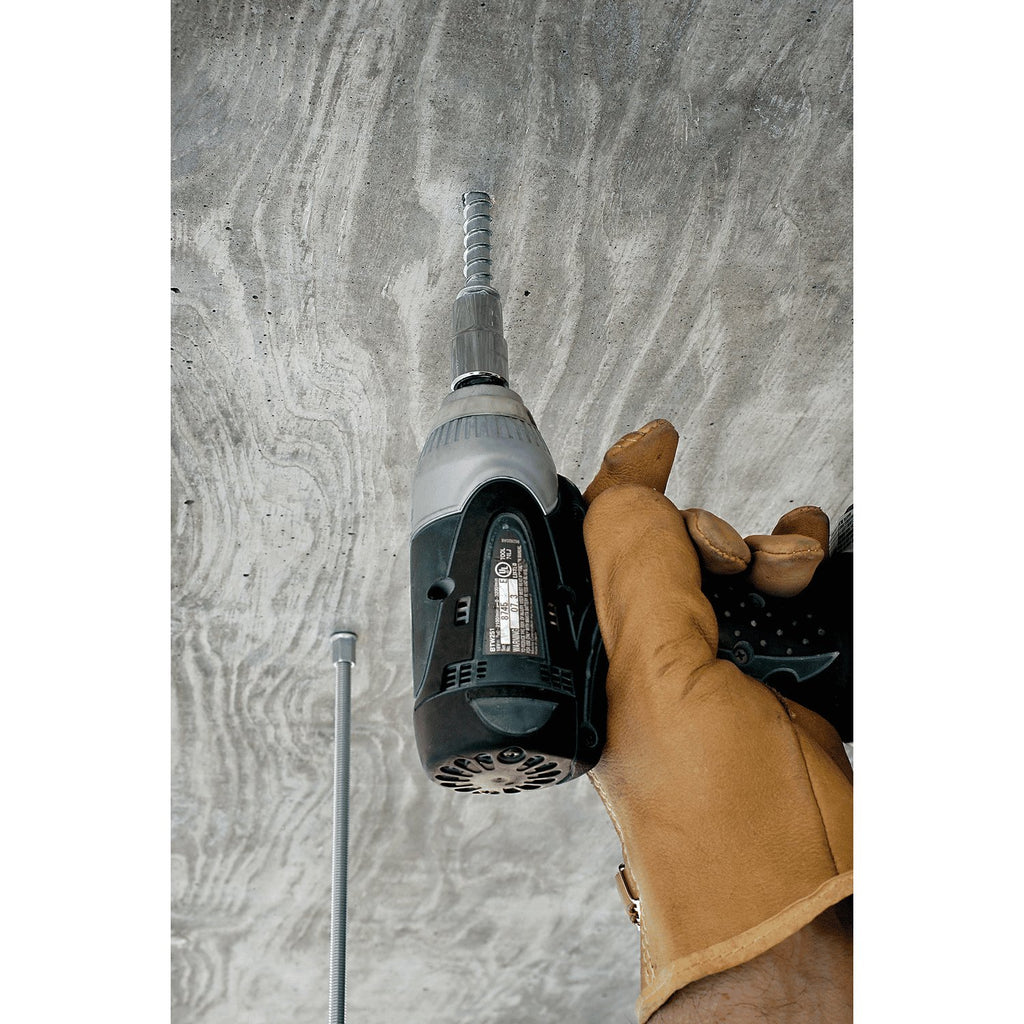

• Low installation torque with no secondary setting required - reduces installer fatigue and speeds up large-scale projects where dozens or hundreds of anchors may be installed in a single session
• Tested in cracked and uncracked concrete, including seismic loading conditions - gives engineers and inspectors confidence that this anchor meets code requirements in seismically active regions
• 11/16 in. wrench size - installs with standard-sized sockets, so no specialty tooling is needed to complete the installation

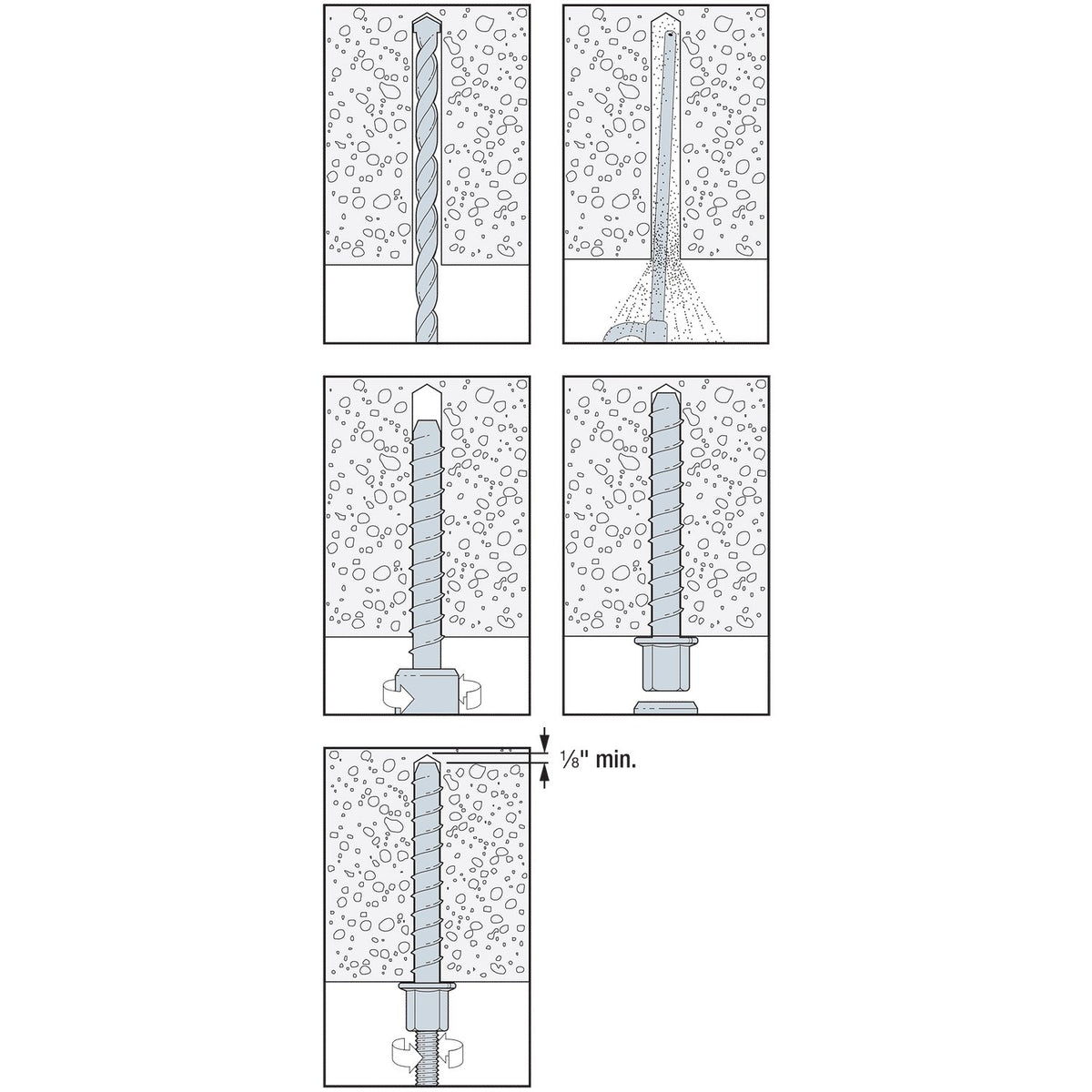

• 2-3/4 in. minimum embedment depth - ensures adequate anchoring depth in concrete slabs and beams for reliable load-bearing performance

Why This Product

• Proven performance in the toughest concrete conditions - independently tested in both cracked and uncracked concrete as well as under seismic loading, this anchor is suitable for projects where structural performance documentation is required by code or inspection
• Streamlined installation process - low torque requirements and no secondary setting step mean faster anchor installation on large mechanical, plumbing, or HVAC rough-in jobs where time directly affects labor cost
• Compatible with standard tools and hardware - the 11/16 in. wrench size works with ordinary sockets and the 3/8 in. drill bit is a common size, so installers don't need to carry extra specialty equipment to the job site
• Versatile concrete suspension anchor - suitable for use in concrete slabs, beams, and concrete over metal deck, covering the majority of overhead concrete conditions encountered in commercial and industrial construction

Specifications

• Brand: Simpson Strong-Tie
• Diameter: 3/8 in.
• Bolt/Rod Diameter: 1/2 in.
• Drill Bit Diameter: 3/8 in.
• Wrench Size: 11/16 in.
• TPI: Variable
• Coating: Zinc Plated
• Finish: Zinc Plated
• Material: Carbon Steel
• Country of Origin: China

Available Pack Options

• THD50234RHP1: 1 Ea
• THD50234RHC8: 8 Pk
• THD50234RH: 50 Pk
• THD50234RH -3: 150 Pk

Install With

• Installs with standard-sized sockets

Frequently Asked Questions

What types of concrete substrates can this threaded rod hanger be installed into?

This anchor is designed for installation into concrete slabs, concrete beams, and concrete over metal deck - covering the most common overhead concrete conditions found in commercial and industrial construction projects.

Is this anchor suitable for use in seismic zones?

Yes. The Titen HD threaded rod hanger has been tested to offer industry-leading performance in both cracked and uncracked concrete, including under seismic loading conditions, making it appropriate for projects in seismically active areas where anchors must meet specific code performance requirements.

What size threaded rod does this hanger accept, and what drill bit is needed for installation?

This hanger is sized to accept 1/2 in. threaded rod. Installation requires a 3/8 in. drill bit to create the anchor hole, and a standard 11/16 in. socket is used to drive the anchor - no specialty tooling is required.

Does this anchor require a secondary setting step after installation?

No. The Titen HD threaded rod hanger is designed for straightforward installation with low torque and no secondary setting required, which simplifies the installation process and reduces overall time on the job site.

Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
