Product Description

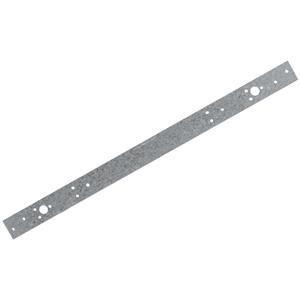

The Simpson RPS22Z RPS 22-5/16 in. 16-Gauge ZMAX Galvanized Retrofit Strap Tie by Simpson Strong-Tie is a heavy-duty repair strap engineered for wood members where pipes and ducts have been installed. Featuring a ZMAX galvanized coating for superior corrosion resistance, this strap is ideal for exterior and treated-wood applications where long-term durability is essential. It meets IBC, IRC, and City of Los Angeles code requirements for HVAC and pipes in walls, making it a trusted solution for both new construction and retrofit projects.
Key Features
- Repair strap for wood members where pipes and ducts are installed
- Fits on the narrow face of a 2x member
- Fasten where plates or soles are cut, at wall intersections or as a ridge tie
- Staggered nail pattern for optimal load distribution and fastener interference prevention
- Width: 1-1/2 in.
- Length: 22-5/16 in.
- Made from 16-gauge steel for reliable structural performance
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Meets IBC, IRC, and City of Los Angeles code requirements for HVAC and pipes in walls
- Made in the United States
Specifications
- Model Number: RPS22Z
- Gauge: 16
- Width: 1-1/2 in.
- Length: 22-5/16 in.
- Coating: ZMAX
- Finish: ZMAX
- Installation Fasteners: Install with (12 - 16) 0.162 in. x 2-1/2 in. nails (sold separately)
- Country of Origin: United States
Approved Applications
- Reinforcing sill plates where pipes or ducts have been cut through wall framing
- Fastening at wall intersections for added structural integrity
- Used as a ridge tie in appropriate framing configurations
- Reinforcing top plates and sill plates in wood-frame construction
- HVAC and pipe installation repairs in walls per IBC, IRC, and City of Los Angeles code
Frequently Asked Questions
- What is the RPS22Z designed to repair?
- The RPS22Z is specifically designed as a repair strap for wood members where pipes and ducts have been installed. It restores structural integrity to framing members such as top plates and sill plates that have been cut or notched during plumbing or HVAC installation.
- What type of fasteners are required to install the RPS22Z?
- The RPS22Z should be installed with (12 - 16) 0.162 in. x 2-1/2 in. nails, as specified by Simpson Strong-Tie for proper load transfer and code compliance.
- Why is the ZMAX coating important for this strap tie?
- The ZMAX galvanized coating provides extra corrosion resistance compared to standard galvanization, making the RPS22Z suitable for exterior environments and applications involving treated lumber, where standard coatings may deteriorate more quickly over time.
- Does the RPS22Z meet building code requirements?
- Yes. The RPS22Z meets IBC, IRC, and City of Los Angeles code requirements for HVAC and pipes in walls, making it an approved solution for code-compliant retrofit and repair installations in residential and commercial construction.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
