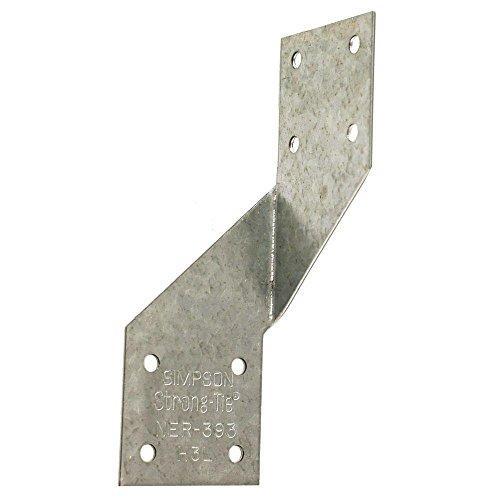

The Simpson Strong-Tie H3SS H3 18-Gauge Stainless-Steel Hurricane Tie is a single-sided hurricane tie engineered to resist moderate loads at the rafter/truss-to-top-plate connection. As part of a continuous load path, the H3SS resists both lateral and uplift loads, providing a reliable structural connection that helps guard against wind and seismic forces. Available in left- and right-hand models, these ties can be installed in pairs to deliver balanced, code-compliant performance in high- and severe-corrosion environments.

Key Features

• Provides a connection between the rafter or truss and the wall of the structure that helps resist wind and seismic forces
• Approved for installation with load-rated Strong-Drive SD Connector screws
• Use also for a variety of connections where one member crosses another
• Made from 18-gauge steel
• Stainless steel for high/severe corrosion resistance

Specifications

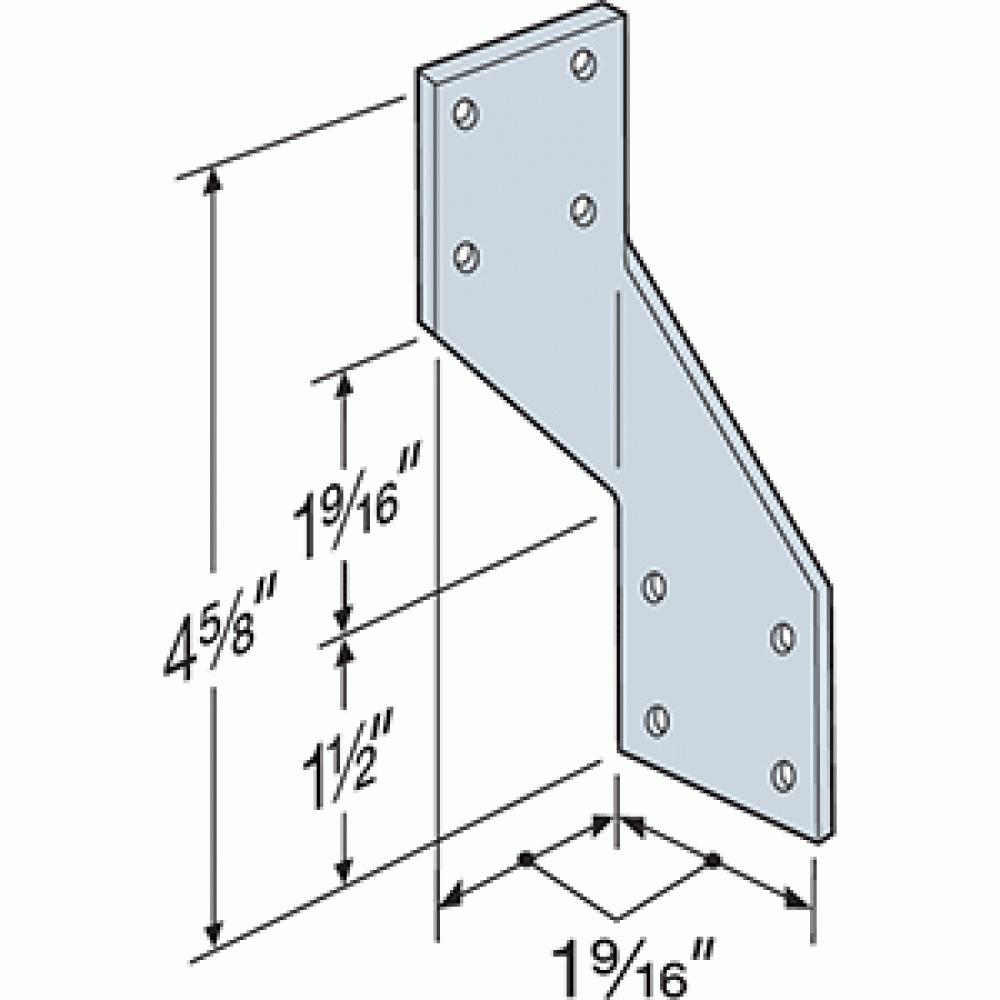

• Model Number: H3SS
• Gauge: 18
• Width: 1-9/16 in.
• Height: 4-5/8 in.
• Material: Stainless Steel
• Finish: Stainless Steel
• Country of Origin: United States

Approved Applications

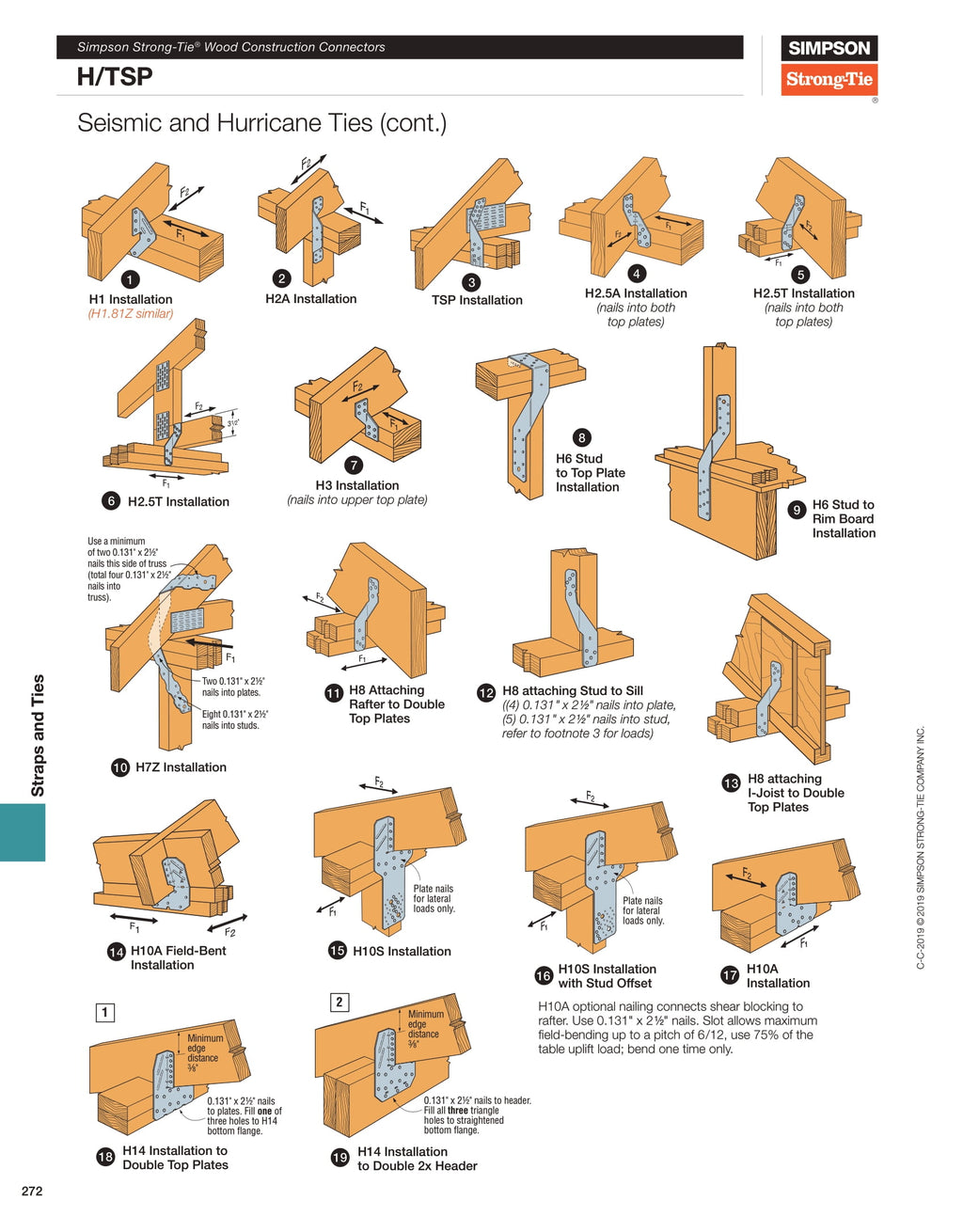

• Rafter-to-top-plate connections requiring resistance to moderate uplift and lateral loads
• Truss-to-top-plate connections as part of a continuous load path
• A variety of connections where one structural member crosses another
• Installations in high-corrosion and severe-corrosion exposure environments where stainless steel fasteners and connectors are required

Frequently Asked Questions

What fasteners are required to install the H3SS hurricane tie?

Each tie requires (8) 0.131 in. x 2-1/2 in. stainless-steel nails. The ties are also approved for installation with load-rated Strong-Drive SD Connector screws, specifically (8) #9 x 1-1/2 in. SD Connector screws per tie.

Do hurricane ties replace solid blocking?

No. Hurricane ties do not replace solid blocking. They are designed to provide a rafter/truss-to-top-plate connection that resists lateral and uplift loads as part of a continuous load path, but solid blocking must still be used where required.

Can the H3SS be installed on plated trusses?

Yes, but care must be taken. When installing ties on plated trusses on the side opposite the truss plate, do not fasten through the truss plate from behind. Doing so can force the truss plate off of the truss and compromise truss performance.

Why is the stainless-steel version recommended for certain environments?

The H3SS is made from stainless steel, providing high/severe corrosion resistance. This makes it the appropriate choice for coastal or other high-corrosion environments where standard or galvanized connectors may not provide sufficient long-term durability. Use Type 316 stainless-steel nails with stainless-steel connector products.

Related Products

• Nails 0.131 x 2-1/2"
• #9 x 1 1/2"

Note: Hurricane ties do not replace solid blocking. When installing ties on plated trusses on the side opposite the truss plate, do not fasten through the truss plate from behind, as this can force the truss plate off of the truss and compromise truss performance. Use Type 316 stainless-steel nails with stainless-steel connector products.
