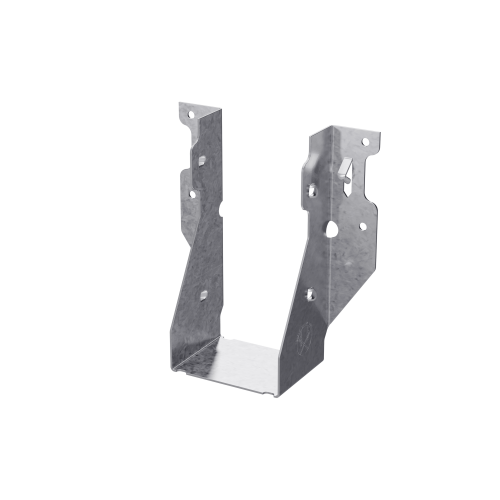

The Simpson LUS36SS LUS Stainless-Steel Face-Mount Joist Hanger is a Simpson engineered connector built to deliver reliable, load-rated support beneath joists, rafters, or beams in a wide range of structural framing applications. Constructed from 18-gauge stainless steel, this face-mount hanger is designed specifically for exterior and treated-wood environments where corrosion resistance is critical, and its double-shear nailing design distributes load through two points on each joist nail so builders get a stronger connection with fewer fasteners and faster installation.

Key Features

• Double-shear nailing design - distributes load through two points on each joist nail, delivering greater strength with fewer nails so installation goes faster without sacrificing holding power
• Speed prongs - temporarily position and secure the connector during installation, freeing both hands and reducing the chance of misalignment on the job
• Angled joist nailing - allows fasteners to be driven at an angle, making it practical to complete connections even in confined or tight framing spaces
• 18-gauge stainless steel construction - provides extra corrosion resistance suited to exterior decks, docks, and framing involving pressure-treated lumber where standard steel connectors are vulnerable
• Fits nominal 3x6 and 3x8 joists - gives framing crews flexibility to use a single hanger model across two common lumber dimensions on the same project
• Tested, load rated, and code compliant - LUS-series hangers meet recognized code requirements, giving contractors and inspectors documented performance data they can rely on
• Wide application range - suited for joists, rafters, and beams across residential and light commercial framing, reducing the number of different connector SKUs a crew needs on site

Why This Product

• Stronger connection, fewer fasteners - the double-shear nailing design lets each nail carry load through two shear planes, meaning you achieve a high-strength connection without driving an excessive number of nails, which saves both time and material cost on larger framing jobs
• Built for corrosive environments - stainless steel construction makes this hanger the correct choice where pressure-treated lumber, coastal moisture, or outdoor exposure would quickly degrade a standard galvanized connector, protecting the structural connection over the long term
• Faster, more accurate installation - integrated speed prongs hold the hanger in place before any nails are driven, so installers can position the connector correctly and work efficiently without a second set of hands holding it steady
• Code-compliant confidence - LUS-series hangers are independently tested and load rated, giving builders, engineers, and inspectors a verified performance baseline and reducing the risk of costly revisions or failed inspections

Specifications

• MPN: LUS36SS
• Member Size: 3x6 and 3x8
• Width: 2-9/16 in.
• Seat Depth: 2 in.
• Height: 5-1/4 in.
• Gauge: 18
• Material: Stainless Steel
• Finish: Stainless Steel
• Country of Origin: United States
• Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D) (sold separately)

Frequently Asked Questions

Why is stainless steel important for this joist hanger?

Stainless steel offers extra corrosion resistance, making the LUS36SS well suited for exterior and treated-wood applications where standard steel connectors may be prone to corrosion over time.

What is the benefit of the double-shear nailing design?

The double-shear nailing design distributes the load through two points on each joist nail, providing greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection.

What fasteners must be used with this stainless-steel hanger?

Stainless-steel connectors require stainless-steel fasteners. Install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D).

What lumber sizes is the LUS36SS compatible with?

The LUS36SS is compatible with nominal joist sizes of 3x6 and 3x8 lumber, making it versatile for common framing applications.

Downloads and Resources

• Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
• Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables

Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
