Product Description

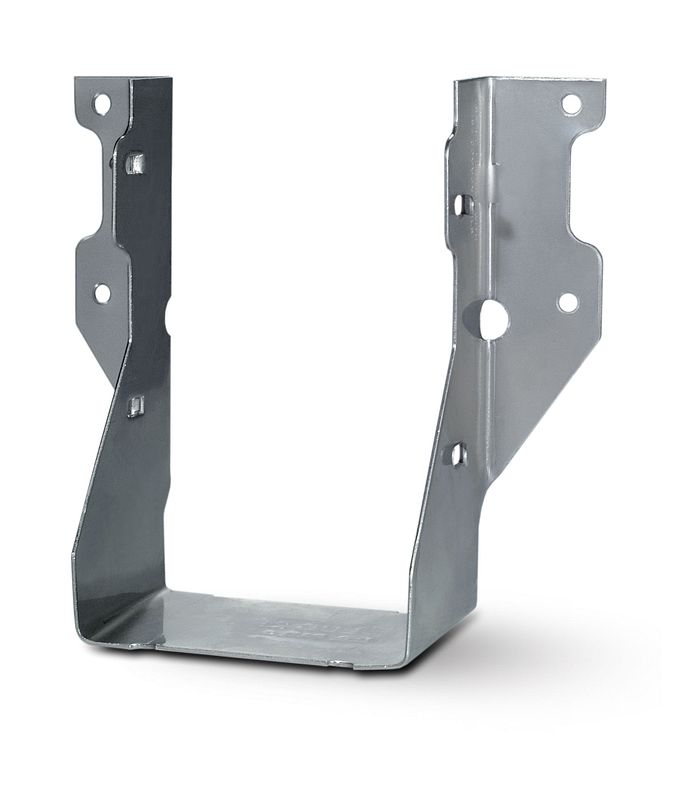

The Simpson LUS26-2SS LUS Stainless-Steel Face-Mount Joist Hanger for Double 2x6 by Simpson Strong-Tie is an easy-to-install, economical face-mount hanger engineered for double 2x6 and double 2x8 lumber. Built from 18-gauge stainless steel, this hanger delivers outstanding corrosion resistance for exterior and treated-wood applications while featuring a double-shear nailing design that distributes load through two points on each joist nail - providing greater strength with fewer nails and faster installation.
Key Features
- Works for a wide range of applications
- Double-shear nailing design provides greater strength with fewer nails
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- Angled joist nailing easier in tight spaces
- LUS-series hangers are tested, load rated and code compliant
- Nominal joist size: double 2x6 and double 2x8
- Seat width: 3-1/8 in.
- Made from 18-gauge steel
- Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- MPN: LUS26-2SS
- Brand: Simpson Strong-Tie
- Series: LUS
- Hanger Type: Face-Mount Joist Hanger
- Member Size: Double 2x6 and 2x8
- Width: 3-1/8 in.
- Height: 4-7/8 in.
- Seat Depth: 2 in.
- Gauge: 18
- Material: Stainless Steel
- Finish: Stainless Steel
- Country of Origin: United States
- Install With: Stainless-steel connectors require stainless-steel fasteners; install with Simpson Strong-Tie Strong-Drive SD Connector SS screws: (4) #9 x 1-1/2 in. screws in the header AND (4) #9 x 2-1/2 in. screws in the joist, OR (8) 0.162 in. x 3-1/2 in. Strong-Drive SCNR Ring-Shank Connector nails (Models: SD9112SS, SD9212SS, SSA16D) (sold separately)
Frequently Asked Questions
- Why does this hanger require stainless-steel fasteners?
- Because the LUS26-2SS is made from stainless steel, stainless-steel fasteners must be used to maintain corrosion resistance and structural integrity - particularly in exterior environments or where treated lumber is present. Using dissimilar metals can cause accelerated corrosion and compromise the connection.
- What is double-shear nailing and why does it matter?
- Double-shear nailing distributes the load through two points on each joist nail rather than one. This design provides greater strength while allowing for fewer nails and faster installation, without sacrificing connection performance.
- What lumber sizes is the LUS26-2SS compatible with?
- The LUS26-2SS is designed for a nominal joist size of double 2x6 and double 2x8 lumber, with a seat width of 3-1/8 in.
- Are the LUS26-2SS hangers code compliant?
- Yes. LUS-series hangers are tested, load rated and code compliant, making them suitable for a wide range of structural applications where building code requirements must be met.
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
