Product Description

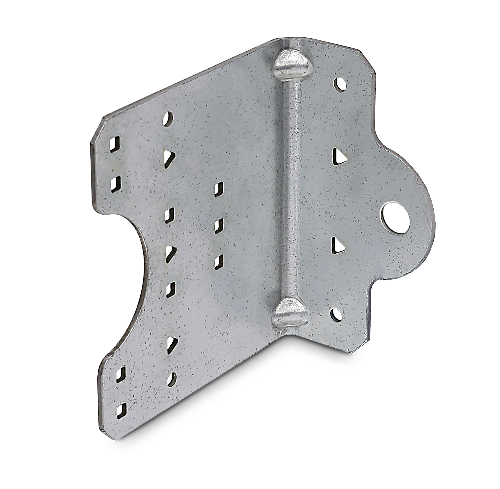

The Simpson SSC4.25-R50 Steel Stud Clip is a 14-gauge galvanized cold-formed steel connector engineered for reliable performance across a wide range of stud-to-stud and stud-to-structure applications. Designed by Simpson Strong-Tie, these versatile utility clips install easily on the open side of studs or joists with flanges up to 3 in. long and return lips up to 3/4 in., making them a dependable fastening solution for cold-formed steel framing projects. A wide pattern of strategic fastener locations allows the SSC to accommodate a variety of traditional and custom designs, giving contractors and builders the flexibility they need on demanding job sites.
Key Features
- Prepunched holes - eliminate the need for predrilling, reducing labor time and installation cost on the job site.
- Intuitive fastener hole positions - ensure accurate clip installation in accordance with design, supporting a wide range of design and application requirements while providing installation flexibility.
- Angle lengths accommodate hard-side or soft-side attachment - for studs and joists with return lips up to 3/4 in., giving installers versatile connection options in a single clip.
- 4 in. leg length enables soft-side connections - for studs and joists with flanges up to 3 in., covering common cold-formed steel framing member sizes without additional hardware.
- Suitable for u-channel bridging - extends the usefulness of a single clip type across multiple framing applications, reducing the number of connector SKUs needed on site.
- Zinc Galvanized G90 coating - provides extra corrosion resistance, making these clips appropriate for construction environments where moisture exposure is a concern.
- Made from 14-gauge (68 mil) steel - delivers the structural integrity and load capacity expected from heavy-duty cold-formed steel connectors.
Why This Product
- One clip, multiple connection types - the SSC design handles both hard-side and soft-side stud and joist attachments, as well as u-channel bridging, reducing the need to source separate connectors for different framing conditions.
- Faster installation without compromising accuracy - prepunched holes and intuitive fastener positioning mean crews can work quickly while still placing fasteners exactly where the design requires, lowering overall labor cost.
- Built-in corrosion protection - the G90 galvanized finish adds a durable zinc barrier that holds up in demanding site conditions, helping the connection maintain its integrity over the life of the structure.
- Engineered design flexibility - the wide pattern of strategic fastener locations allows the SSC to support a variety of traditional and custom cold-formed steel framing designs, making it a practical choice for both standard builds and specialty applications.
Specifications
- Attribute: Value
- Model Number: SSC4.25-R50
- Gauge: 14-gauge (68 mil)
- Leg Length: 4-1/4 in.
- Dimensions: 2-1/4 x 4 in.
- Coating / Finish: Zinc Galvanized, G90
- Material: Steel
- Package Quantity: 50
- Country of Origin: United States
- Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
Approved Applications
- Stud-to-stud connections in cold-formed steel framing
- Stud-to-structure connections in cold-
Frequently Asked Questions
- What types of applications are these clips designed for?
- The Simpson Strong-Tie SSC4.25-R50 clips are versatile utility clips designed for a variety of stud-to-stud and stud-to-structure applications in cold-formed steel construction. They are also suitable for u-channel bridging and can accommodate both traditional and custom designs.
- What stud and joist dimensions are compatible with these clips?
- These clips are designed for easy installation on the open side of studs or joists with flanges up to 3 in. long and return lips up to 3/4 in. The 4 in. leg length enables soft-side connections for studs and joists with flanges up to 3 in., and the angle lengths accommodate either hard-side or soft-side attachment.
- What material and coating are used on these clips?
- The clips are made from 14-gauge (68 mil) steel and feature a Zinc Galvanized G90 coating, which provides extra corrosion resistance for demanding construction environments.
- Do these clips require predrilling during installation?
- No predrilling is required. The clips come with prepunched holes, which reduce installation cost and time. The intuitive fastener hole positions are strategically placed to ensure accurate clip installation and provide flexibility across a wide range of design and application requirements. Fastener type may vary by application; refer to the Simpson Strong-Tie catalog or strongtie.com for guidance.
