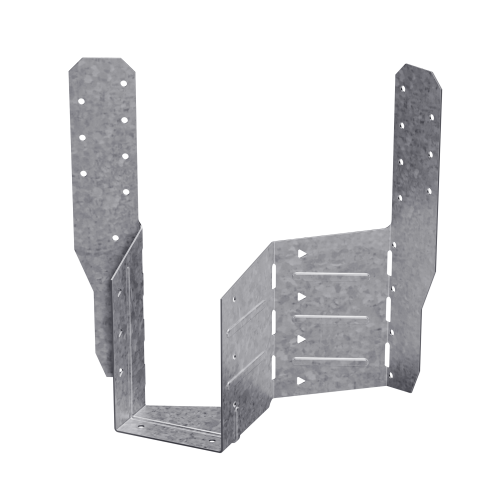

The Simpson THASL Galvanized Adjustable Truss Hanger for Double 2x9, Skewed Left by Simpson is a heavy-duty, U-shaped connector built to support trusses and beams where angled connections are required. Combining height adjustability with wide-range field-skew adjustability, this 16-gauge steel hanger ships at 22-1/2 deg. left and can be adjusted on site across a broad skew range, giving installers the flexibility to handle non-standard framing conditions without delays or custom fabrication. Its G90 zinc galvanized finish provides corrosion resistance suited for demanding construction environments.

Key Features

• Field-adjustable skew from 22-1/2 deg. to 75 deg. - adapts to a wide range of angled framing conditions directly on the job site, eliminating the need for pre-configured or special-ordered hangers
• Replaces the former THASL218-2 - allows a direct, current-model substitution so buyers upgrading or replacing hardware can do so with confidence
• One acute side bend line - simplifies layout and installation by giving the installer a clear, single reference point for bending, reducing the chance of errors in the field
• Joist fasteners required from one side only for skews greater than 22-1/2 deg. - reduces labor time and improves accessibility in tight or obstructed framing scenarios
• Rated for nails or Simpson Strong-Drive SD Connector screws - gives installers the choice of fastener type based on job-site tools and preferences without sacrificing rated performance
• Made from 16-gauge steel with G90 zinc galvanized coating - delivers structural strength and corrosion resistance appropriate for truss and beam connection applications
• Minimum carried member is a double 2x truss - clearly defined load member sizing helps contractors confirm compatibility before installation, avoiding costly fitment issues

Why This Product

• Maximum on-site flexibility without special orders - the wide field-adjustable skew range means crews can handle a variety of angled truss and beam connections using a single hanger model, keeping projects moving without waiting on custom parts
• Simplified installation in skewed framing - the single acute side bend line and the one-sided joist fastening requirement for skews greater than 22-1/2 deg. reduce complexity and labor, particularly in confined framing spaces
• Fastener versatility built in - approval for both nails and Simpson Strong-Drive SD Connector screws means this hanger fits the workflow of different crews and tool setups without requiring a specific fastener system
• A trusted, current-model replacement - directly superseding the former THASL218-2, this hanger gives contractors a fully current, code-current option when sourcing adjustable skewed truss hardware for double 2x framing applications

Specifications

• Model Number (MPN): THASL29-2
• Brand: Simpson Strong-Tie
• Series: THASL
• Skew Direction: Left
• Width: 3-1/8 in.
• Height: 9-7/8 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Minimum Carried Member: Double 2x truss
• Skew Range: 22-1/2 deg. to 75 deg.
• Install With: (12) 0.148 in. x 3 in. nails in the header and (5-8) 0.148 in. x 3 in. nails in the joist OR (12) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the header and (5-8) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the joist
• Country of Origin: United States

Frequently Asked Questions

What skew range does the THASL29-2 support?

The THASL29-2 is shipped at 22-1/2 deg. left and can be field-skewed from 22-1/2 deg. to 75 deg., providing a wide range of adjustability directly on the job site without requiring pre-configured special orders.

What fasteners are approved for installing the THASL29-2?

The THASL29-2 is rated for installation with either (12) 0.148 in. x 3 in. nails in the header and (5-8) 0.148 in. x 3 in. nails in the joist, or (12) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the header and (5-8) #9 x 2-1/2 in. Strong-Drive SD Connector screws in the joist. All specified fasteners must be used.

Do joist fasteners need to be installed from both sides?

No. For skews greater than 22-1/2 deg., joist fasteners are only required from one side, simplifying the installation process and reducing labor time.

What model does the THASL29-2 replace?

The THASL29-2 replaces the former THASL218-2 model. It is made from 16-gauge steel with a Zinc Galvanized, G90 coating, and is designed to support a minimum carried member of a double 2x truss.
