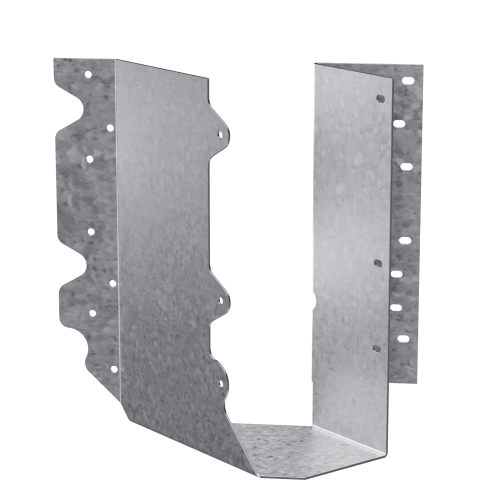

The Simpson SUR214-2 Joist Hanger Skewed Right for Double 2x14 from Simpson is a 45 deg. right-skewed hanger engineered to support double 2x14 joists in angled wood-framed construction. Its U-shaped profile encapsulates the top flange of the joist, creating a secure, code-compliant connection without the hassle of web stiffeners in standard installations. Purpose-built for both solid sawn and engineered wood products, this hanger delivers the structural reliability needed when conventional straight hangers simply will not work.

Key Features

• 45 deg. right-skewed design - allows framers to make clean, structurally sound angled joist connections where a straight hanger cannot be used, keeping the framing layout accurate and efficient.
• U-shaped profile encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installations, reducing material costs and simplifying the installation process.
• Sized for a double 2x14 joist - provides a precise, snug fit for the intended lumber dimension, minimizing movement and ensuring a dependable structural connection.
• 16-gauge steel construction - delivers the structural strength and rigidity required for heavy framing applications in residential and commercial wood construction.
• Zinc Galvanized, G90 coating - provides corrosion resistance to help the hanger hold up in demanding job-site conditions over the long term.
• Compatible with solid sawn and engineered wood products - gives builders flexibility to use the hanger across a wide range of lumber types without needing a separate connector for each application.

Why This Product

• Solves a common framing challenge - the 45 deg. right-skew geometry makes this hanger the go-to solution for angled joist connections that straight hangers cannot accommodate, helping framing crews stay on schedule without costly workarounds.
• Fewer parts, faster installation - because the U-shaped design eliminates web stiffeners in standard installations, contractors can complete connections with fewer components and less labor on site.
• Trusted brand, domestic production - manufactured by Simpson and made in the United States, this hanger meets the quality and consistency expectations that structural framing demands.
• Broad lumber compatibility - support for both solid sawn and engineered wood products means this single hanger works across a variety of double 2x14 framing scenarios, reducing the need to source multiple connector types for one project.

Specifications

• Model No.: SUR214-2
• Skew: Right (45 degrees)
• Gauge: 16
• W (in.): 3-1/8
• H (in.): 12-11/16
• B (in.): 2-7/16
• Coating/Material: Zinc Galvanized, G90
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What direction is the SUR214-2 skewed, and how does it differ from the SUL version?

The SUR214-2 is skewed 45 degrees to the right. The SUR and SUL hangers are identical in design except that the SUR is skewed to the right and the SUL is skewed to the left.

Are web stiffeners required when installing the SUR214-2?

No. Because the hanger's U-shaped design encapsulates the top flange of the joist, no web stiffeners are required for a standard installation.

What fasteners are required to install the SUR214-2?

Installation requires (18) 0.162 x 3-1/2 fasteners for the face and (8) 0.162 x 2-1/2 fasteners for the joist.

What types of lumber is the SUR214-2 compatible with?

The SUR214-2 is designed to support both solid sawn and engineered wood products used in wood construction.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
