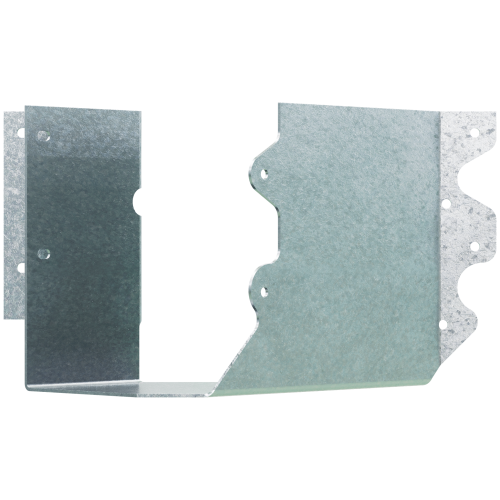

The Simpson SUL46 Skewed Left Joist Hanger from Simpson Strong-Tie is a 16-gauge steel hanger engineered to create a 45 deg. angled connection between a joist and header in wood framing applications. Designed specifically for left-hand skewed layouts, it supports 4x6 or 4x8 members from below, delivering a strong, load-bearing connection where standard straight hangers simply cannot be used. Its G90 zinc galvanized finish adds durability for demanding job site conditions, while thoughtful design details like angled nail slots make for a straightforward, code-conscious installation.

Key Features

• SUL skewed-left orientation - engineered for framing layouts that require a left-hand angled connection between a joist and header, eliminating the need for field fabrication
• 45 deg. nominal skew with 40 deg. to 50 deg. accommodation range - provides practical flexibility for real-world framing conditions where the angle may not be perfectly precise
• Square cut or bevel cut joist end accepted - gives installers the freedom to work with the cut they already have, saving time and reducing material waste
• Angled nail slots - guide fasteners into the correct position automatically, helping ensure a proper, secure connection with every install
• Fits 4x6 or 4x8 nominal joist sizes - covers two common lumber dimensions in a single hanger, adding versatility to your hardware selection
• 16-gauge steel construction - delivers the strength and rigidity needed for structural framing connections without adding unnecessary bulk
• G90 zinc galvanized finish - provides a higher level of corrosion resistance, making this hanger suitable for use in exposed or moisture-prone framing environments

Why This Product

• Purpose-built for angled framing - when a layout calls for a 45 deg. skewed connection on the left side, this hanger delivers a factory-engineered solution that removes guesswork and supports consistent results across the job
• Forgiving skew range keeps projects moving - the 40 deg. to 50 deg. accommodation range means minor angle variations in the field do not require starting over, reducing costly adjustments and delays
• Installation details that work in your favor - angled nail slots and compatibility with both square and bevel cut joist ends translate to fewer mistakes and faster assembly for framing crews
• Corrosion-resistant finish for long-term performance - the G90 zinc galvanized coating helps protect the hanger against moisture and environmental exposure, supporting the long-term integrity of the framed structure

Specifications

• Model Number: SUL46
• Brand: Simpson Strong-Tie
• Skew Direction: Left
• Gauge: 16
• Member Size: 4x6 or 4x8
• Width (W): 3-9/16 in.
• Obtuse Flange Length: 1 in.
• Acute Flange Length: 2-3/8 in.
• Height (H): 4-3/4 in.
• Seat Depth: 2-5/8 in.
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: 16d common nails
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUL" stand for and how does it differ from the SUR?

SUL stands for skewed left. The SUL and SUR hangers are identical in design except that the SUL is skewed 45 deg. to the left while the SUR is skewed 45 deg. to the right. Choose the SUL46 when your framing layout requires a left-hand skewed connection between a joist and header.

What range of skew angles can the SUL46 accommodate?

The SUL46 will normally accommodate a 40 deg. to 50 deg. skew, making it well suited for connections that require approximately a 45 deg. angle between the joist and the header.

Does the joist need to be cut at a specific angle to fit this hanger?

No. The joist end may be square cut or bevel cut, giving installers flexibility depending on their framing method and project requirements.

What fasteners are required to install the SUL46?

Install with 16d common nails. The hanger features angled nail slots that direct nails for proper installation, helping to ensure a secure and code-compliant connection.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
