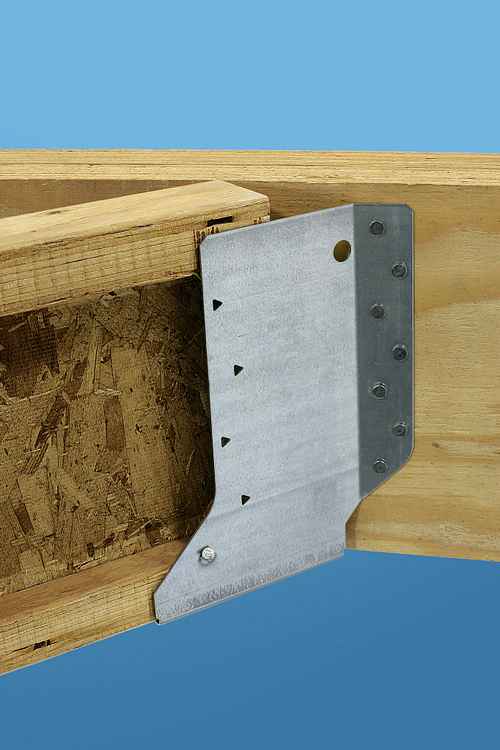

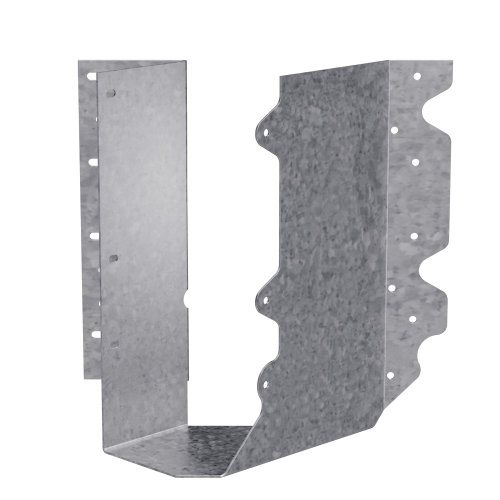

The Simpson SUL210-2 Joist Hanger Skewed Left for Double 2x10 is a purpose-built structural connector from Simpson designed to create a reliable 45 deg. skewed-left connection between a double joist and its header in wood-framed construction. Fabricated from 16-gauge steel with a G90 zinc galvanized coating, this hanger provides solid load-bearing support underneath the joist while standing up to corrosive job-site conditions. Whether you are framing a stairwell, bay window, or any application requiring an angled joist-to-header connection, this skewed hanger simplifies the process without sacrificing structural integrity.

Key Features

• SUL = skewed left orientation - creates a precise 45 deg. angled connection between a joist and header, making this hanger the correct choice wherever a left-skewed framing connection is required
• Accommodates a 40 deg. to 50 deg. skew range - gives framers real-world flexibility to handle slight layout variations without needing a custom or special-order bracket
• Square cut or bevel cut joist end accepted - eliminates the need for a precisely angled cut on the joist, saving time and reducing waste during framing
• Angled nail slots direct nails for proper installation - guide fasteners into the correct position automatically, reducing installer error and helping ensure a code-compliant connection
• Fits nominal double 2x10 or 2x12 members - accommodates two common lumber sizes in a single hanger, adding versatility across different framing layouts
• 16-gauge steel construction - delivers the structural strength needed for demanding load-bearing applications in residential and light commercial framing
• G90 zinc galvanized finish - provides an extra layer of corrosion resistance, making this hanger suitable for use in humid or moisture-exposed framing environments

Why This Product

• Engineered specifically for skewed framing - unlike field-bent or makeshift solutions, this hanger is factory-formed to deliver a consistent 45 deg. left-skewed connection, so structural performance is not left to chance on the job site
• Flexibility built in at both ends - the 40 deg. to 50 deg. skew tolerance combined with acceptance of either a square cut or bevel cut joist end means less rework and faster installation even when field conditions are not perfectly precise
• Corrosion-resistant coating extends service life - the G90 zinc galvanized finish adds meaningful protection in framing environments where moisture exposure could degrade an uncoated connector over time
• Angled nail slots take the guesswork out of fastening - by physically directing nails during installation, this hanger helps framers drive fasteners correctly the first time, supporting a structurally sound and consistent result across the entire project

Specifications

• MPN: SUL210-2
• Brand: Simpson Strong-Tie
• Skew Direction: Left (SUL)
• Member Size: Double 2x10 or 2x12
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Gauge: 16
• Width (W): 3-1/8 in.
• Height (H): 8-11/16 in.
• Depth (B): 2-5/8 in.
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: 16d common nails and 16d x 2-1/2 in. nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUL" mean in the product name?

SUL stands for skewed left. This hanger is designed to create a 45 deg. connection angled to the left between a joist and its header, as opposed to the SUR version which is skewed to the right.

What range of skew angles does the SUL210-2 accommodate?

These hangers will normally accommodate a 40 deg. to 50 deg. skew, making them suitable for framing applications that require a near-45 deg. angled joist-to-header connection.

Does the joist need to be cut at a specific angle for installation?

No. The joist end may be square cut or bevel cut, offering flexibility during installation without requiring a precise bevel on the joist end.

What fasteners are required to install the SUL210-2?

Install with 16d common nails and 16d x 2-1/2 in. nails. The hanger features angled nail slots that direct nails for proper installation.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
