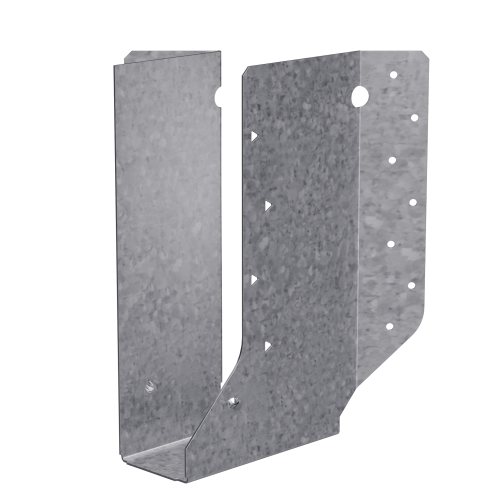

The Simpson SUL2.1/9 SUL Galvanized Joist Hanger for 2-1/16 in. x 9-1/2 in. Engineered Wood, Skewed Left by Simpson is a 45 deg.-skewed connector engineered to support solid sawn and engineered wood products in wood-frame construction. This U-shaped hanger encapsulates the top flange of the joist, so no web stiffeners are required for standard installation - simplifying the framing process without sacrificing structural integrity. Skewed left at 45 deg., the SUL2.1/9 is the purpose-built solution for angled framing connections where a standard straight hanger simply will not do.

Key Features

• Skewed left at 45 deg. - purpose-designed for left-hand angled framing connections, eliminating the guesswork of field-bending or improvising a straight hanger on skewed layouts
• Accommodates 40 deg. to 50 deg. skew range - provides practical flexibility around the nominal 45 deg. angle, so minor framing variances are covered without requiring a different hanger
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist in a tight corner, making fastening faster and more accurate where access is limited
• Positive-angle nailing for engineered wood sizes - reduces the risk of wood splitting during installation and speeds up the nailing process, keeping projects on schedule
• U-shaped design encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installation, reducing material and labor costs
• 16-gauge steel construction - delivers the structural rigidity needed to handle the loads transferred through a skewed joist connection in demanding framing applications
• G90 zinc galvanized finish - provides corrosion resistance suited to treated lumber environments and exposed framing conditions, extending the service life of the connection
• 2-1/8 in. seat width matched to a 2-1/16 in. x 9-1/2 in. member - ensures a precise, snug fit for the intended joist size, which translates to consistent load transfer and a cleaner installation

Why This Product

• No web stiffeners required - the U-shaped hanger encapsulates the top flange of the joist, so standard installations go in faster with fewer components to source and manage on the job site
• Built for engineered wood at a specific skew - the SUL2.1/9 is sized and skewed precisely for 2-1/16 in. x 9-1/2 in. engineered lumber, meaning the connection geometry is already optimized rather than approximated with a general-purpose hanger
• Dual fastener options give installers flexibility - the hanger accepts either conventional nails or Strong-Drive SD Connector screws, so crews can use the fastening method that best suits their tools and workflow without compromising the connection
• G90 galvanized coating supports long-term performance - the corrosion-resistant finish makes the SUL2.1/9 suitable for use with treated wood products and in moisture-exposed framing conditions where an uncoated connector would degrade over time

Specifications

• MPN: SUL2.1/9
• Brand: Simpson Strong-Tie
• Skew Direction: Left
• Member Size: 2-1/16 in. x 9-1/2 in.
• Seat Depth: 3-3/16 in.
• Acute Flange Length: 2-1/8 in.
• Height (H): 9-1/16 in.
• Obtuse Flange Length: 1-9/16 in.
• Seat Width (W): 2-1/8 in.
• Steel Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Install With: Install with (14) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (16) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUL" stand for and how does it differ from the SUR?

SUL stands for Skewed Left. The SUL and SUR hangers are identical in design except that the SUL is skewed 45 deg. to the left while the SUR is skewed 45 deg. to the right. Choosing the correct version depends on the direction of the skew required at your framing connection.

Can this hanger be field-modified to fit different skew angles?

No. These hangers cannot be modified in the field. However, the SUL2.1/9 will accommodate a joist skewed anywhere from 40 deg. to 50 deg., providing a small range of flexibility around the nominal 45 deg. skew angle.

What fasteners are required to install the SUL2.1/9?

Install with (14) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (16) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Why is a G90 galvanized coating important for this joist hanger?

The G90 zinc galvanized coating provides enhanced corrosion resistance, making the hanger suitable for environments where moisture exposure is a concern. This helps protect the structural integrity of the connection over time.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
