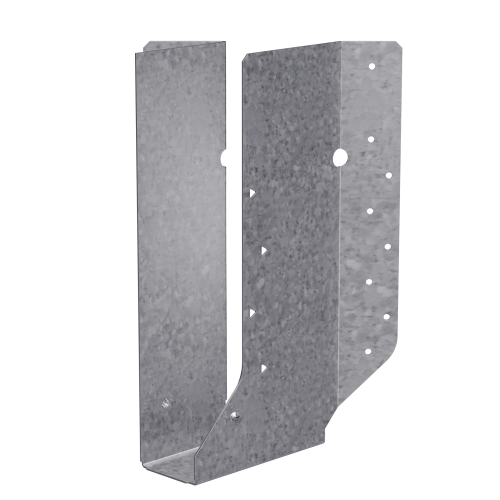

The Simpson SUL2.06/11 SUL Galvanized Joist Hanger is a 45 deg.-skewed structural connector from Simpson Strong-Tie built to support 2 in. x 11-7/8 in. solid sawn and engineered wood members in left-hand skewed joist applications. Its U-shaped design encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and delivering a reliable, load-bearing connection where conventional straight hangers simply cannot be used.

Key Features

• SUL = skewed left, 45 deg. fixed angle - purpose-built for left-hand skewed framing conditions, accommodating any joist angle from 40 deg. to 50 deg. left so it works across a realistic range of field skew variations without requiring a custom piece
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist, making fastener installation straightforward even in the tighter acute-angle pocket where access is most restricted
• Positive-angle nailing for engineered wood sizes - directs fasteners at the optimal angle to prevent splitting in engineered lumber and speeds up installation, reducing time on the job without sacrificing connection integrity
• U-shaped hanger encapsulates the top flange - no web stiffeners are required for standard installation, simplifying the build-up and keeping material costs and labor time down
• Made from 16-gauge steel - provides the structural rigidity expected of a load-bearing connector while keeping the hanger lightweight enough for easy handling and positioning
• G90 zinc galvanized finish - delivers corrosion resistance suited to treated lumber environments, protecting the connector's structural performance over the life of the structure
• Cannot be field-modified - the fixed geometry ensures the connection geometry remains exactly as engineered, so there is no risk of an installer inadvertently altering the skew angle and compromising the rated load path

Why This Product

• A dedicated solution for left-hand skewed framing - rather than forcing a straight hanger into an angled application or attempting field fabrication, the SUL2.06/11 is engineered from the start for 45 deg. left-skew conditions, giving contractors a code-ready connector that fits the framing as designed
• Engineered wood compatible with no extra hardware - the positive-angle nailing and top-flange-encapsulating design are specifically suited to engineered wood products, meaning no supplemental web stiffeners or additional blocking is required for standard installation
• Fastener flexibility speeds installation - the hanger can be installed with either nails or Simpson Strong-Drive SD Connector screws, letting crews use the fastener type that best matches their tools and workflow without compromising the connection
• Built-in skew tolerance reduces field headaches - by accommodating joists skewed anywhere from 40 deg. to 50 deg., the SUL2.06/11 handles the minor angle variations that occur in real framing conditions, reducing the chance of a connector mismatch holding up the job

Specifications

• MPN: SUL2.06/11
• Brand: Simpson Strong-Tie
• Member Size: 2 in. x 11-7/8 in.
• Acute Flange Length: 2-1/8 in.
• Obtuse Flange Length: 1-5/8 in.
• Seat Width (W): 2-1/16 in.
• Hanger Height (H): 11-1/4 in.
• Base Width (B): 3-3/16 in.
• Steel Gauge: 16
• Skew Direction: Left (SUL)
• Skew Angle: 45 deg. (accommodates 40 deg. to 50 deg.)
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Solid sawn wood products used in wood construction
• Engineered wood products used in wood construction
• Skewed joist connections requiring a 40 deg. to 50 deg. left-hand skew angle

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What fasteners are required to install the SUL2.06/11 joist hanger?

Install with (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Can the SUL2.06/11 hanger be field-modified to adjust the skew angle?

No. These hangers cannot be modified. However, they are designed to accommodate a joist skewed anywhere from 40 deg. to 50 deg. to the left, providing a degree of flexibility within that range.

What is the difference between the SUR and SUL hanger models?

The SUR and SUL hangers are identical in construction except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left. The SUL2.06/11 is specifically the left-skewed version for 2 in. x 11-7/8 in. members.

Why does this hanger feature obround nail holes on the acute side?

The obround nail holes on the acute side are specifically designed to allow nails to be easily installed parallel to the joist, simplifying installation and ensuring a secure connection even at the tight angle of a skewed application.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
