Product Features
Product Description

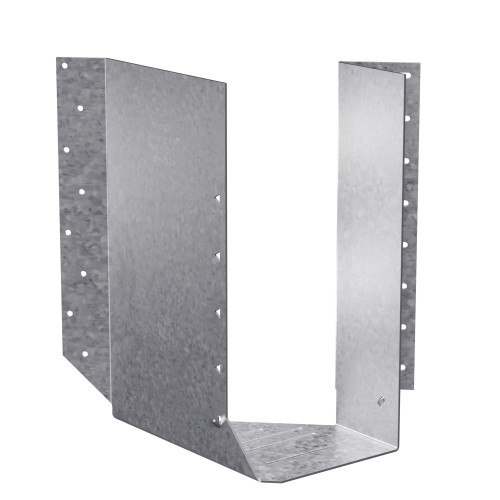

The Simpson Strong-Tie HSUR4.75/16 is a 14-gauge galvanized heavy skewed joist hanger engineered to support large joist members or double I-joists in wood-frame construction. Designed with a 45-degree right skew, this heavy U-shaped hanger fully encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installations. With a G90 zinc galvanized coating and domestic manufacturing, the HSUR4.75/16 delivers reliable structural performance in angled framing applications where a standard square hanger simply won't work.
Key Features
- 45-degree right-skewed design for angled joist connections in wood construction
- Heavy U-shaped hanger that fully encapsulates the top flange of the joist - no web stiffeners required for standard installation
- 14-gauge steel construction for heavy-duty load capacity
- G90 zinc galvanized coating for corrosion resistance
- Supports large joist members or double I-joists
- Made in the United States
Specifications
- Model Number: HSUR4.75/16
- Skew Direction: Right (45 deg.)
- Gauge: 14
- Width - W: 4-3/4 in.
- Height - H: 15-3/4 in.
- Base Width - B: 2-3/4 in.
- Coating / Material: Zinc Galvanized, G90
- Width (W): 4-3/4 in.
- Obtuse Flange Length: 1-7/16 in.
- Acute Flange Length: 2-3/8 in.
- Height (H): 15-3/4 in.
- Seat Depth: 2-3/4 in.
- Country of Origin: United States
Approved Applications

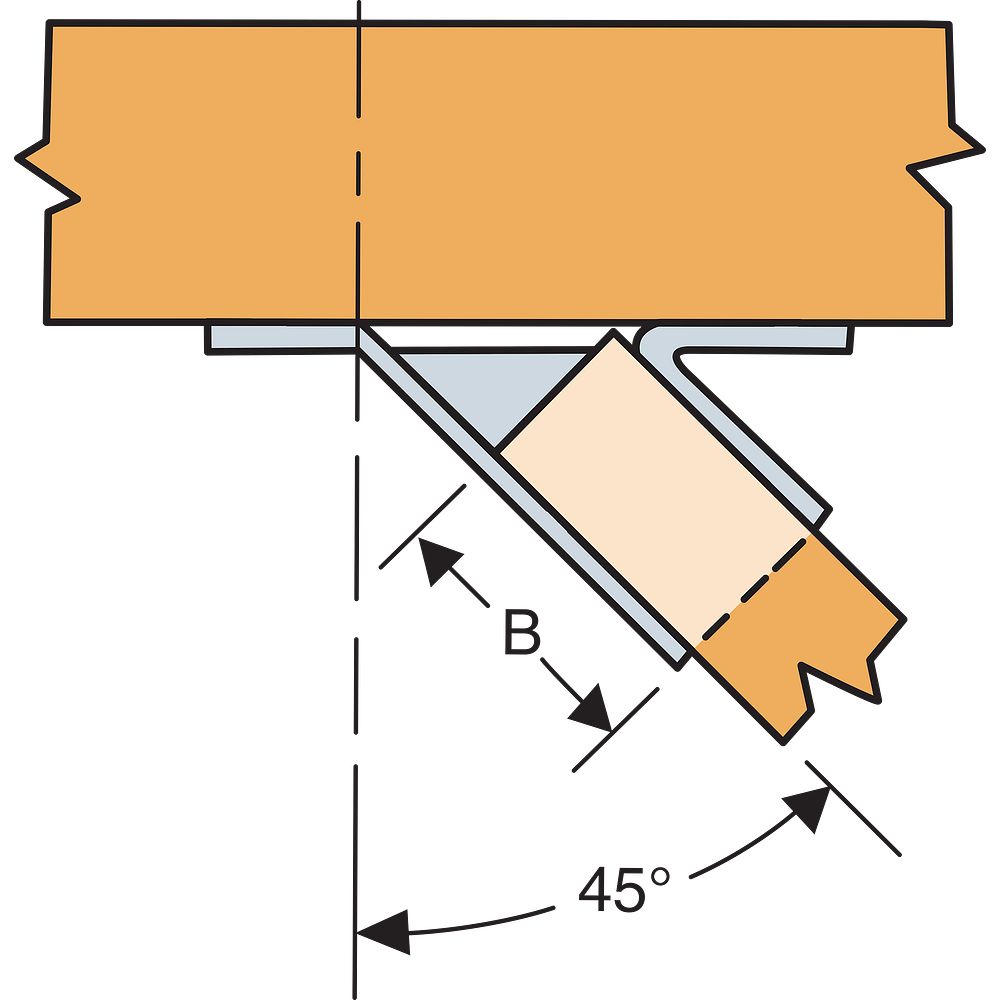

- Supporting large joist members skewed 45 degrees to the right relative to the bearing member
- Supporting double I-joists in wood-frame construction at 45-degree angles
- Standard installations where no web stiffeners are desired or required
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See the HSURC or HSULC for concealed-flange configurations.
For configurable options and special orders, please Contact us.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
- What is the skew angle and direction of this joist hanger?
- The HSUR4.75/16 is designed with a 45-degree right skew, meaning it connects a joist that runs at a 45-degree angle to the right relative to the bearing member. If your application requires a left-skewed hanger, this model would not be the correct choice.
- Do I need web stiffeners when installing this hanger?
- No. The HSUR4.75/16 features a heavy U-shaped design that fully encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installations.
- What types of joists is this hanger designed to support?
- This hanger is engineered to support large joist members as well as double I-joists in wood-frame construction at 45-degree angles. It is intended for applications where a standard square hanger cannot accommodate the angled framing layout.
- Is there a configuration option available if my installation requires an acute flange turned in?
- Yes. The HSUR4.75/16 is available with the A2 (acute) flange turned in, which provides an additional configuration option for installations where the standard flange orientation does not suit the framing geometry.
