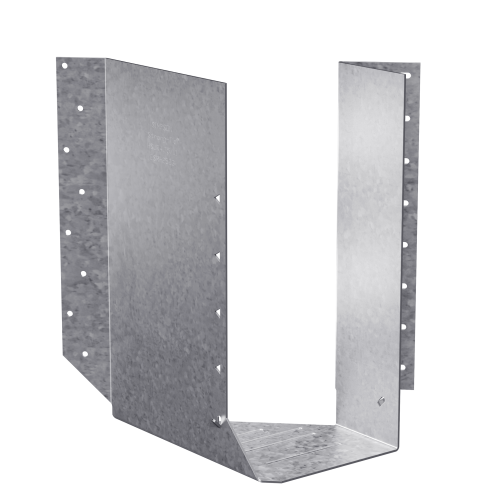

The Simpson Double 2x10 Joist Hanger Skewed Right ZMAX HSUR210-2Z is a heavy-duty, U-shaped joist hanger from Simpson engineered for 45 deg. right-hand skewed framing connections in wood construction. Designed to carry large joist members and double I-joists at precise angles, this hanger is built to a 14-gauge steel standard and finished with a ZMAX coating for enhanced corrosion resistance. Its encapsulating top-flange design eliminates the need for web stiffeners under standard installation conditions, simplifying the framing process without compromising structural integrity.

Key Features

• 45 deg. Right-Hand Skew - Purpose-built for angled framing applications that require a right-skewed connection, allowing accurate joist placement where standard hangers cannot be used.
• Heavy U-Shaped Top-Flange Design - Fully encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and reducing both labor and material costs on the job site.
• 14-Gauge Steel Construction - Provides the structural strength needed to support large solid-sawn joist members and double I-joists in demanding wood framing applications.
• ZMAX Coating - Delivers a high level of corrosion resistance, making this hanger a suitable choice for treated-lumber applications and environments where moisture exposure is a concern.
• Compatible with Double I-Joists and Large Members - Approved for use with engineered lumber and double I-joists, giving builders flexibility across a wide range of structural framing scenarios.
• Optional Acute Flange Configuration - The A2 acute flange can be turned in to accommodate end-of-wall installation for solid sawn sizes, providing added versatility on complex framing layouts.

Why This Product

• Eliminates Extra Hardware - The encapsulating top-flange design removes the requirement for web stiffeners under standard installation conditions, reducing the number of components needed and speeding up framing work.
• Built for Precision Angled Connections - The 45 deg. right-hand skew addresses a specific and common framing challenge, offering a purpose-engineered solution for joist-to-beam and joist-to-header connections that non-skewed hangers simply cannot handle.
• Corrosion-Resistant Finish for Long-Term Performance - The ZMAX coating provides durable protection against corrosion, making this hanger a reliable long-term choice in moisture-prone or treated-lumber environments.
• American-Made Quality from a Trusted Brand - Produced by Simpson to exacting standards in the United States, this hanger is built with the consistency and quality that structural framing applications demand.

Specifications

• Model Number: HSUR210-2Z
• Skew Direction: Right (45 degrees)
• Gauge: 14
• W (Width): 3 1/8 in.
• H (Height): 8 11/16 in.
• B (Bearing): 2 7/16 in.
• Coating / Material: ZMAX
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-1/4 in.
• Country of Origin: United States

Approved Applications

• Structural support of large joist members in wood construction framing
• Support of double I-joists in wood construction
• 45-degree right-hand skewed joist-to-beam or joist-to-header connections
• Applications where web stiffeners would otherwise be required - the encapsulating top-flange design eliminates this need under standard installation conditions

What's Included

• 1 x Simpson Strong-Tie HSUR210-2Z Heavy Skewed Right U-Shaped Joist Hanger

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See the HSURC or HSULC series for concealed-flange configurations.

For configurable options and special orders, Contact us.

Frequently Asked Questions

What is the difference between the HSUR and HSUL hangers?

The HSUR and HSUL hangers are identical in construction except for their skew direction. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left.

Are web stiffeners required when using the HSUR210-2Z?

No. The heavy U-shaped design encapsulates the top flange of the joist, so no web stiffeners are required for standard installation.

What joist members does the HSUR210-2Z support?

The HSUR210-2Z is designed to support large joist members or double I-joists in wood construction, specifically sized for double 2x10 configurations.

What coating does the HSUR210-2Z feature, and why does it matter?

The HSUR210-2Z features a ZMAX coating, which provides enhanced corrosion resistance compared to standard G90 galvanizing. This makes it well-suited for applications with increased exposure to moisture or corrosive conditions, such as pressure-treated lumber connections.
