Product Description

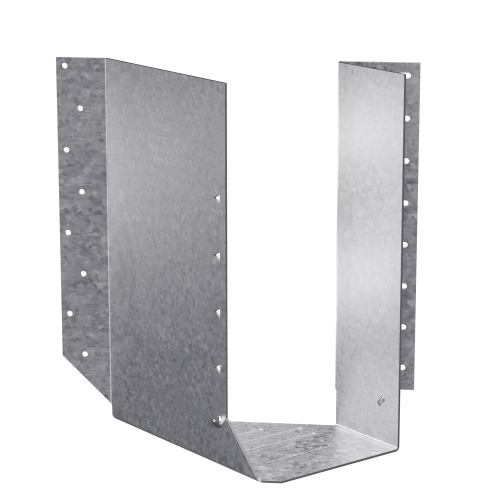

The Simpson 4 x 9 Joist Hanger Skewed Left is a heavy U-shaped hanger engineered by Simpson for angled framing connections in wood construction. Its 45 deg. left-skewed profile is purpose-built to carry large joist members or double I-joists where a standard straight hanger simply will not work, giving structural framing crews a reliable solution for complex angled layouts without compromising load performance.
Key Features
- 45 deg. skewed left (HSUL) design - connects joist members at an angle to the supporting header, making it the correct choice when your framing layout calls for a left-hand angled connection rather than a square one
- Heavy U-shaped profile that fully encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installation, reducing hardware count and simplifying the framing process on the job site
- Supports large joist members or double I-joists - handles the member sizes common in heavier wood construction framing where undersized hangers would be inadequate
- 14-gauge steel construction - delivers the heavy-duty wall thickness needed to meet demanding load requirements in structural applications
- Zinc Galvanized G90 coating - provides reliable corrosion resistance suited to wood construction environments, helping the connector hold up over the life of the structure
- Made in the United States - domestic production supports consistent quality standards and reliable availability for contractors and builders
Why This Product
- Built specifically for angled framing challenges - the 45 deg. left-skew geometry solves a real layout problem that a conventional square hanger cannot address, keeping your framing accurate and code-compliant where beam runs meet headers at an angle
- Faster installation with fewer parts - because the U-shaped profile encapsulates the joist top flange, web stiffeners are not required for standard installation, cutting down on extra hardware and the labor time needed to fit it
- Versatile member compatibility - engineered to support large solid sawn joist members or double I-joists, so one hanger model covers the heavy-timber and engineered-lumber applications most likely to appear in demanding residential or commercial wood framing
- Long-term corrosion resistance from a trusted brand - the G90 galvanized coating and Simpson's reputation for structural connector engineering give builders confidence that the connection will perform reliably throughout the structure's service life
Specifications
- Model No.: HSUL4.12/9
- Skew: Left
- Gauge: 14
- W (in.): 4 1/8
- H (in.): 9
- B (in.): 3
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What is the difference between the HSUL and HSUR hanger?
- The HSUL and HSUR hangers are identical in design and construction except for their skew direction. The HSUL is skewed 45 degrees to the left, while the HSUR is skewed 45 degrees to the right. Choosing the correct model depends on the direction of the angled framing connection in your project.
- Are web stiffeners required when using the HSUL4.12/9?
- No. Because the HSUL4.12/9 features a heavy U-shaped profile that encapsulates the top flange of the joist, web stiffeners are not required for standard installation.
- What type of members can the HSUL4.12/9 support?
- The HSUL4.12/9 is designed to support large joist members or double I-joists in wood construction applications.
- What corrosion protection does the HSUL4.12/9 offer?
- The HSUL4.12/9 features a Zinc Galvanized G90 coating, which provides a reliable level of corrosion resistance suitable for wood construction environments.
Related Products
- - Heavy Skewed U-Shaped Hanger with Concealed Flanges for end-of-wall installation
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
