Product Features
Product Description

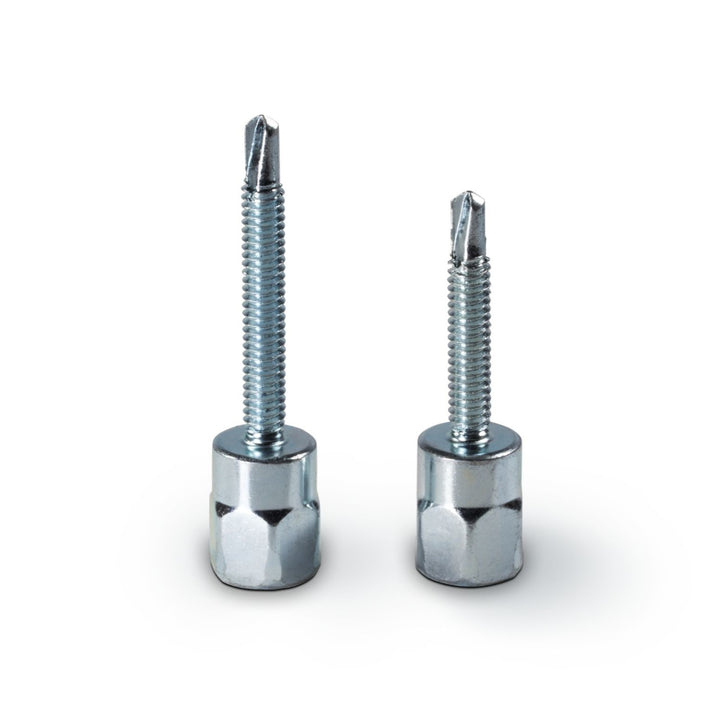

The Simpson RSH25112-5 Horizontal Steel Rod Hanger by Simpson Strong-Tie is a one-piece threaded anchor engineered for suspending 1/4 in. threaded rod in horizontal installations into the side of steel joists, columns, and overhead members. Self-drilling and requiring no predrilling, this zinc-plated carbon steel anchor delivers a fast, reliable fastening solution for pipe hanging, fire protection, electrical conduit, and cable-tray applications in dry, interior, non-corrosive environments.
Key Features
- Threaded anchor for rod-hanging applications in steel members
- Suitable for installation horizontally
- Self-drilling, no predrilling required
- Custom-matched nut driver sets anchor to optimal depth (model RND62 sold separately)
- For 1/4 in. threaded rod with 20 threads per inch
- Anchor size: #12 - 20 x 1-1/2 in.
- Made from zinc-plated carbon steel
Specifications
- Model Number: RSH25112-5
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Bolt/Rod Diameter: 1/4 - 20
- Anchor Size: #12 - 20 x 1-1/2 in.
- Drill Point: #5
- Compatible Member Size (Steel Thickness): 20 ga. - 1/4 in.
- Packaging: Packs of 25 and Cartons of 250
- Country of Origin: Taiwan
Approved Applications
- Horizontal installation into the side of steel joists, columns, and overhead members
- Pipe hanging systems
- Fire protection systems
- Electrical conduit support
- Cable-tray suspension
- Dry, interior, non-corrosive environments only
Frequently Asked Questions
- Does the RSH25112-5 require predrilling before installation?
- No. The RSH25112-5 is a self-drilling anchor, meaning no predrilling is required. It drives directly into steel members for a faster, more efficient installation process.
- What size threaded rod is this hanger compatible with?
- This rod hanger is designed specifically for 1/4 in. threaded rod with 20 threads per inch (1/4 - 20 thread specification).
- What steel thicknesses can the RSH25112-5 be installed into?
- The RSH25112-5 is rated for installation into steel members ranging from 20 gauge up to 1/4 in. thick.
- Is a special tool recommended for setting this anchor to the correct depth?
- Yes. Simpson Strong-Tie recommends using the custom-matched nut driver model RND62 (sold separately) to set the anchor to its optimal depth for a secure, consistent installation.
Note: Product dimensions may differ from picture. Please see the item description above for specifications. Recommended for use in dry, interior, non-corrosive environments only.
