Product Features
Product Description

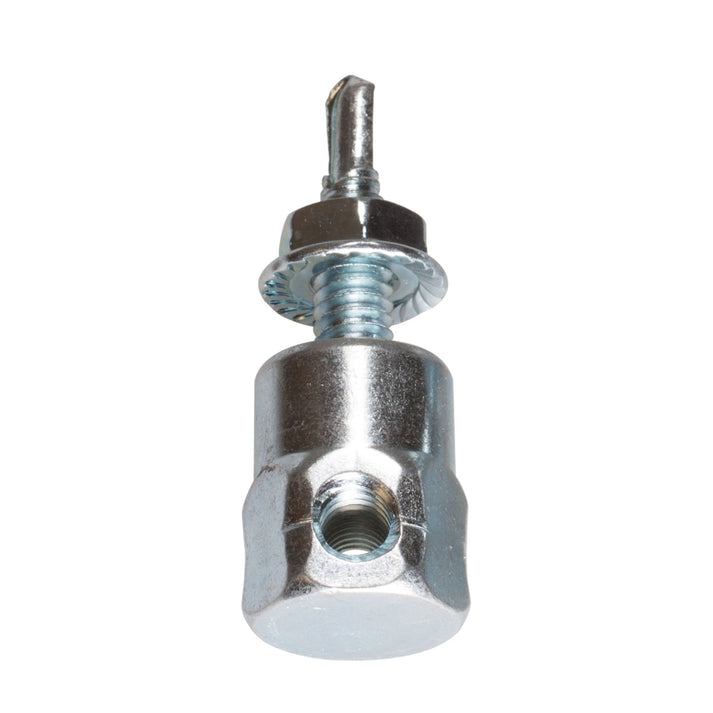

Simpson RSH25100N Steel Rod Hanger 1/4 in. x 1 in. Horizontal Threaded Anchor for 1/4 in. Rod with Nut by Simpson Strong-Tie is a one-piece fastening system engineered for suspending threaded rod in horizontal rod-hanging applications. Designed for installation into the side of steel joists, columns, and overhead members, this self-drilling anchor requires no predrilling and delivers a reliable attachment point for pipe hanging, fire protection, electrical conduit, and cable-tray systems in dry, interior, non-corrosive environments.
Key Features
- Threaded anchor for rod-hanging applications in steel members
- Suitable for installation horizontally
- Self-drilling, no predrilling required
- Custom-matched nut driver sets anchor to optimal depth (model RND62 sold separately)
- For 1/4 in. threaded rod with 20 threads per inch
- Anchor size: 1/4 in. x 1 in.
- Made from zinc-plated carbon steel
Specifications
- Model Number: RSH25100N
- Material: Carbon Steel
- Coating/Finish: Zinc Plated
- Bolt/Rod Diameter: 1/4 - 20 in.
- Anchor Size: 1/4 in. x 1 in.
- Drill Point: #3
- Compatible Steel Member Thickness: 20 ga. - 12 ga.
- Installation Orientation: Horizontal
- Country of Origin: Taiwan
Approved Applications
- Horizontal installation into the side of steel joists, columns, and overhead members
- Pipe hanging systems
- Fire protection systems
- Electrical conduit support
- Cable-tray support applications
- Dry, interior, non-corrosive environments only
What's Included
Each pack contains (25) RSH25100N Horizontal Steel Rod Hanger, Nut included.
Frequently Asked Questions
- Does the Simpson RSH25100N require predrilling before installation?
- No. The RSH25100N is a self-drilling anchor, meaning no predrilling is required. It drives directly into compatible steel members ranging from 20 ga. to 12 ga. in thickness.
- What size threaded rod is this hanger compatible with?
- The RSH25100N is designed specifically for 1/4 in. threaded rod with 20 threads per inch (1/4 - 20). It is not intended for use with 3/8 in. or other rod sizes.
- Is a special tool required to install this rod hanger to the correct depth?
- Yes. Simpson Strong-Tie offers a custom-matched nut driver (model RND62, sold separately) that sets the anchor to its optimal installation depth for best performance.
- Can the RSH25100N be used outdoors or in humid environments?
- No. This anchor is recommended for use in dry, interior, non-corrosive environments only. Its zinc-plated carbon steel construction is not rated for outdoor, wet, or corrosive conditions.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
