Product Description

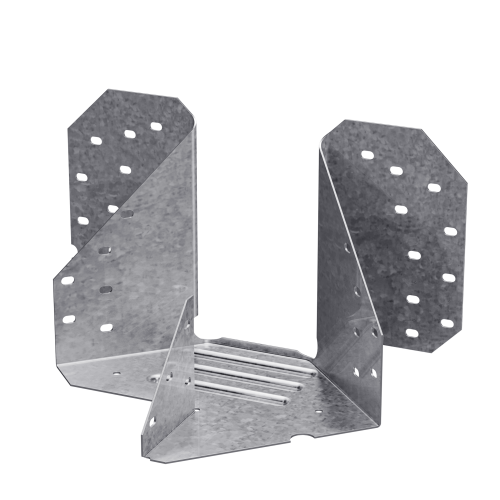

The Simpson THJA26 Multiple-Truss Hip/Jack Hanger is a heavy-duty structural connector from Simpson Strong-Tie engineered to secure hip and jack truss members in roof framing assemblies. Built from 14-gauge steel with a G90 zinc galvanized finish, this hanger delivers the structural reliability that engineers specify and contractors depend on for stronger, safer hip roof construction. Its flexible design handles both standard and double hip configurations, making it a go-to connector for residential and commercial roof framing projects alike.
Key Features
- Accommodates right or left hand hips at 45 deg. skews - a single hanger covers both orientations, reducing the number of different connectors you need to stock on the job site.
- Can be installed before or after the hip and jack - gives framers the flexibility to work the hanger into their sequence without having to re-sequence the entire framing process.
- Compatible with double (terminal) hips - handles multiple truss configurations in one product, eliminating the need for a separate connector when framing terminal hip conditions.
- Made from 14-gauge steel - provides robust load capacity and structural integrity in demanding roof framing applications.
- Zinc galvanized finish (G90) - adds a corrosion-resistant barrier that helps the hanger hold up in moisture-prone environments and extends the service life of the connection.
- Engineer trusted and contractor proven - backed by Simpson Strong-Tie's rigorous engineering and testing standards, so you can build with confidence knowing the connector performs as specified.
Why This Product
- One hanger, multiple applications - the THJA26 handles right-hand hips, left-hand hips, and double terminal hip connections all in one connector, cutting down on job site inventory and simplifying ordering for complex hip roof framing projects.
- Framing-sequence flexibility - because the hanger can go in before or after the hip and jack members, crews are not locked into a rigid installation order, helping keep the framing process moving efficiently.
- Built for long-term performance - the combination of 14-gauge steel construction and G90 zinc galvanized coating means this truss hanger resists corrosion and holds its structural integrity over the life of the roof assembly.
- Tested and trusted by design professionals - Simpson Strong-Tie connectors are engineered and tested to meet the highest quality standards, making the THJA26 the dependable choice for code-compliant hip and jack truss connections in both residential and commercial builds.
Specifications
- Model Number: THJA26
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: Install with 16d common nails and 10d x 1-1/2 in. nails
- Country of Origin: United States
Approved Applications
- Right-hand hip connections at 45 deg. skews
- Left-hand hip connections at 45 deg. skews
- Double (terminal) hip truss connections
- Hip and jack truss framing in residential and commercial roof assemblies
Frequently Asked Questions
Can the THJA26 be used for both right-hand and left-hand hip applications?
Yes. The THJA26 is designed to accommodate both right and left hand hips at 45 deg. skews, making it a highly versatile connector for hip roof framing.
Does the hip or jack truss need to be in place before installing the THJA26?
No. The THJA26 can be installed either before or after the hip and jack members are in place, offering flexibility during the framing process.
What fasteners are required to install the THJA26?
Install with 16d common nails and 10d x 1-1/2 in. nails as specified for this connector.
Is the THJA26 suitable for use with double hips?
Yes. In addition to standard hip and jack applications, the THJA26 can also be used for double (terminal) hips, adding to its versatility on the job site.
